Oldham Caplamps are Hazardous Area Group 1 Mining Caplamps for safe use in underground hazardous location mines and non-hazardous (hard-rock) type mines.

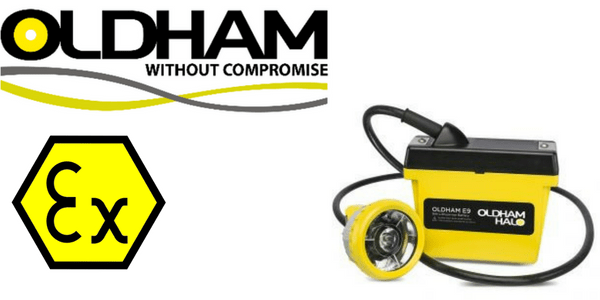

Oldham Caplamp AE9 combines reliability and rugged construction with the latest industry standard A-Series lamp headpiece with the smaller and lighter lithium-ion (li-ion) L9 battery pack.
The Oldham AE9 is not certified against mining safety standards and is therefore only recommended for use in hard-rock mining and tunnelling or other non-hazardous mining applications.
Oldham Caplamp AE9 ATEX Lamps – Features & Benefits
ATEX Mining Caplamps
- Extreme lightweight of the Lithium-ion battery – reduced weight for user to carry, less fatigue.
- Lithium-ion battery does not suffer from “memory effect” – full capacity available every time after recharge.
- Lithium-ion battery has low self-discharge rate – long caplamp shelf life if stored during mine down-time.
- Rugged battery and headpiece design – longer life expectancy, even in the harshest environments.
- Increased safety “M1” hazard certification – Certified for use in M1 recognised hazard environments.
- Maintenance-free battery design – Reduced lamproom maintenance requirements.
- Maintenance-free “A-type” headpiece – No downtime due to maintenance or failed light source.
- 53 lumen output focussed over 4.5 degrees angle – High intensity light concentrated in the operator’s field of vision
- Dual reflector technology – Optimum focus of LED for precise and intense illumination.
- Genuine 3 Watt LED main light source – Greater light output intensity, superior to any competitor.
- Inter-modular battery and lamptop design – fully compatible & interchangeable with other Oldham products.
OLDHAM CAPLAMP AE9 ATEX LAMPS – Technical Specification
| Oldham Caplamp AE9 – Hazardous Area Group 1 Mining M2 ATEX Lamps – “A Type” Headpiece & Cable Specification | |
| Number of LEDs | 2 (1 main, 1 auxiliary) |
| Main LED Rating | 4.1V-3W 53 lumens ~12 hour shift |
| Auxillary LED Rating | 0.08 watts |
| Type of Cable | Flexible twin core short lay polychloroprene sheath |
| Light Output | 1200 lux at 1.0m |
| Max. beam intensity over 4.5º | 10,000cd |
| Angle Over Which Intensity Is Not Less Than 1 Candela | 120º |
| Burning Time With Auxillary Light | 500 hours |
| Fuse Rating | 3A |
| Length of Battery (At Base / At Lid) | 111 / 152mm |
| Height of Battery Terminals / Cover | 95 / 125mm |
| Width of Battery | 55mm |
| Battery Case & Cover Material | Polycarbonate |
| Nominal Battery Voltage | 4.20V |
| Numbers of Cells | 8 |
| Capacity to 3.3 Volts | E9 = 9Ah / E16 = 16 Ah |
| Lamp Weight | AE9 = 0.806kg |
| Maintenance | None – Maintenance Free |
| Charging | Care should be taken to recharge the AE16 lamp with Oldham approved multi-stage micro-processor chargers in order to achieve maximum life and performance. |
| Hazardous Area Classification | TS09ATEX2613 M 1 Ex ia I Tamb = OºC to +40ºC |
OLDHAM CAPLAMP AE9 ATEX LAMPS
Battery & Caplamp PArt Numbers
- E9 Lithium-Ion Battery M456823
- AE9 Lamp (M1 certified safety lamp) M262851
- Single Lamp Charger M656501
- 10-Lamp Charger M656601
Group 1 Mining Lamps
Category M0, M1 & M2 Underground Coal Mining Hazardous Area Location Caplamps
Group 1 mining locations refer to underground coal mining areas and parts of surface mines liable to exposure of firedamp (methane) and/or combustible dusts. The 3 risk levels of explosion protection according to Group 1 are:
- Mining Category M2 Occasional Short Duration Risk
- Mining Category M1 Frequent Risk In Normal Operation
- Mining Category M0 Permanent Risk, Continually Present
