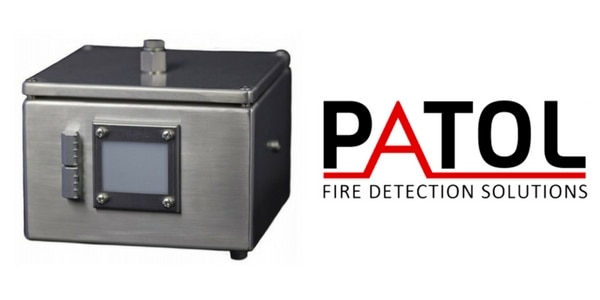

Patol 5000 Flame Sensors – Infrared IR Transit Conveyor Flame Sensors

Patol 5000 flame sensors are part of the heat and flame sensor range of infrared conveyor flame sensors designed to monitor and detect, in the presence of ambient light, transported material temperatures up to 240˚C, products during manufacture or processing such as food, biomass or recycled waste being transported on conveyor systems.

Patol 5000 flame sensors include continuous air purging to maintain an automatic cleaning system that ensures the prevention of dust settling on the sensor lens.

With a single point IR sensor with 90° field of view, the Patol 5000 flame sensor can monitor the full width of the conveyor and will detect and trigger on seeing a small flame of temperatures over 240˚C at conveyor speeds travelling between 0.5 and 6 metres / second.

The unique solar blind sensor with infrared reflective cone optical focus has been created to detect small moving flame within a spectral filter between 4.2 to 4.7µm (narrow band).

heat sensors – Patol 5000 Sensors

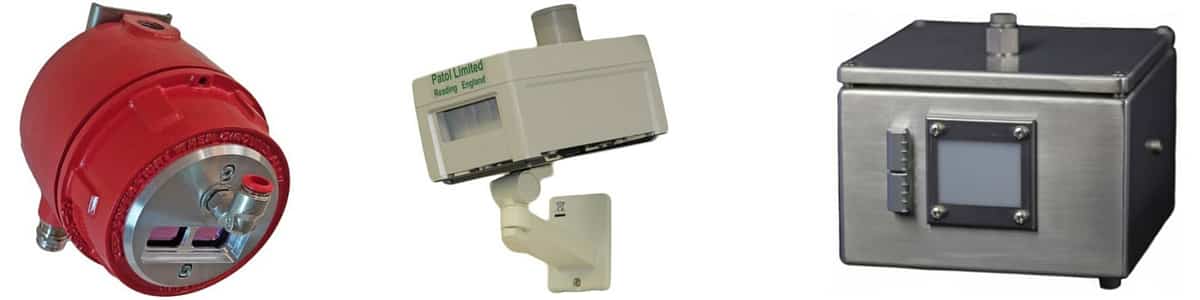

The range of Patol 5000 flame sensors are available including specialist sensors with ATEX certification for hazardous dust environments and glass free Stainless Steel sensors suitable for food processing areas;

Patol 5712

Patol 5710 ATEX & IECEx Certified Heat Sensor

Patol 5730

Hazardous area heat detection & sensing

ATEX & IECEx certified heat sensors

Patol 5000 series flame sensing detectors are suitable for use in many applications throughout many industries. The Patol 5710 flame detector is also certified for installation in ATEX and IECEx rated hazardous areas.

Hazardous area heat detection provides ultimate fire safety for the workforce and workplace in many industries with potentially explosive atmospheres including coal, mining, oil and gas, petrochemical and food processing plants.

Full specification details, technical information and data for Patol 5000 Flame Sensor series are available below – should you require technical support on selecting the correct heat sensor for industrial or hazardous area applications, please call T&D Sales.
