Patol 5410 Heat Sensor – Infrared Transit Heat Sensor (Patol 5000)

Patol 5410 heat sensor

Patol 5410 heat sensor

Patol 5410 infrared conveyor heat detector provides early warning heat sensor and can trigger at temperatures as low as 100°C.

The Patol 5410 incorporates a series of user programmable SIL switches with option selections including detector sensitivity settings, auto/manual reset sequence selection and single / coincidence voting from the two individual internal detectors for the alarm trip and shutdown outputs.

The unit can be used in two principle operating modes. Either relay mode, with its own 24 Vdc power supply or in low power mode (as shown below), see datasheet for further details

Typical applications for the Patol 5410 heat detector include:

  • Conveyors
  • Escalators
  • Drying Lines
  • Sorting Machines
  • Food Processing
  • Baggage Handling
  • Production Lines
  • Warehouse Robots
  • Waste Recycling Conveyors

Patol 5410 Heat Sensor – Product Specifications

Detectors Spectral Filter Sensitivity Transit Speed Sensor Head Temperature Auxiliary Input
2off—Employing reflective cone optical focus system 5 to 14µm wide band 10 to 40µm 0.5 6m/s 1.5Kg (IP66) -20°C to +70°C PSU / Charger etc.

Patol 5410 Heat sensor – key product features

  • Detection of hazards at temperatures below flame point including both embers and buried hot spots.
  • Air purged system for dusty environments with air pressure monitoring.
  • Twin high integrity detection circuit channels for maximum reliability
  • Two wire operation – Powered by direct connection to standard fire trigger circuits or addressable loop interface
  • Single / Coincidence voting output
  • Timed auto reset / coincidence analyser circuit
  • Tuned response — solar blind
  • Volt free relay contact output operation selectable as standard
  • Fault Monitored, with Test & Reset push buttons
  • Field programmable

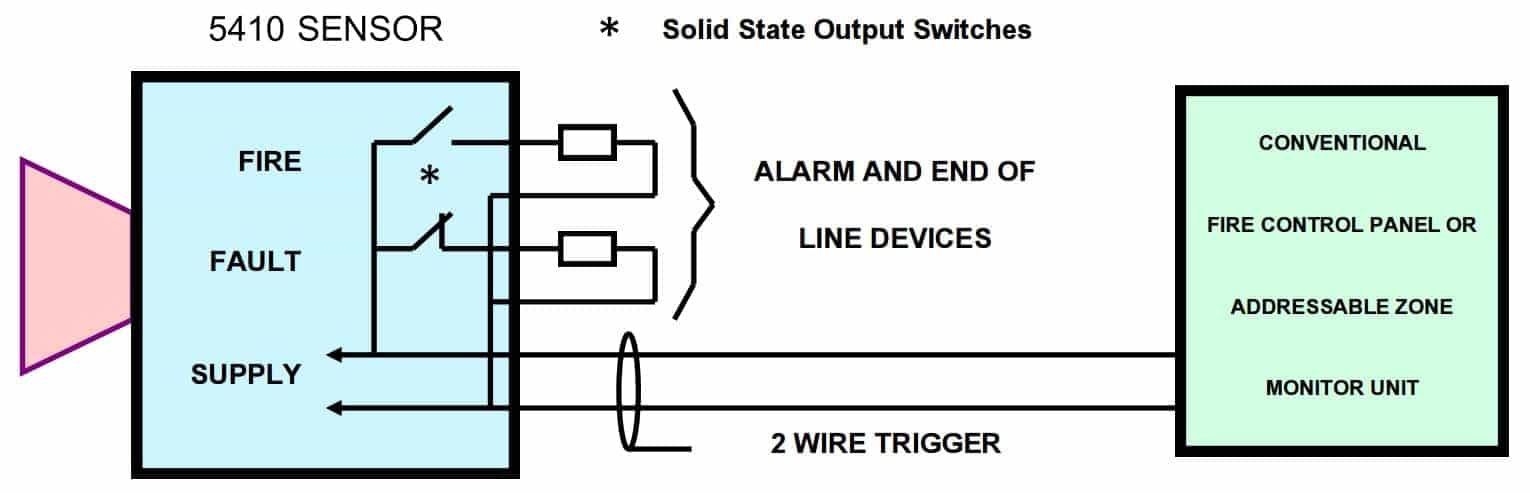

Patol 5410 heat sensor set up

Patol 5410 heat sensor system set up
