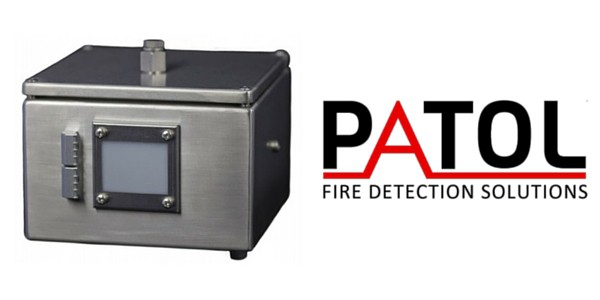

Patol 5712 Heat Sensor – Infrared Transit Flame Sensor (Patol 5000)
Patol 5712 infrared conveyor flame sensor is able to monitor high temperature materials up to 240º on the highest sensitivity.
Typical applications for the Patol 5712 include tobacco processing, drying conveyors, waste drying systems, food processing, radio frequency drying systems and microwave drying systems.
The unique flame detector has enhanced infra red monitoring that has been created in order analysis the levels of IR emission in the narrow band of 4.2-4.7µm.
Patol 5712 Flame Sensor Key Features
- Detection of ember and flame of high temperature product
- Air purged system for dusty environments with air pressure monitoring
- Four channels of detectors to provide maximum reliability
- Alarm and trip functions provide added security
Patol 5712 Flame sensor – product specifications
| Detectors | Spectral Filter | Sensitivity | Transit Speed | Sensor Head | Temperature | Auxiliary Input |
| 4 off Isolated Sensors | 4.2 – 4.7 µm (narrow band) | 4 Levels | 0.5 to 6 m/s | 2.9Kq | 20°C to +70°C | PSU / Charger etc. |
Patol 5712 Heat Sensor – Product Benefits
- Single / Coincidence voting output
- Timed auto reset / coincidence analyser circuit
- Tuned response — solar blind
- Voting Logic & Latching options
- Alarm & Trip Functions
- Fault Monitored, with Test & Reset Push Buttons
- Field Programmable Local Indicators
Patol 5712 Heat Sensor – Diagram Set Up
