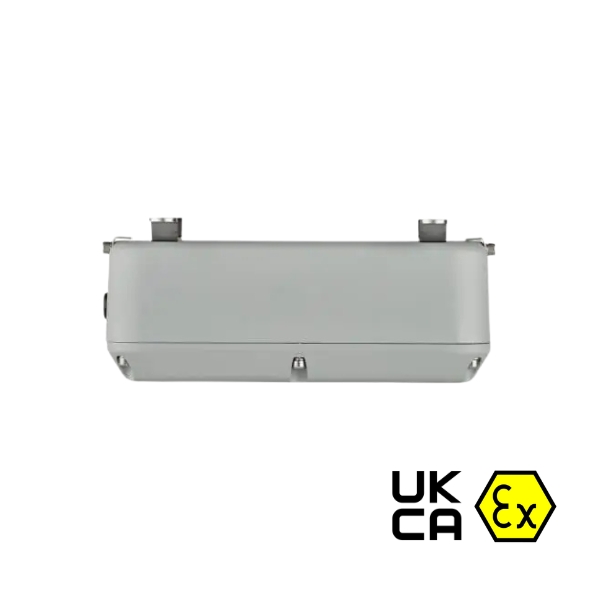

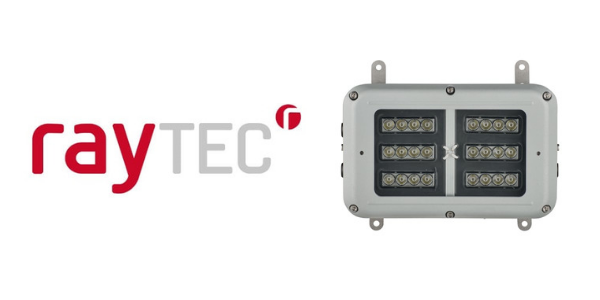

SPX-BL24 | Raytec SPARTAN Bulkhead ATEX Light for Zone 1 & Zone 21

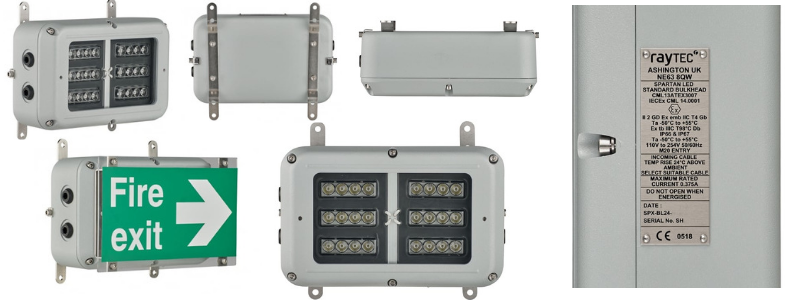

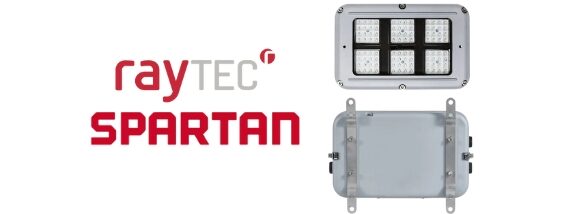

The Raytec SPARTAN SPX-BL24 series of bulkhead light fittings provides robust and energy-efficient ATEX lighting solutions for hazardous areas. Designed and certified for Zone 1 and Zone 21 environments, these UKEX, IECEx and ATEX approved luminaires deliver reliable LED illumination for offshore, petrochemical, refinery and heavy industrial applications where gas and dust risks are present.
Read more…
Engineered with a compact, low-profile design, the SPX-BL24 range is ideal for installations in confined spaces and areas where maintenance access is limited. Each fitting uses long-life, high-output LED technology combined with CoolXtrude™ thermal management to ensure consistent light output and a service life exceeding 10 years. Certified to IP66 and IP67, these luminaires are built to withstand extreme weather conditions, vibration, and corrosion in the harshest hazardous environments.

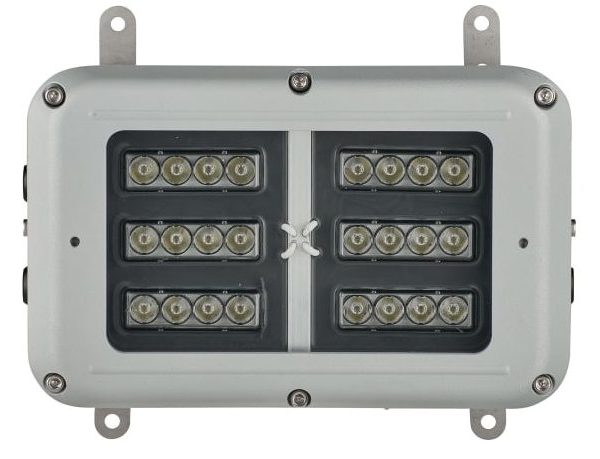

The product family includes the SPX-BL24 standard bulkhead delivering up to 2,500 lumens, and the SPX-BL24-W-EMX25 emergency bulkhead which features an intelligent self-testing emergency system with a tri-colour indicator and up to 3 hours backup duration. This makes it particularly suited for emergency escape routes and safety-critical areas.
Both variants provide versatile mounting options with multiple M20 cable entries and rear cable access, ensuring fast installation and secure protection of cabling. With UK design and manufacture, 5-year warranty, and global certification, the SPARTAN BL24 bulkhead range delivers a dependable, high-efficiency lighting solution for new projects or retrofit of conventional bulkhead fittings.
Need technical guidance or a quotation?
Talk to one of our experts today — we’ll help you get it right the first time.

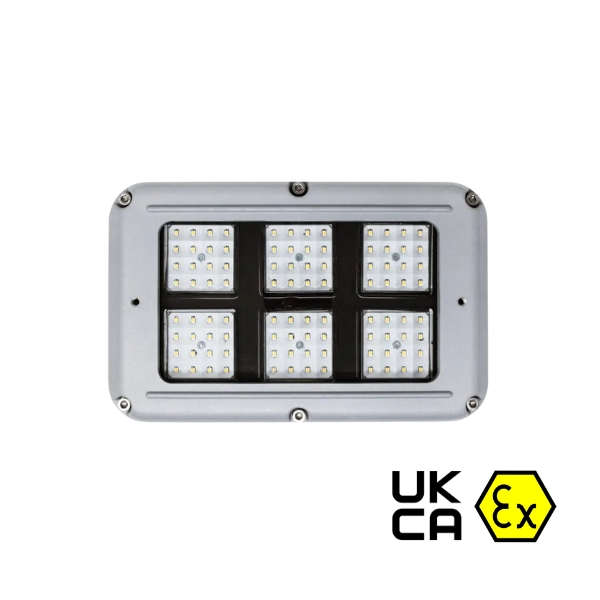

Raytec SPX-BL24 | ATEX Linear Bulkhead Light Zone 1 & Zone 21
Features: Compact, low-profile design for restricted spaces, ATEX, UKEX & IECEx certified, ultra long-life LED technology, CoolXtrude™ thermal management for maximum performance, robust IP66/IP67 protection, 5-year warranty
Standards: II 2 G D, Ex e mb op is IIC T4 Gb, Ex tb op is IIIC T98°C Db, UKCA Approved, Hazardous Area T Rating T4
Performance: Up to 2,500 delivered lumens (circular beam), up to 2,250 lumens (elliptical beam), wide operating temperature -50°C to +55°C (-20°C to +46°C for emergency variants)
Applications: Zone 1 & Zone 21 hazardous area bulkhead lighting, offshore rigs, refineries, chemical plants, confined spaces, retrofit or new installations

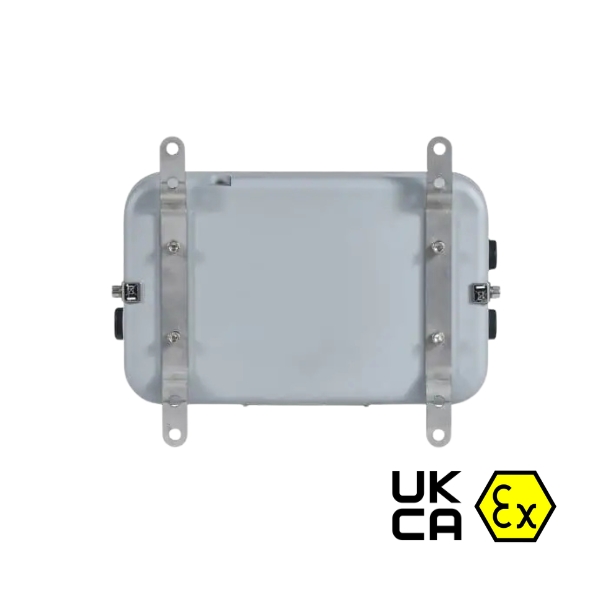

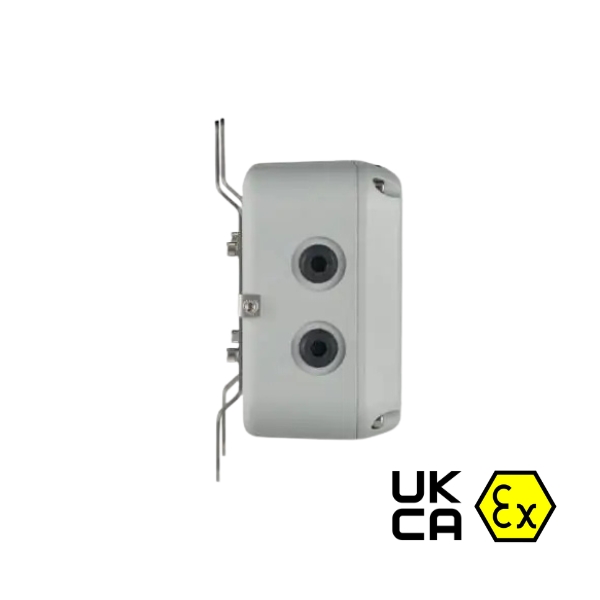

Installation: Compact body with 4×M20 entries (supplied with 3× blanking plugs), rear cable entry for protection, easy to install & maintain
SPX-BL24 Technical Specifications
| Certification |
ATEX, UKCA & IECEx Zone 1 (Gas) & Zone 21 (Dust) |
| Beam Angles |
Circular: 10°x10°, 30°x30°, 50°x50°, 80°x80°, 120°x120° (10×10 upgradable to VARIO)
Elliptical: 35°x10°, 60°x25°, 80°x30°, 120°x50° (VARIO interchangeable) |
| Input |
Mains 110–254V AC 50/60Hz; LV 18–48V AC / 18–69V DC; ELV 12V AC/DC |
| Beam Shape |
Elliptical (VARIO lens system) or Circular (fixed) |
| Consumption |
20W |
| LED Type |
Platinum SMT LEDs (24 LEDs) |
| Power Output |
2,500 lm (circular) / 2,250 lm (elliptical) |
| Wavelength |
White-light (6,500K+) |
| IP Rating |
IP66 & IP67 |
| Temperature Range |
-50°C to +55°C (-20°C to +46°C emergency) |
| Cable Entries |
4×M20 (supplied with 3× approved blanking plugs) |
| Weight |
5kg (11.0 lbs) |
| Unit Colour |
Silver (RAL 9006) |

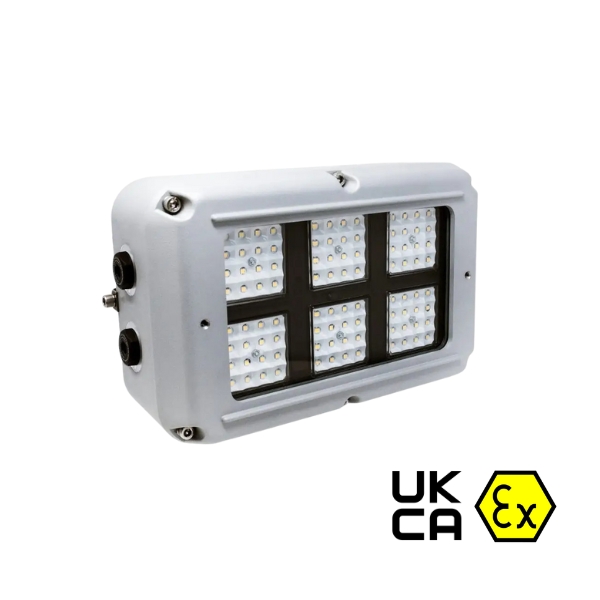

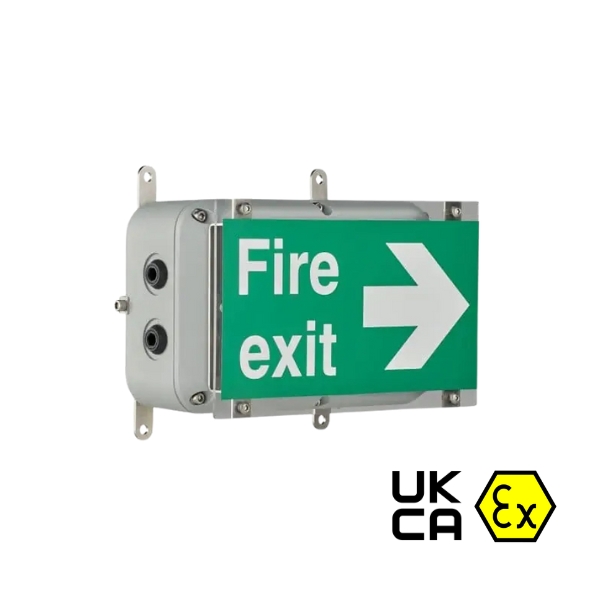

Raytec SPX-BL24-W-EMX25 | ATEX Emergency Bulkhead Light Zone 1 & Zone 21
Features: Emergency ‘self-test’ functionality with intelligent battery monitoring, ATEX, UKEX & IECEx certified, compact low-profile body for confined spaces, ultra long-life LED with thermal management for 10+ year lifetime, high lumen output up to 2,500 lm, IP66/IP67 protection, 5-year warranty
Standards: II 2 G D, Ex e mb op is IIC T4 Gb, Ex tb op is IIIC T98°C Db, UKCA Approved, Hazardous Area T Rating T4
Performance: Up to 2,500 delivered lumens, wide operating temperature -20°C to +46°C (emergency variant), emergency duration up to 3 hours at 25% output with self-test system
Applications: Zone 1 & Zone 21 hazardous area lighting, offshore platforms, refineries, petrochemical plants, emergency escape routes, confined spaces
Installation: Rear cable entries for protection, compact body with multiple M20 entries, supplied with blanking plugs, simple to install and maintain
SPX-BL24-W-EMX25 Technical Specifications
| Certification |
ATEX, UKCA & IECEx Zone 1 (Gas) & Zone 21 (Dust) |
| Beam Angles |
Circular: 10°x10°, 30°x30°, 50°x50°, 80°x80°, 120°x120° (10×10 upgradable to VARIO)
Elliptical: 35°x10°, 60°x25°, 80°x30°, 120°x50° (VARIO interchangeable) |
| Input |
Mains 110–254V AC 50/60Hz; LV 18–48V AC / 18–69V DC; ELV 12V AC/DC |
| Beam Shape |
Elliptical (VARIO lens system) or Circular (fixed) |
| Consumption |
34W |
| LED Type |
Platinum SMT LEDs (24 LEDs) |
| Power Output |
Up to 2,500 lm |
| Wavelength |
White-light (6,000K+) |
| IP Rating |
IP66 & IP67 |
| Temperature Range |
-20°C to +46°C (emergency variant) |
| Emergency Function |
Self-testing intelligent emergency with tri-colour health indicator |
| Emergency Duration |
Up to 3 hrs @ 25% output (other options available) |
| Emergency Battery |
2.5 Ah (20 hr charge time) |
| Unit Colour |
Silver (RAL 9006) |
SPX-BL24 Additional Information

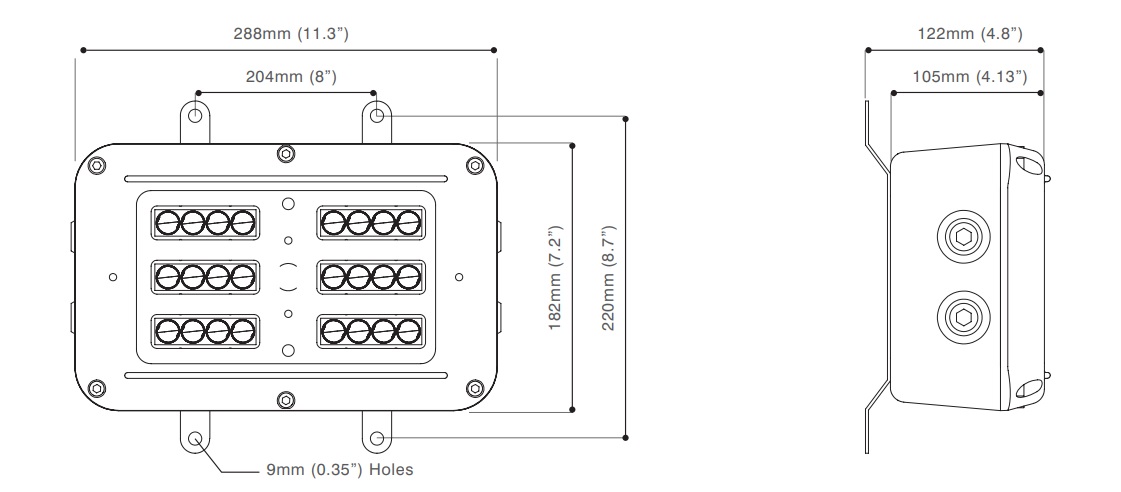

SPX-BL24 Dimensions
Technical dimension drawings for the Raytec SPARTAN SPX-BL24 Bulkhead LED ATEX Light Fittings. These diagrams show standard, emergency, and retrofit options.
- Body: 289 × 220 mm (11.37″ × 8.66″)
- End: 123 mm (6.9″ x 4.6″)
- Holes Diameter: ⌀ 8 mm (0.31″)
Raytec SPX-BL24 Zone 1 & Zone 21 Bulkhead Product Codes | Circular Beam Pattern
| SPX-BL24-W-1010 |
SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 10°x10° beam |
| SPX-BL24-W-1010-EMX25 |
SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 10°x10° beam – Intelligent Emergency Variant (25% Output) |
| SPX-BL24-W-3030 |
SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 30°x30° beam |
| SPX-BL24-W-3030-EMX25 |
SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 30°x30° beam – Intelligent Emergency Variant (25% Output) |
| SPX-BL24-W-5050 |
SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 50°x50° beam |
| SPX-BL24-W-5050-EMX25 |
SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 50°x50° beam – Intelligent Emergency Variant (25% Output) |
| SPX-BL24-W-8080 |
SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 80°x80° beam |
| SPX-BL24-W-8080-EMX25 |
SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 80°x80° beam – Intelligent Emergency Variant (25% Output) |
| SPX-BL24-W-120120 |
SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 120°x120° beam |
| SPX-BL24-W-120120-EMX25 |
SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 120°x120° beam – Intelligent Emergency Variant (25% Output) |
Intelligent Emergency variant available – add -EMX25 to the above codes
18–69V variants available – add -LV to the above codes
12V variants available – add -ELV to the above codes
For options fitted with photocell add -PC to the above codes
Contact T&D for T5 variants
Raytec SPX-BL24 Zone 1 & Zone 21 Bulkhead Product Codes | Elliptical Beam Pattern
| SPX-BL24-W-3510 |
SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 35°x10° beam |
| SPX-BL24-W-3510-EMX25 |
SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 35°x10° beam – Intelligent Emergency Variant (25% Output) |
| SPX-BL24-W-6025 |
SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 60°x25° beam |
| SPX-BL24-W-6025-EMX25 |
SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 60°x25° beam – Intelligent Emergency Variant (25% Output) |
| SPX-BL24-W-8030 |
SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 80°x30° beam |
| SPX-BL24-W-8030-EMX25 |
SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 80°x30° beam – Intelligent Emergency Variant (25% Output) |
| SPX-BL24-W-12050 |
SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 120°x50° beam |
| SPX-BL24-W-12050-EMX25 |
SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 120°x50° beam – Intelligent Emergency Variant (25% Output) |
Intelligent Emergency variant available – add -EMX25 to the above codes
18–69V variants available – add -LV to the above codes
12V variants available – add -ELV to the above codes
For options fitted with photocell add -PC to the above codes
Contact T&D for T5 variants
