SPX-BL24-W-EMX25 | ATEX Bulkhead Light | Zone 1 Emergency Bulkhead Light Hazardous Area

ATEX Bulkhead Light Zone 1 Emergency Bulkhead Light Hazardous Area | SPX-BL24-W-EMX25

ATEX Bulkhead Light Zone 1 Emergency Bulkhead Light Hazardous Area | SPX-BL24-W-EMX25

ATEX Bulkhead Light

Raytec SPX-BL24-W-EMX25 | Emergency Bulkhead Light Zone 1 & Zone 21 2,500 Lumens

Zone 1 Bulkhead Lights ATEX, UKEX & IEC Ex Rated for Gas & Dust Explosive Atmospheres

Hazardous Area Rating: Zone 1 – Gas & Dust

Zone 1 Gas

  • II 2 G D
  • Ex e mb op is IIC T4 Gb
  • Ta= Up to -52°C to +55°C (-20°C to +46°C for emergency variants)

Hazardous Area T Rating – T4

Zone 21 Dust

  • Ex tb op is IIC T98°C Db
  • Ta= Up to -52°C to +55°C (-20°C to +46°C for emergency variants)
  • IP66 & IP67

SPARTAN Bulkhead range of Zone 1 bulkhead lights form part of the ATEX Lighting range manufactured by Raytec and are designed for hazardous areas which require high performance, high reliability and white-light illumination in potentially explosive atmospheres.

The SPX-BL24-W-EMX25 Emergency Bulkhead lights are globally certified to Zone 1 offering long-life LED technology its compact, low profile design is ideal for restricted space applications, and also allows easy access to the back of the unit with rear cable entries to hide and protect cables from damage.

This ‘Intelligent Emergency’ variant also self-tests the emergency battery to proactively monitor and maintain the overall health status of the luminaire and communicates via a tri- colour indicator.

The hazardous area lighting has thermal management technology ensures a lifetime of 10 years+ while providing a lumen output of up to 2,500 delivered lumens. All SPARTAN luminaires come with an industry leading 5 year warranty.

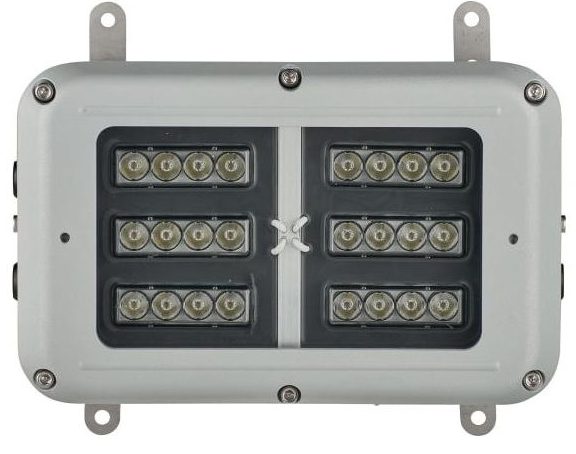

Raytec Spartan BL24 Zone 1 Bulkhead Light Hazardous Area 2,500 Lumens

Raytec Spartan BL24 Zone 1 Emergency Bulkhead Light Hazardous Area | SPX-BL24-W-EMX25

Zone 1 Bulkhead Lights

Features & Benefits

ATEX Bulkhead Light

ATEX Bulkhead Light

  • Raytec Part Number – SPX-BL24-W-EMX25
  • ATEX & IEC Ex approved – Zone 1 (Gas) & Zone 21 (Dust)
  • UKCA approved
  • Ultra Long Life LED
  • High Lumen Output LED
  • Compact, Low Profile Design
  • Easy Installation and Maintenance
  • Wide Operating Temp -20° to +46°
  • Zone 2 Variants available
  • 5 Year Warranty
  • UK Designed and Manufactured
Raytec Spartan ATEX Bulkhead Lights

Raytec Spartan ATEX Emergency Bulkhead Lights

Zone 1 Bulkhead Light - Product Dimensions

Zone 1 Bulkhead Light – Product Dimensions

SPARTAN Bulkhead BL24 Zone 1

SPARTAN Bulkhead BL24 Zone 1

Raytec SPARTAN Bulkhead Light

Technical Specification

Certification: ATEX UKCA and IEC Ex rated for Gas and Dust Zone 1 (Gas), Zone 21(Dust)
Beam Angles: 10°x10°, 30°x30°, 50°x50°, 80°x80° or 120°x120° (10×10 option can be upgraded to Vario Technology) – Circular
35°x10°, 60°x25°, 80°x30° or 120°x50° (VARIO) – Ellipitical
Input: Mains Voltage 110-254V 50/60 Hz AC only
Low Voltage Option 18-48V AC/ 18-69V DC and Extra Low Voltage Option 12V AC/DC
Beam Shape:
 Elliptical or Circular
Beam Angle System: VARIO interchangeable lens system (elliptical) / Fixed (circular)
Consumption: 34W
LED Type: Platinum SMT LEDs
Number of LEDs: 24
Power Output: Up to 2,500lm
Wavelength: White-Light (6,000K+)
IP Rating: IP66 and IP67
Temperature Range: -20°C to +46°C
Emergency Function: Self testing intelligent emergency
System Health Indicator: Tri-colour LED indicator
Emergency Duration: Up to 3hrs @ 25% power Other options available
Emergency Battery: 2.5 Ah
Emergency Charge Time:
 20 hours



Light Fittings Dimensions

Standard

Metric – 288 x 220 x 122mm
Imperial – 11.3 x 8.7 x 4.8”



Zone 1 Bulkhead Lights Product Codes

Circular beam pattern

SPX-BL24-W-1010-EMX25 SPARTAN Bulkhead, 24 LED, White-Light, 10°x 10° beam
SPX-BL24-W-3030-EMX25 SPARTAN Bulkhead, 24 LED, White-Light, 30°x 30° beam
SPX-BL24-W-5050-EMX25 SPARTAN Bulkhead, 24 LED, White-Light, 50°x 50° beam
SPX-BL24-W-120120 SPARTAN Bulkhead, 24 LED, White-Light, 120°x 120° beam
  1. Intelligent Emergency variant available, add -EMX25 to the above codes
  2. 18-69V variants available, add -LV to the above codes
  3. 12V variants available, add -ELV to the above codes
  4. For options fitted with photocell add ‘-PC’ to the above codes
  5. Contact T&D for T5 variants

Zone 1 Bulkhead Lights Product Codes

Elliptical beam pattern

SPX-BL24-W-3510-EMX25 SPARTAN Bulkhead, 24 LED, White-Light, 35°x 10° beam
SPX-BL24-W-6025-EMX25 SPARTAN Bulkhead, 24 LED, White-Light, 60°x 25° beam
SPX-BL24-W-8030-EMX25 SPARTAN Bulkhead, 24 LED, White-Light, 80°x 30° beam
SPX-BL24-W-12050-EMX25 SPARTAN Bulkhead, 24 LED, White-Light, 120°x 50° beam
  1. Intelligent Emergency variant available, add -EMX25 to the above codes
  2. 18-69V variants available, add -LV to the above codes
  3. 12V variants available, add -ELV to the above codes
  4. For options fitted with photocell add ‘-PC’ to the above codes
  5. Contact T&D for T5 variants
ATEX Lighting Hazardous Area Lighting Zone 1 Zone 2 ATEX

ATEX Lighting manufactured by Raytec for use in Zone 1 and Zone 2 hazardous areas – this includes floodlights, linear light fittings, bulkheads and high bay lighting for explosion protection concepts including Ex d Flameproof and Ex e Explosion Proof applications.
