Raytec SPX-WL168-ho

Linear Light Fitting Zone 1 & Zone 21 12,260 Lumens

Zone 1 Light Fittings ATEX, UKEX & IEC Ex Rated for Gas & Dust Explosive Atmospheres

SPARTAN Linear High Output range of Zone 1 light fittings form part of the ATEX Lighting range manufactured by Raytec and are designed for new hazardous area installations or to retrofit existing fluorescent installations offering twice the lumen output than the standard SPARTAN Linear whilst retaining the same lighting look and feel.

The increase in power means fewer luminaires are required across an installation when compared to traditional Linear fittings, while SPARTAN Linear High Output can also be utilised as a cost-effective alternative to low bay luminaires.

The SPX-WL168-HO light fittings are globally certified to Zone 1 offering long-life LED technology.

Hazardous Area Rating: Zone 1 – Gas & Dust

Zone 1 Gas

• II 2 G D
• Ex eb mb IIC T4 Gb
• Ta= -40°C to+60°C

Zone 21 Dust

• Ex tb IIIC T80°C Db
• Ta= -40°C to+60°C

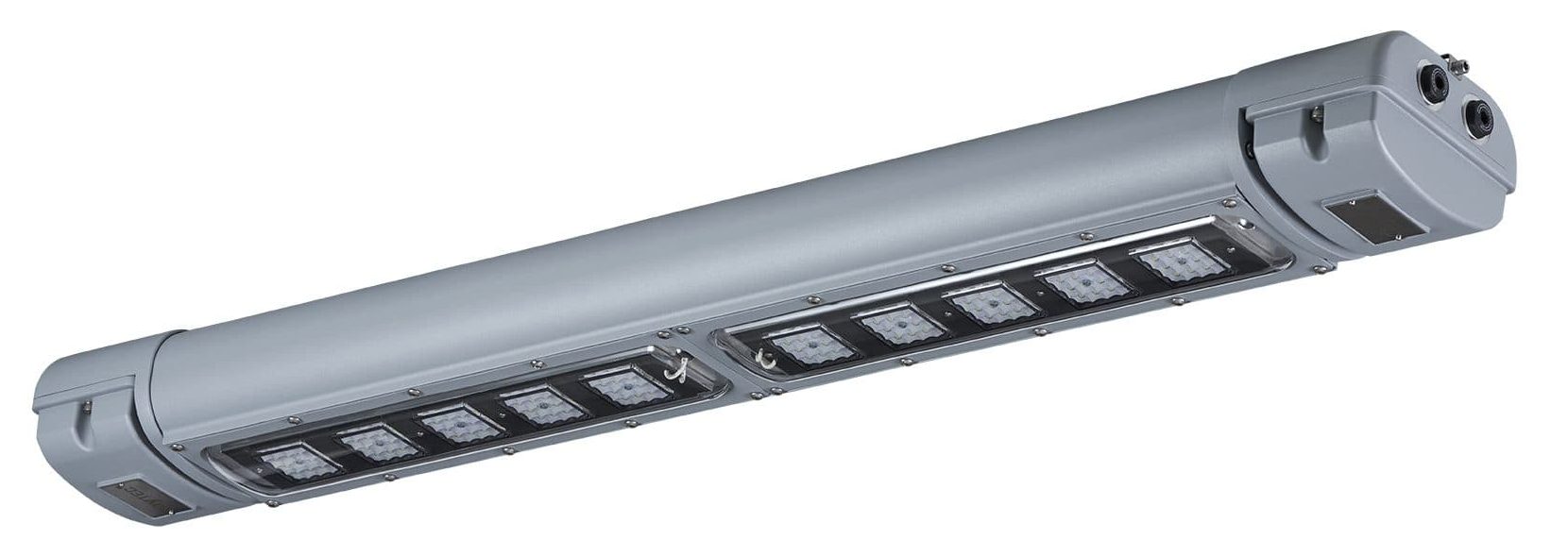

SPARTAN Linear SPX-WL168-HO

SPX-WL168-HO Features

SPARTAN Linear has been designed to provide extreme levels of durability and features a unique modular design which makes maintenance quick and easy.

All SPARTAN luminaires are designed and manufactured in the UK and come with an industry-leading 5-year warranty.

Modular Design

Key components such as the LED and PSU modules are easily accessible for straightforward maintenance and inspection.

Retrofittable

Linear High Output version has been designed with the same dimensions, fixing centres and cable entries as traditional fluorescent fittings making it a direct replacement.

Power & Performance

High lumen output up to 12 kilolumens and a range of beam patterns to effectively light up large open areas offering a better output than the standard linear version.

Bespoke LED

Raytec are specialists in LEDs and all their products are designed around LEDs with bespoke housing for optimum performance and reliability.

Robust and Durable

Housed in marine grade aluminium with stainless steel fasteners and brackets, SPARTAN Linear is IP66 and IP67 rated and can survive in the most extreme environments.

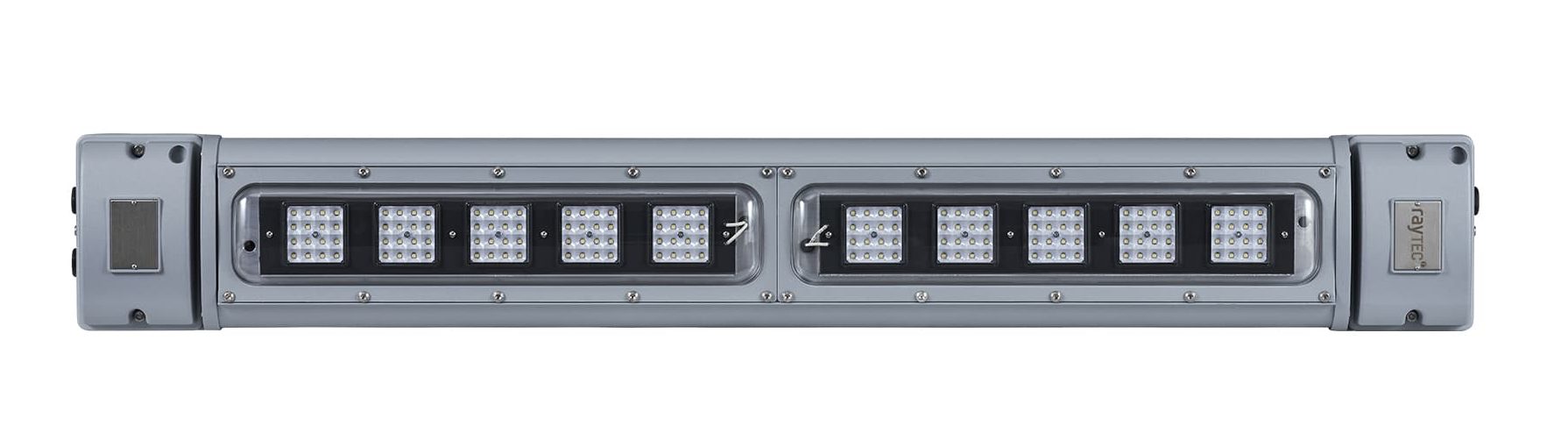

SPARTAN Linear WL168 High Output

ZONE 1 LIGHT FITTINGS

FEATURES & BENEFITS

• Raytec Part Number – SPX-WL168-HO
• ATEX & IEC Ex approved – Zone 1 (Gas) & Zone 21 (Dust)
• UKCA approved
• Ultra Long Life LED
• High Lumen Output LED
• Fully Retrofittable
• Easy Installation and Maintenance
• Wide Operating Temp -40° to +60°
• Zone 2 Variants available
• 5 Year Warranty
• UK Designed and Manufacture

Raytec Spartan ATEX Light Fittings

Choice of Optics

Available with a choice of different optics to suit a wide range of applications, including asymmetric patterns for aisle, corridor and perimeter installations.

SPX-WL84-HO Standard Optics

SPX-WL84-HO Symmetrical Optics

SPX-WL84-HO Asymmetrical Optics

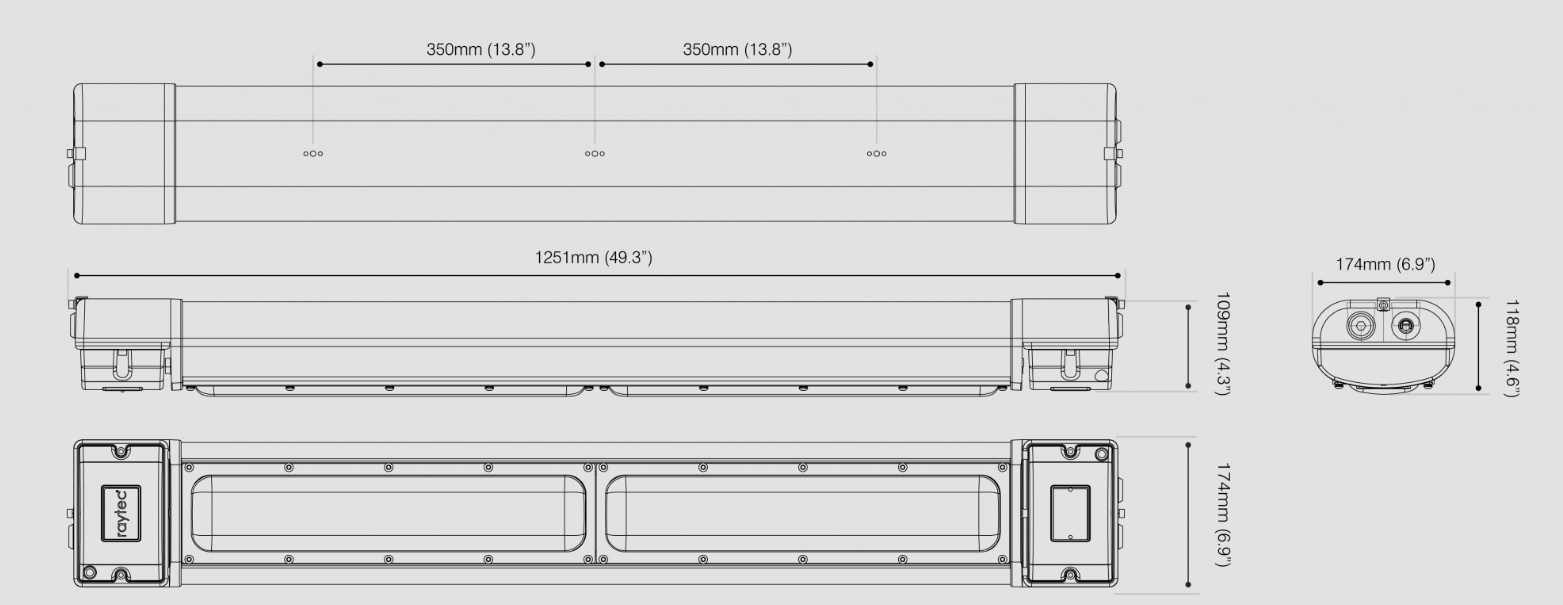

Zone 1 Light Fittings – Product Dimensions

RAYTEC SPARTAN LIGHT FITTINGS

TECHNICAL SPECIFICATION

SPX-WL168-HO Specification

ATEX Lighting manufactured by Raytec for use in Zone 1 and Zone 2 hazardous areas – this includes floodlights, linear light fittings, bulkheads and high bay lighting for explosion protection concepts including Ex d Flameproof and Ex e Explosion Proof applications.
