SPZ-BL24 | Raytec SPARTAN Bulkhead ATEX Light for Zone 2 & Zone 22

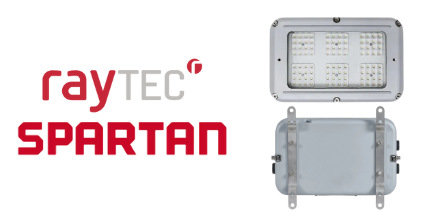

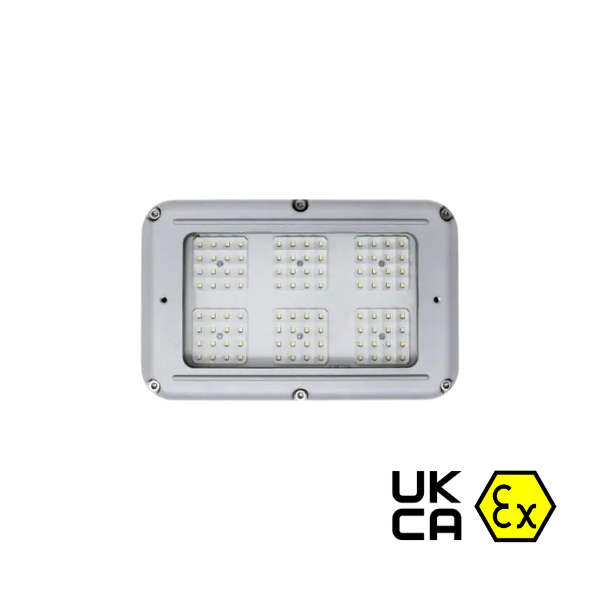

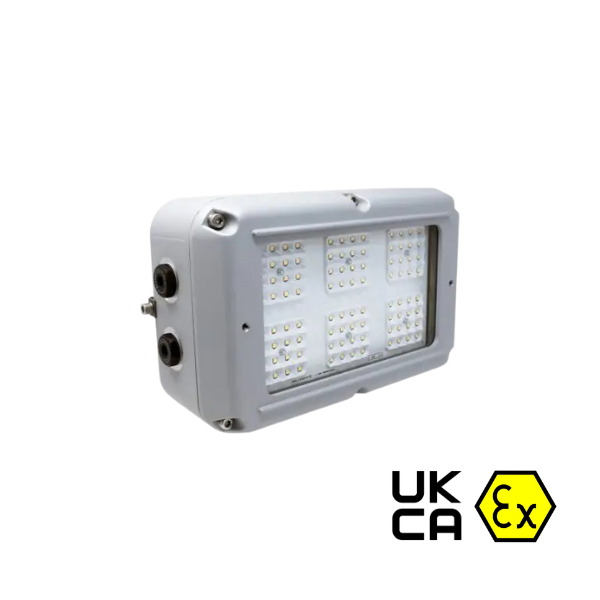

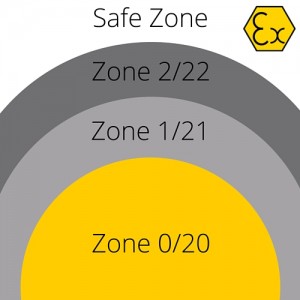

The Raytec SPARTAN SPZ-BL24 series of bulkhead light fittings provides robust and energy-efficient ATEX lighting solutions for hazardous areas. Designed and certified for Zone 2 and Zone 22 environments, these UKEX, IECEx and ATEX approved luminaires deliver reliable LED illumination for industrial, petrochemical, and heavy-duty installations where gas and dust risk exist.
Read more…
Engineered with a compact, low-profile design, the SPZ-BL24 range is ideal for installations in confined spaces and areas where maintenance access is limited. Each fitting uses long-life, high-output LED technology combined with CoolXtrude™ thermal management to ensure consistent light output and a service life exceeding 10 years. Certified to IP66 and IP67, these luminaires are built to withstand extreme weather conditions, vibration, and corrosion in the harshest hazardous environments.
The product family includes the SPZ-BL24 standard bulkhead delivering up to 2,750 lumens, and the SPZ-BL24-W-EMX25 emergency bulkhead which features an intelligent self-testing emergency system with a tri-colour indicator and up to 3 hours backup duration. This makes it particularly suited for emergency escape routes and safety-critical areas.
Both variants provide versatile mounting options with multiple M20 cable entries and rear cable access, ensuring fast installation and secure protection of cabling. With UK design and manufacture, 5-year warranty and global certification. The SPARTAN BL24 bulkhead range delivers a dependable, high-efficiency lighting solution for new projects or retrofit of conventional bulkhead fittings.
Need technical guidance or a quotation?
Talk to one of our experts today — we’ll help you get it right the first time.
Raytec SPZ-BL24 | ATEX Linear Bulkhead Light Zone 2 & Zone 22
Features: ATEX, UKEX & IECEx certified, UL/CSA including C1D2, ultra long-life LED, retrofit-ready for 2×18W fluorescents, CoolXtrude™ thermal management for maximum performance, robust IP66/IP67 protection, 5-year warranty
Standards: II 3 G D, Ex nA mc op is IIC T4 Gc, Ex tc op is IIIC T80°C Dc, UKCA Approved, Hazardous Area T Rating T4 (T6 on request)
Performance: Up to 3,524 delivered lumens, wide operating temperature -40°C to +60°C (-20°C to +50°C for emergency variants)
Applications: Zone 2 & Zone 22 hazardous area lighting, offshore platforms, refineries, chemical plants, retrofit or new installations
Installation: Same footprint, fixing centres & gland entries as common 2×18W fluorescents; easy to install & maintain
SPZ-BL24 Technical Specifications
| Certification |
ATEX & IECEx Zone 2/22 Gas and Dust, UL/CSA inc. C1D2, UKCA approved |
| Beam Angles |
120°, equivalent to 2×18W T8 fluorescent |
| Input |
Mains 110–254V AC 50/60Hz; LV option 18–48V AC / 18–69V DC; ELV option 12V AC/DC |
| Consumption |
24W |
| LED Type |
Platinum SMT LEDs (80 LEDs) |
| Power Output |
Up to 3,524 lm |
| Wavelength |
White-light (6,000K+) |
| IP Rating |
IP66 & IP67 |
| IK Rating |
IK10 |
| Temperature Range |
-50°C to +55°C (-20°C to +46°C emergency) |
| Cable Entries |
4×M20 (supplied with 3× approved blanking plugs) |
| Weight |
6kg (13.2 lbs) |
| Unit Colour |
Silver (RAL 9006) |
Raytec SPZ-BL24-EMX25 | ATEX Emergency Bulkhead Light Zone 2 & Zone 22
Features: Emergency ‘self-test’ functionality with intelligent battery monitoring, ATEX, UKEX & IECEx certified, compact low-profile body for confined spaces, ultra long-life LED with thermal management for 10+ year lifetime, high lumen output up to 2,426 lm, IP66/IP67 protection, 5-year warranty
Standards: II 3 G D Ex ec mc IIC T4 Gc, Ex tc IIIC T98°C Dc, UKCA Approved, Hazardous Area T Rating T4
Performance: Up to 2,426 delivered lumens, wide operating temperature -50°C to +55°C (emergency variant), duration up to 3 hours at 25% output with self-test system
Applications: Zone 2 & Zone 22 hazardous area lighting, offshore platforms, refineries, petrochemical plants, emergency escape routes, confined spaces

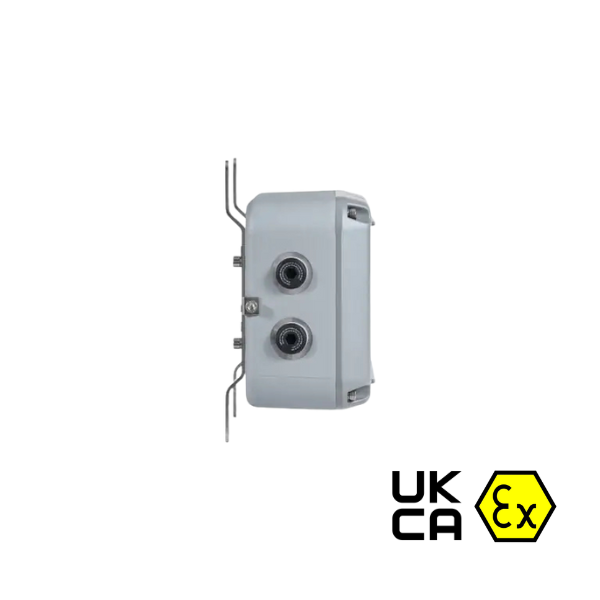

Installation: Rear cable entries for protection, compact body with multiple M20 entries, supplied with blanking plugs, simple to install and maintain
SPZ-BL24-EMX25 Technical Specifications
| Certification |
ATEX, UKCA & IECEx Zone 2 (Gas) & Zone 22 (Dust) |
| Beam Angles |
Circular: 10°x10°, 30°x30°, 50°x50°, 80°x80°, 120°x120° (10×10 upgradable to VARIO)
Elliptical: 35°x10°, 60°x25°, 80°x30°, 120°x50° (VARIO interchangeable) |
| Input |
Mains 110–254V AC 50/60Hz; LV 18–48V AC / 18–69V DC; ELV 12V AC/DC |
| Beam Shape |
Elliptical (VARIO lens system) or Circular (fixed) |
| Consumption |
24W |
| LED Type |
Platinum SMT LEDs (24 LEDs) |
| Power Output |
2,500 lm – circular beam patterns
2,250 lm – elliptical beam patterns |
| Wavelength |
White-light (6,000K+) |
| IP Rating |
IP66 & IP67 |
| Temperature Range |
– 20°C to + 46°C |
| Emergency Function |
Self-testing intelligent emergency with tri-colour health indicator |
| Emergency Duration |
Up to 3 hrs @ 25% output (other options available) |
| Emergency Battery |
2.5 Ah (20 hr charge time) |
| Unit Colour |
Silver (RAL 9006) |
SPZ-BL24 Additional Information
SPZ-BL24 Dimensions
- Body / overall: 288 × 220 mm (11.3″ × 8.7″)
- Depth / end profile: 122 mm (4.8″)
- Fixing holes / diameter: Ø 9 mm (0.35″) approx.
SPZ-BL24 Zone 2 / 22 Bulkhead Product Codes | Circular Beam Pattern
| SPZ-BL24-W-1010 |
SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 10°×10° beam |
| SPZ-BL24-W-1010-EMX25 |
SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 10°×10° beam – Intelligent Emergency Variant (25% Output) |
| SPZ-BL24-W-3030 |
SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 30°×30° beam – Medium circular beam |
| SPZ-BL24-W-3030-EMX25 |
SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 30°×30° beam – Intelligent Emergency Variant (25% Output) |
| SPZ-BL24-W-5050 |
SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 50°×50° beam – Wide circular beam |
| SPZ-BL24-W-5050-EMX25 |
SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 50°×50° beam – Intelligent Emergency Variant (25% Output) |
| SPZ-BL24-W-8080 |
SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 80°×80° beam – Extra-wide circular beam |
| SPZ-BL24-W-8080-EMX25 |
SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 80°×80° beam – Intelligent Emergency Variant (25% Output) |
| SPZ-BL24-W-120120 |
SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 120°×120° beam – Ultra-wide circular beam |
| SPZ-BL24-W-120120-EMX25 |
SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 120°×120° beam – Intelligent Emergency Variant (25% Output) |
12V variants available – add -ELV
For options with photocell, add -PC
Raytec SPZ-BL24 Zone 2 & Zone 22 Bulkhead Product Codes | Elliptical Beam Pattern
| SPZ-BL24-W-2010 |
SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 20°×10° beam – Narrow elliptical beam for focused illumination |
| SPZ-BL24-W-2010-EMX25 |
SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 20°×10° beam – Intelligent Emergency Variant (25% Output) |
| SPZ-BL24-W-4010 |
SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 40°×10° beam – Medium elliptical beam for directional lighting |
| SPZ-BL24-W-4010-EMX25 |
SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 40°×10° beam – Intelligent Emergency Variant (25% Output) |
| SPZ-BL24-W-6015 |
SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 60°×15° beam – Wide elliptical beam for uniform area coverage |
| SPZ-BL24-W-6015-EMX25 |
SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 60°×15° beam – Intelligent Emergency Variant (25% Output) |
| SPZ-BL24-W-8015 |
SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 80°×15° beam – Extra-wide elliptical beam for broad linear illumination |
| SPZ-BL24-W-8015-EMX25 |
SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 80°×15° beam – Intelligent Emergency Variant (25% Output) |
12V variants available – add -ELV
For options with photocell, add -PC
