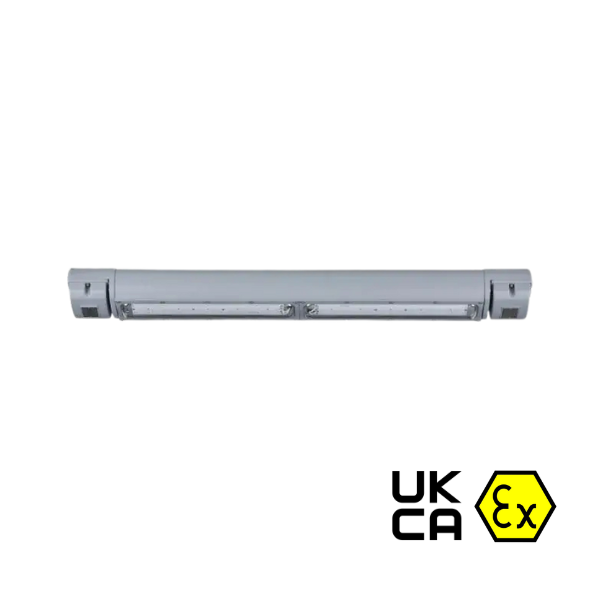

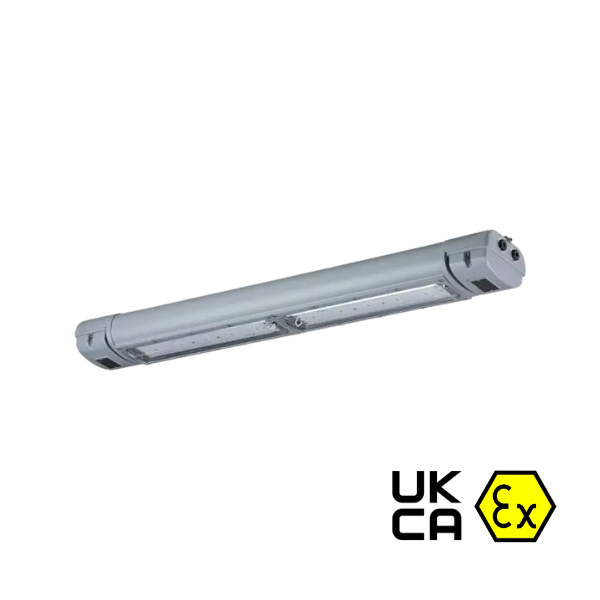

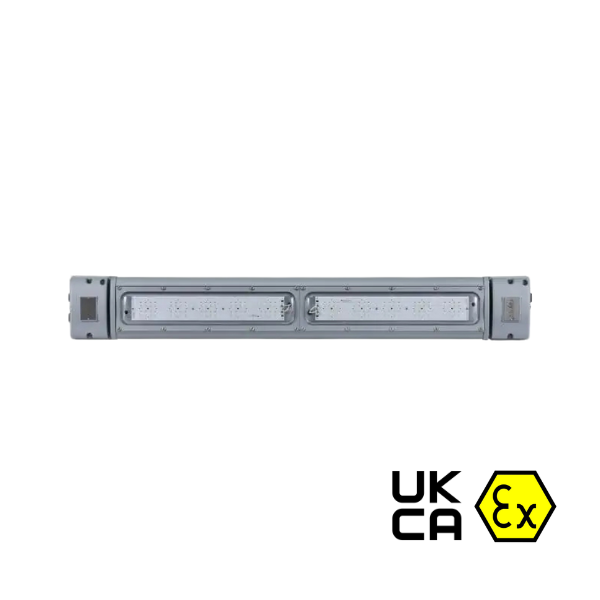

Raytec SPZ-WL168 | Linear Light Fitting Zone 2 & Zone 22 7,048 Lumens
Zone 2 Light Fittings ATEX, IEC Ex & UKEX Rated for Gas & Dust Explosive Atmospheres
Linear Generation II | UKCA Approved
SPARTAN Linear Generation II range of Zone 2 light fittings form part of the ATEX Lighting range manufactured by Raytec and are designed for new hazardous area installations or to retrofit existing fluorescent installations which require high performance, high reliability and white-light illumination in potentially explosive atmospheres.
The SPZ-WL168 light fittings are globally certified to Zone 2 offering long-life LED technology.
Hazardous Area Rating: Zone 2 – Gas & Dust
Zone 2 Gas
- II 3 G D
- Ex nA mc op is IIC T4 Gc
- Ta= -40°C to +60°C (-20°C to +50 for emergency variants)
Hazardous Area T Rating – T4 (T6 available on request)
Zone 22 Dust
- Ex tc op is IIIC T80°C Dc
- Ta= -40°C to +60°C (-20°C to +50°C for emergency variants)
SPARTAN Linear WL168 Generation II
The overall dimensions, fixing centres and gland entries of the hazardous area lighting are compatible with common 2x36W fluorescents, with lumen output and light distribution also offering a direct replacement.
CoolXtrude™ thermal management technology ensures a lifetime of 10 years+ while providing a high lumen output of up to 7,048 delivered lumens. All SPARTAN lighting comes with an industry leading 5 year warranty as standard.

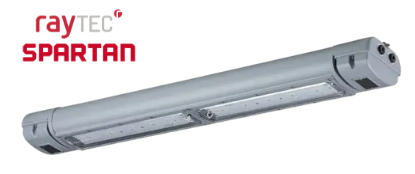

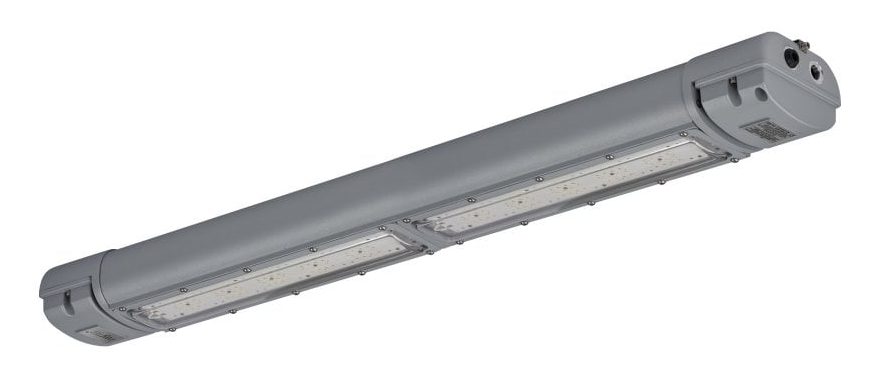

Raytec Spartan Linear SPZ-WL168 Zone 2 Hazardous Area 7,048 Lumens
Zone 2 Light Fittings
Features & Benefits
ATEX Light Fittings
- Raytec Part Number – SPZ-WL168
- ATEX & IEC Ex approved – Zone 2 (Gas) & Zone 21 (Dust)
- UL/CSA approved including C1D2 and ABS
- UKCA approved
- Ultra Long Life LED
- High Lumen Output LED
- Fully Retrofittable
- Easy Installation and Maintenance
- Emergency Variants
- Wide Operating Temp -40° to +60°
- Zone 1 Variants available
- 5 Year Warranty
- UK Designed and Manufactured
Raytec Spartan ATEX Light Fittings
Zone 2 Light Fittings – Product Dimensions
Raytec SPARTAN Light Fittings
Technical Specification
| Certification: | ATEX and IEC Ex rated for Zone 2/21/22 Gas and Dust, and UL/CSA inc. C1D2 UKCA approved. |
| Beam Angles: | 120°, Equivalent to 2 x 36W T8 Fluorescent |
| Input: | Mains Voltage 110-254V 50/60 Hz AC only Low Voltage Option 18-48V AC/ 18-69V DC and Extra Low Voltage Option 12V AC/DC |
| Consumption: | 49W |
| LED Type: | Platinum SMT LEDs |
| Number of LEDs: | 160 |
| Power Output: | Up to 7,048lm |
| Wavelength: | White-Light (6,000K+) |
| IP Rating: | IP66 and IP67 |
| IK10: | IK10 |
| Temperature Range: | -40°C to +60°C |
| Weight: | 9kg (19.8lbs) |
Light Fittings Dimensions
Metric – 1414 x 108 x 174mm
Imperial – 55.7 x 4.3 x 6.9”
Zone 2 Light Fittings Product Codes
| SPZ-WL168 | SPARTAN Linear 160 LED, Zone 2/22, White-Light |

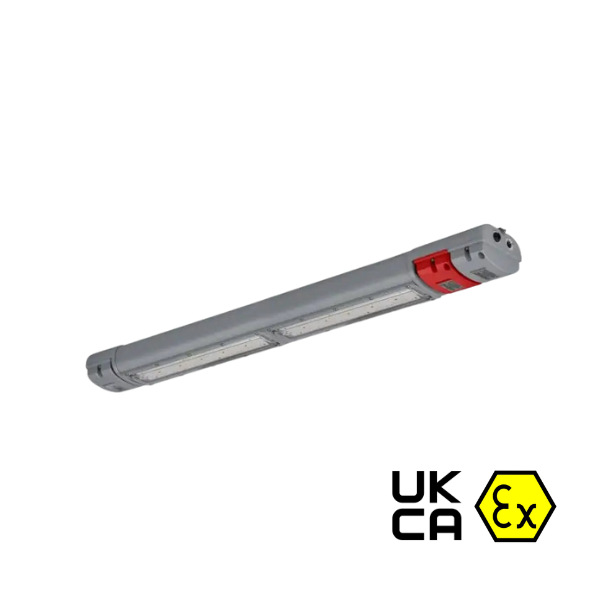

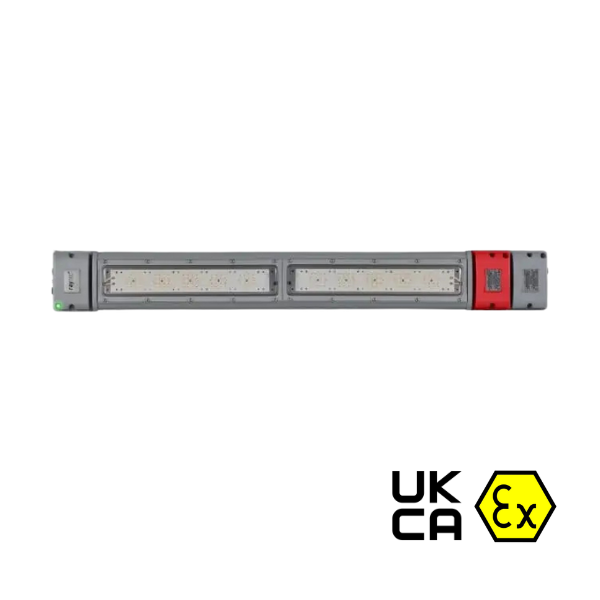

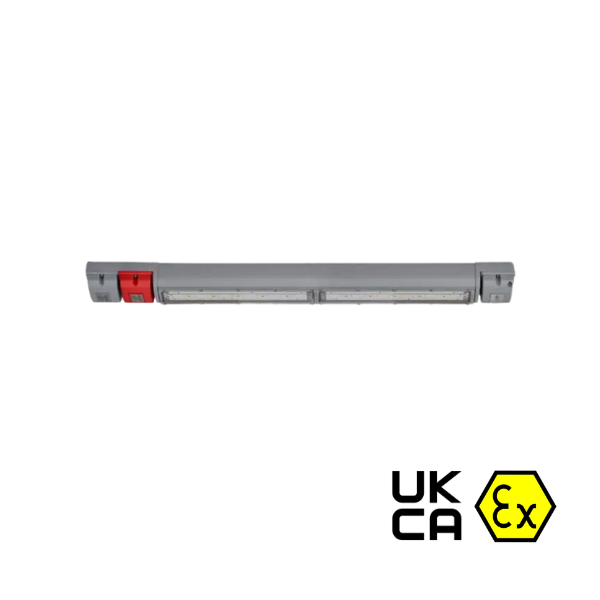

| SPZ-WL168-EMX25 | SPARTAN Linear 160 LED, Zone 2/22, White-Light – Intelligent Emergency variant (25% Output) |
- 18-69V variants available, add -LV to the above codes
- 12V variants available, add -ELV to above codes
- Add -D to part code for diffused lens
- Add -C1D2 to part code for North American standards
- Contact T&D for T5/T6 variants
ATEX Lighting manufactured by Raytec for use in Zone 1 and Zone 2 hazardous areas – this includes floodlights, linear light fittings, bulkheads and high bay lighting for explosion protection concepts including Ex d Flameproof and Ex e Explosion Proof applications.
Raytec SPARTAN SPZ Linear LED Zone 2/22 Linear Luminaire
