Raytec WL84-1200 | Linear Light Fitting Zone 2 & Zone 22 3,524 Lumens

Zone 2 Light Fittings ATEX IEC Ex & UKEX Rated for Gas & Dust Explosive Atmospheres

Linear Generation II | UKCA Approved

SPARTAN Linear range of Zone 2 light fittings form part of the ATEX Lighting range manufactured by Raytec and are designed for new hazardous area installations or to retrofit existing fluorescent installations which require high performance, high reliability and white-light illumination in potentially explosive atmospheres.

The WL84-1200 light fittings are globally certified to Zone 2 offering long-life LED technology  – providing the output of a 2ft linear in a 4ft body. WL84-1200 offers a reduction in consumption from 78W (2x36W) to SPARTAN’s 34W – a saving of 56% per fitting.

Hazardous Area Rating: Zone 2 – Gas & Dust

Zone 2 Gas

  • II 3 G D
  • Ex nA mc op is IIC T4 Gc
  • Ta= -40°C to +60°C (-20°C to +50 for emergency variants)

Hazardous Area T Rating – T4 (T6 available on request)

Zone 22 Dust

  • Ex tc op is IIIC T80°C Dc
  • Ta= -40°C to +60°C (-20°C to +50°C for emergency variants)

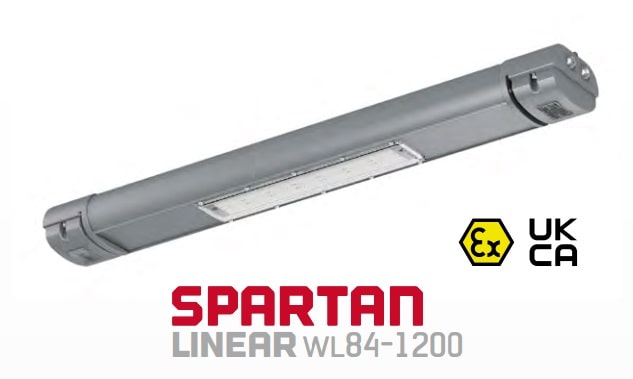

SPARTAN Linear WL84-1200 Generation II

SPARTAN Linear WL84-1200 Generation II

The overall dimensions, fixing centres and gland entries of the hazardous area lighting are compatible with common 2x36W fluorescents, with lumen output and light distribution also offering a direct replacement.

CoolXtrude™ thermal management technology ensures a lifetime of 10 years+ while providing a high lumen output of up to 3,524 delivered lumens. All SPARTAN lighting comes with an industry leading 5 year warranty as standard.

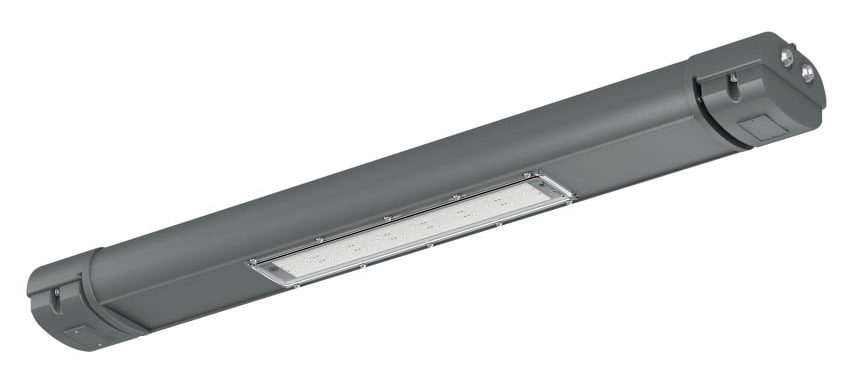

Raytec Spartan Linear WL84-1200 Zone 2 Hazardous Area 3,524 Lumens

Raytec Spartan Linear WL84-1200 Zone 2 Hazardous Area 3,524 Lumens

Zone 2 Light Fittings

Features & Benefits

ATEX Light Fittings

ATEX Light Fittings

  • Raytec Part Number – SPZ-WL84-1200
  • ATEX & IEC Ex approved – Zone 2 (Gas) & Zone 21 (Dust)
  • UL/CSA approved including C1D2 and ABS
  • UKCA approved
  • Ultra Long Life LED
  • High Lumen Output LED
  • Fully Retrofittable
  • Easy Installation and Maintenance
  • Emergency Variants
  • Wide Operating Temp -40° to +60°
  • Zone 1 Variants available
  • 5 Year Warranty
  • UK Designed and Manufactured
  • ‘Op is’ approved (EN60079-28)
Raytec Spartan ATEX Light Fittings

Raytec Spartan ATEX Light Fittings

Raytec SPARTAN Light Fittings

Technical Specification

Certification: ATEX and IEC Ex rated for Zone 2 Gas and Dust, and UL/CSA inc. C1D2. UKCA approved.
Beam Angles: 120°, Equivalent to 2 x 36W T8 Fluorescent
Input: Mains Voltage 110-254V 50/60 Hz AC only
Low Voltage Option 18-48V AC/ 18-69V DC and Extra Low Voltage Option 12V AC/DC
Consumption: 24W
LED Type: Platinum SMT LEDs
Number of LEDs: 80
Power Output: Up to 3,524lm
Wavelength: White-Light (6,000K+)
IP Rating: IP66 and IP67
IK Rating IK10
Temperature Range: -40°C to +60°C
Weight:   6kg (13.2lbs)

Light Fittings Dimensions

Metric – 1295 x 108 x 174mm
Imperial – 51 x 4.3 x 6.9”

Zone 2 Light Fittings Product Codes

SPZ-WL84-1200 SPARTAN Linear 80 LED, Zone 2/22, White-Light
SPZ-WL84-1200-EMX25 SPARTAN Linear 80 LED, Zone 2/22, White-Light –  Intelligent Emergency variant (25% Output)
  1. 18-69V variants available, add -LV to the above codes
  2. 12V variants available, add -ELV to the above codes
