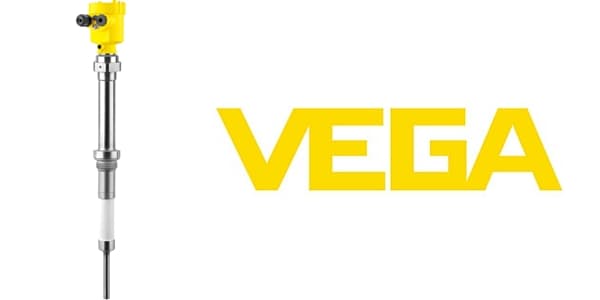

VEGA VEGACAP 67 Capacitive Level Switch

VEGA VEGACAP 67

VEGA Level Switch

Level Switch VEGA VEGACAP 67

VEGA VEGACAP 67 capacitive level switch provides level measurement for bulk solids at high temperatures for use in many different industries.

VEGACAP 67 level switch features a shortenable probe that offers high flexibility.

The proven mechanical construction design ensures universal use in bulk solids through a wide range of temperatures, long lifespan and minimum maintenance requirements.



VEGA VEGACAP 67 Capacitive Level Switch

Product Specifications

Measuring Range – Distance Process Pressure Process Temperature Level Switch Protection Rating Ambient Temperature Hazardous Area ATEX

Level Switch
32 m 1 – 40 bar -50 – 400°C IP66/IP68 (0.2 bar)
IP66/IP67
IP66/IP68 (1 bar)		 -40 to 80 °C  Yes, VEGA VEGACAP 67 is suitable for hazardous areas

ATEX Level Sensors

(see ATEX download).

VEGACAP 67 Level Switch Hazardous area CertificationsVega Level Switches

VEGACAP 67 capacitive level switch is available with hazardous area certifications to meet ATEX directives for Zone 1 and Zone 2 installations.

VEGA level switches are suitable for use in hazardous areas and their instruments also have various ship approvals such as e.g. GL, LRS or ABS.

VEGA LEVEL SWitch – VEGACap 67 FEATURES

FunctioN

The two electrodes of the capacitor are formed from the sensor and vessel.  A capacitance change caused by a level change is evaluated by the integrated electronics and converted into a switching signal. The capacitive measuring principle doesn’t have any specific requirements with regards to installation and mounting.

Materials

The wetted parts of the instrument are made of stainless steel and the probe insulation of PTFE.

Housings

The level switch housings are available in plastic, stainless steel or aluminium. They are available with protection ratings up to IP 67.

ELECTRONICS

VEGA switches are available in different electronics versions. Apart from the versions with transistor output, contactless electronic switch and relay output, a two-wire version for connection to a signal conditioning instrument is available.

 SIGNAL OUTPUT

    • Relay (DPDT)
    • Contactless electronic switch
    • Transistor (NPN/PNP)
    • Two-wire

APPROVALS

    • ATEX



VEGA LEVEL SWitches – veGACAP

VEGACAP level switches provide level measurement for bulk solids and liquids as the sensor and vessel form the two electrodes of a capacitor. In capacitive limit level measurement any capacitance change as a result of a change in level is converted into a switching signal. The shortenable cable and rod options makes the level switches suitable for almost any application such as overfill/dry run protection and oil/water or foam detection. VEGA is a global manufacturer of process and hazardous area instrumentation.

Thorne & Derrick provide Process Measurement and Instrumentation systems for level measurement, flow measurement, temperature measurement and pressure measurement.

Thorne & Derrick can provide expert technical advice, specification guidance and competitive quotations for VEGA sensors from stock. Contact us for support on industrial and hazardous area flow measurement.

VEGA Level Switches

VEGA Level Switches : Measurement of level, point level, pressure, flow and density

Thorne & Derrick provide Process Measurement and Instrumentation systems for level measurement, flow measurement, temperature measurement and pressure measurement.
