VEGA VEGAFLEX 61 Guided Wave Radar Level Sensor

VEGA VEGAFLEX 61

VEGA Level Sensors

Level Sensor VEGA VEGAFLEX 61

VEGA VEGAFLEX 61 guided wave radar level sensor provides continuous level measurement for liquids and light-weight bulk solids including applications with vapour buildup, dust or condensation.

VEGAFLEX 61 level sensor is simple to set up and has low maintenance costs thanks to the proven mechanical construction.

The TDR sensor delivers precision and reliability and offers a cost effective solution to continuous level measurement.

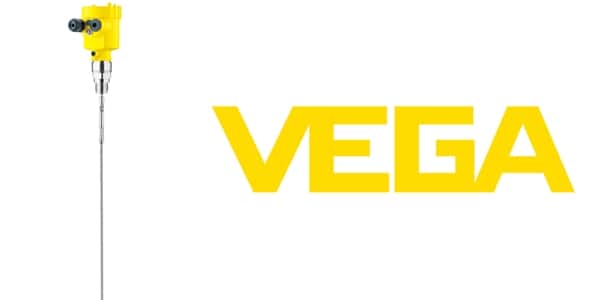

VEGA VEGAFLEX 61 Guided Wave Radar Level Sensor

Product Specifications

Measuring Range – Distance Process Pressure Process Temperature Level Sensor Accuracy  Ambient Temperature Hazardous Area ATEX

Level Sensor

32 m 1 – 40 bar -40 – 150°C ± 3 mm -40 to 70 °C  Yes, VEGA VEGAFLEX 61 is suitable for hazardous areas

ATEX Level Sensors

(see ATEX download).

VEGAFLEX 61 Level Sensor Hazardous area CertificationsVega Level Sensors

VEGAFLEX 61 guided wave radar level sensor is available with hazardous area certifications to meet ATEX & IECEx directives for Zone 1 and Zone 2 installations.

ATEX APPROVALS

ATEX II 1G, 1/2G, 2G EEx ia IIC T6 CA
ATEX II 1G, 1/2G, 2G EEx ia IIC T6 + WHG CM
ATEX II 1G, 1/2G, 2G EEx ia IIC T6 + Ship approval DX
ATEX II 1/2G, 2G EEx d ia IIC T6 1) GX
ATEX II 1/2 D, 2D IP6X T 2)

VEGA level sensors are suitable for use in hazardous areas and their instruments also have various ship approvals such as e.g. DNV, GL, LRS or ABS.

VEGA LEVEL SENSOR – VEGAFLEX 61 FEATURES

FunctioN

High frequency microwave pulses are coupled onto a cable or rod and guided along the probe. The pulse is reflected by the product surface. The time from emission to reception of the signals is proportional to the level in the vessel.

Materials

The wetted parts of the instrument are made of stainless steel and the instrument seal is made of one of the following FKM, FFKM or EPDM.

Housings

The level sensor housings are available as double chamber version in plastic, stainless steel or aluminium with protection ratings up to IP66/IP67.

ELECTRONICS

VEGA sensors are available in different electronics versions. Apart from the two-wire electronics with 4 … 20 mA/HART, there are two pure digital versions with Profibus PA and Foundation Fieldbus possible as well as one version for connection to a signal conditioning instrument.

 Signal Output

  • 4 -20 mA/HART in two-wire
  • 4 -20 mA/HART  in four-wire
  • Profibus PA
  • Foundation Fieldbus technology

VEGA LEVEL SENSORS – veGAFLEX

VEGAFLEX level sensors provide level measurement for bulk solids, liquids and separation layers (interfaces). In guided wave radar level measurement, microwave pulses are conducted along a cable or rod probe and reflected by the product surface. The measuring probe of the TDR sensor ensures that the signal reaches the medium without disruption. VEGA is a global manufacturer of process and hazardous area instrumentation.

Thorne & Derrick provide Process Measurement and Instrumentation systems for level measurement, flow measurement, temperature measurement and pressure measurement.

Thorne & Derrick can provide expert technical advice, specification guidance and competitive quotations for VEGA sensors from stock. Contact us for support on industrial and hazardous area flow measurement.
