VEGA VEGAVIB 61 Vibrating Level Switch
VEGA Level Switches

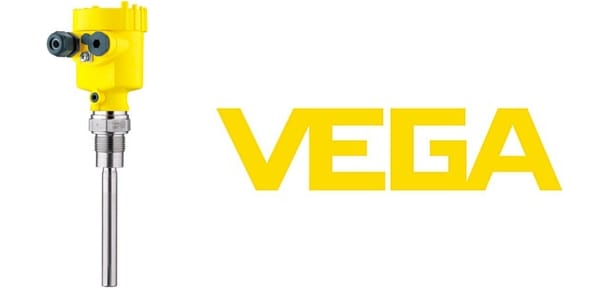

Level Switch VEGA VEGAVIB 61
VEGA VEGAVIB 61 is a vibrating level switch designed for use with granular and coarse-grained bulk solids, reliably and accurately the minimum or maximum level.
The VEGAVIB 61 has a smooth surface without corners and edges which avoids jamming of the bulk solid and allowing for it to be easily cleaned.
VEGA VEGAVIB 61Â Vibrating LEVELÂ Switch
PRODUCT SPECIFICATIONS
| Process Temperature | Process Pressure | Level Sensor Protection Rating | Ambient Temperature | Hazardous Area ATEX
Level Switch |
| -50 – 250°C | -1 … 16 bar | IP66/IP68 (0.2 bar) IP66/IP67 IP66/IP68 (1 bar) |
-40 to 80 °C |  Yes, VEGA VEGAVIB 61 is suitable for hazardous areas
(see ATEX download). |
VEGAVIB 61 LEVEL SWITCH HAZARDOUS AREA CERTIFICATIONS
VEGAVIB 61 vibrating level switch is available with hazardous area certifications to meet ATEX & IECEx directives for Zone 1 and Zone 2 installations.
ATEX & IECEX APPROVALS
ATEX II 1G, 1/2G, 2G Ex ia IIC T6
ATEX II 1G, 1/2G, 2G Ex ia IIC T6 + 1D, 1/2D, 2D Ex tD IP66 T*
IEC Ex ia IIC T6
ATEX II 1/2G, 2G Ex d IIC T1…T6 Ga/Gb, Gb
ATEX II 1D, 1/2D, 2D Ex tD IP66 T*IEC Ex tD A20/21 IP66 T*, A21
VEGA level switches are suitable for use in hazardous areas and their instruments also have various ship approvals such as e.g. DNV, GL, LRS or ABS.
VEGA LEVEL Switch – VEGAVIB 61 FEATURES
Function
The vibrating rod of VEGAVIB 61 is energized by a piezo drive to vibrate at its resonance frequency. If the medium covers the vibrating rod, the amplitude is damped.
The electronics detects this change and converts it into a switching command. A reliable function in granulated bulk solids is ensured by the ideal rod design.
MATERIALs
Wetted Parts: Stainless steel 316L
Seal Material: Klingersil C-4400
Housing Versions
Available in plastic, stainless steel or Aluminium IP67.
ELECTRONICS VERSIONS
- Relay (DPDT)
- Contactless electronic switch
- Transistor (NPN/PNP)
- Two-wire
- NAMUR
APPROVALS
- ATEX
- IEC
- FM
- CSA
- GOST
- SIL2
VEGA Level Measurement Instruments & Sensors include capacitive, hydrostatic, guided wave radar and ultrasonic sensors for the measurement of bulk liquids, solids and powders in safe, industrial and hazardous area industries.
Thorne & Derrick provide Process Measurement and Instrumentation systems for level measurement, flow measurement, temperature measurement and pressure measurement.
T&D provide expert technical advice, specification guidance and competitive quotations for VEGA sensors from stock. Contact us for support on industrial and hazardous area flow measurement.
VEGA Level Sensors : Measurement of level, point level, pressure, flow and density.
