Wolf TL-9055T3 Toplite T3

Wolf TL-9055T3

Toplite T3

Handlamp

Gas: Hazardous Area Zone 1 & Zone 2

Thorne & Derrick, the Specialist Distributors of Hazardous Area Lighting can provide competitive prices and supply from stock the complete range of Wolf temporary and portable lighting products.

Wolf TL-9055T3 hazardous area handlamps are certified for use in Zones 1 & 2 (Gas).

Wolf TL-9055T3 Toplite T3 Hazardous Area Searchlight

Wolf TL-9055T3 Toplite T3 is a rechargeable Halogen searchlight with “ib” intrinsic safety type of explosion protection for hazardous areas – using high power Halogen filled filament as the light source the TL-9055T3 Toplite T3 provides an output of 1,600cd (White).

Part Number: Wolf TL-9055T3
Product Category: Hazardous Area Lighting
Product Range: Hazardous Area Handlamps
Description: 30W High Power Spotlight, Rechargeable Worklight
Hazardous Area Code: EEx e m ib IIC T3
Type Of Protection: “e” Increased Safety, “m” encapsulation, “ib” Intrinsic Safety
Hazardous Area Classification (Gas): Zones 1 and 2, Gas Groups IIA, IIB, IIC
Temperature Classification (Gas): T3
Ambient Temperature: -20ºC to +40ºC
Certificate: BASEEFA Ex 92C3405
Enclosure: Polypropylene, Anti-Static
Lens: Toughened glass
Code: EEx e m ib IIC T3

➡ See our technical resource section for further detailed information about hazardous area Zones and T-Class ratings.

Light Source

Type: Sealed Beam Unit with Filament Bulb
Bulb Life: 300 Hours (at 12.8V)

Light Duration

100 minutes (190 minutes low power)

Wolf TL-9055T3 forms part of the Toplite T3 Searchlight

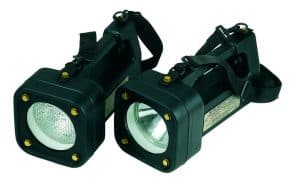

Wolf Toplite T3 Searchlight (Zone 1 & Zone 2 Hazardous Areas)

Wolf TL-9055T3 – Flood Beam (approx 30°) – for further information about Hazardous Area Lighting for Zone 1 and Zone 2 please contact T&D’s Sales Engineers.

➡ For complete specifications, technical date and ordering details about Wolf TL-9055T3 please refer to the download opposite or contact T&D to discuss your handlamp requirements.

WOLF TOPLITE T3 SEARCHLIGHT TECHNICAL INFORMATION

The following table explains the technical specification differences for the Toplite T3 range of handlamps – should you require support or advice on selecting the correct hazardous area handlamp please do not hesitate to contact us.

Wolf TL-9055T3

Wolf Toplite Part Reference		Wolf TL-9055T3
Handlamp Description		30W High Power Spotlight, Rechargeable Worklight
Hazardous Area Code		EEx e m ib IIC T3
Type of Protection		“e” Increased Safety, “m” encapsulation, “ib” Intrinsic Safety
Area of Hazardous Classification (Gas)		Zones 1 and 2, Gas Groups IIA, IIB & IIC
Temperature Classification (Gas)		T3
Ambient Temperature		-20ºC to +40ºC
ATEX Certificate		BASEEFA Ex 92C3405
Enclosure		Polypropylene, Anti-Static
Lens		Toughened glass
Light Source	Part Number	TL-9063T3
	Type	Sealed Beam Unit with Filament Bulb
	Volts	12.8V
	Watts	35W
	Intensity	1,600cd
	Beam	Trapezoidal Flood
	Life	300 Hours (at 12.8V)
Power Source	Type	Rechargeable battery, Nickel Cadmium
	Part Number	TL-9492
	Volts	12V
	Capacity	4.3Ah
	Life	Up to 1,000 recharge cycles
Light Duration		100 minutes (190 minutes low power)
Ingress Protection		IP67
Weight		4.0kg (including battery)

Wolf – tHE hAZARDOUS AREA lIGHTING sPECIALISTS

Contact T&D to discuss all your portable and temporary hazardous area lighting requirements – as Main Distributors for Wolf Safety Lamp we can provide expert technical support and competitive prices with delivery from stock.
