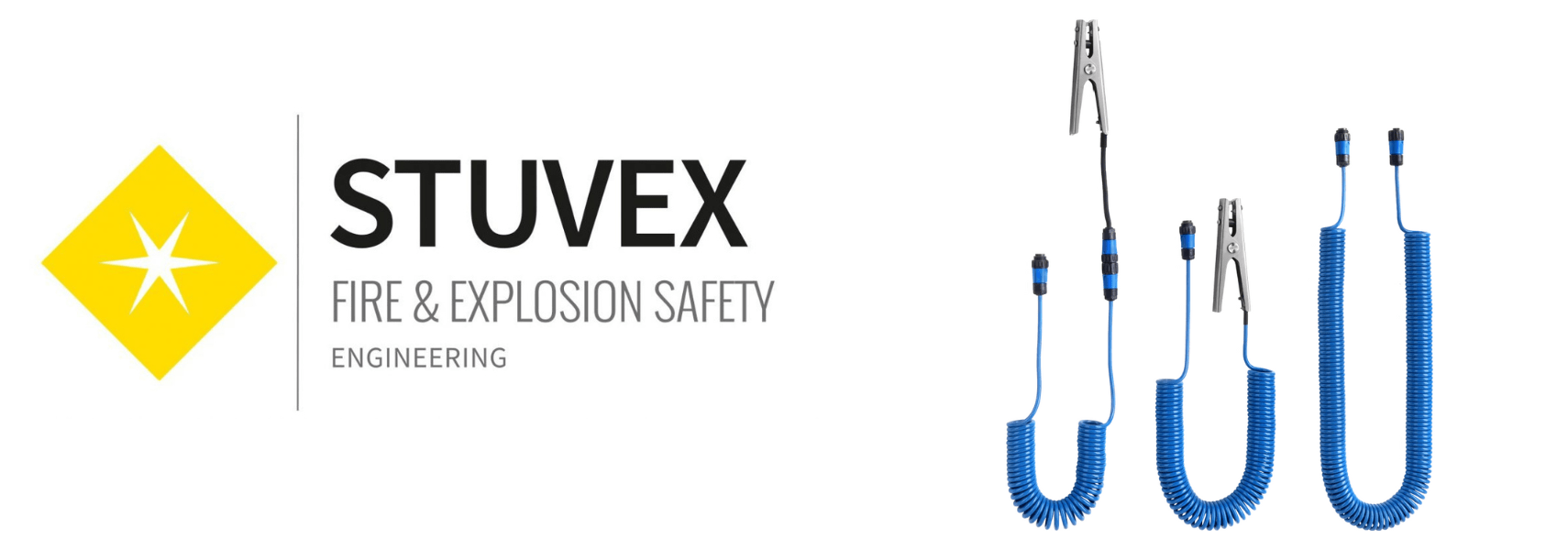

Spiral Cables For Use In Hazardous Areas StuEx Safe-Ground SP1


Thorne & Derrick | Approved Supplier of Static Earthing, Grounding & Bonding Systems | ATEX Certified Products & Solutions

Static Control for Explosion Protection of Assets & Operators in Hazardous Area Locations


ATEX Spiral Earthing & Grounding Cables

StuvEx Safe-Ground SP1 for Hazardous Areas & Explosion Protection

The Safe-Ground SP1 spiral earthing & grounding cables for use in hazardous areas with Safe-Ground earthing clamps are designed to provide an effective, low-resistance connection between movable objects and earth, to safely conduct any static electricity.

The ATEX spiral earthing and grounding cables are supplied as component of the StuvEx static earthing system and can be combined with any of the control units and clamps of the Safe-Ground product range. Safe-Ground spiral cables ordered without earthing clamps, are supplied with loose wire ends for self-assembly.

➡ Thorne & Derrick together with StuvEx supply Static Bonding Clamps, Cables & Connectors to the hazardous area EX industries with over 35 years experience.

ATEX Spiral Earthing & Grounding Cables

For use in hazardous areas with potentially explosive atmospheres.


Safe-Ground SP1 for Hazardous Areas

Earthing Benefits

Specially designed and developed for the Safe-Ground earthing systems, the spiral blue cables offers the following advantages:

  • Suitable for use in all weather conditionsHazardous Area Approvals ATEX IECEX | Static Earthing Grounding Bonding Systems
  • Wide temperature range
  • Excellent fatigue resistance
  • High tear and abrasion resistance
  • Excellent resistance to chemicals, oils and greases
  • Suitable for use in ATEX environment
  • Optimal stretch ratio
  • Retention of shape and flexibility when retracted
  • Complies with CL/TR50404 and NFPA77

Safe-Ground SP1 spiral cables are available in extendable lengths from 3 m to 10 m. The ATEX spiral cables are equipped with multi-core conductors, providing excellent mechanical strength. The TPE-E jacket with UV stabilizer is chemically resistant, has excellent fatigue resistance and high tear resistance for long life. These spiral cables are therefore ideal for use in (petro) chemical, off-shore and other process industries.


ATEX Spiral Cables General Characteristics

  • Coat: TPE-E, blue glossy (RAL 5015) with UV stabilizer
  • Cable type: LiF12Y12Y 3G 0,75 mm²
  • Core insulation: TPE-E, blue, brown and yellow-green
  • Temperature range: -30°C to +80°C
Safe-Ground SP1 Spiral Cables Dimensions

Safe-Ground SP1 Spiral Cables Dimensions

SG/B-SP1-HD3 SG/B-SP1-HDS SG/B-SP1-HD10
L (in mm) 3000 5000 10000
L0 (in mm) 350 570 970
øD 7.6 7.6 7.6
Weight 0.48 0.75 1.43
Earthing Grounding Bonding

Thorne & Derrick, Experts in Equipment for Explosive Atmospheres, are the Exclusive Channel Partner for StuvEx static earthing, grounding and bonding products in the UK including ATEX and IECEx certified systems, clamps, cables and connectors.
