Raytec SPARTAN Flood & Bulkhead

SPARTAN Flood & Bulkhead

Product Upgrades

Thorne & Derrick are pleased to announce that Raytec (world leaders in LED lighting for hazardous area environments) have recently made some upgrades to their SPARTAN Flood and Bulkhead products.

In the short article below Raytec explore some of the improvements in performance and efficacy of the SPARTAN hazardous area lighting range.

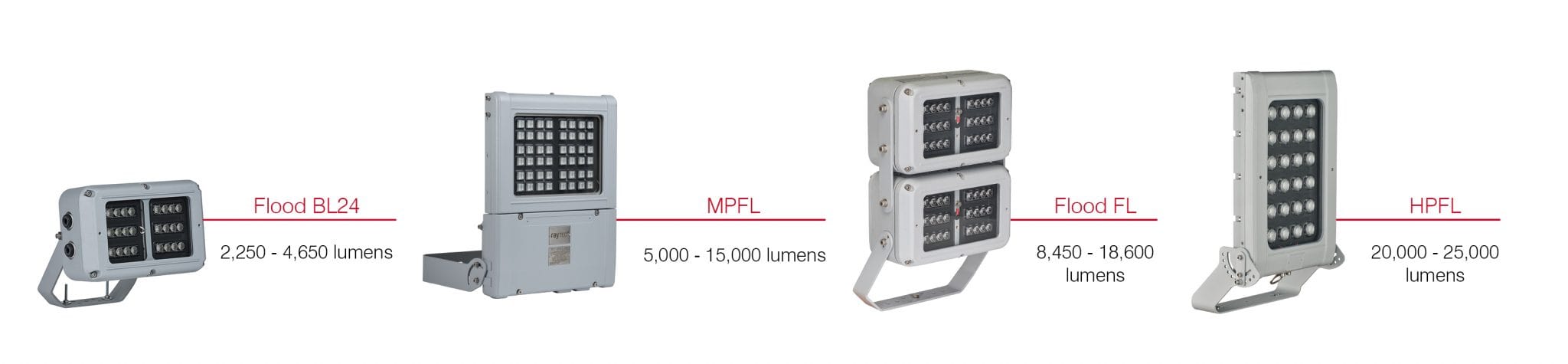

The introduction of the SPARTAN Mid Power Flood, combined with upgrades to the existing range, means Raytec now offer a comprehensive range of well-engineered, cost-effective floodlight solutions across a broad range of lumen outputs from 2,250 to 25,000 lumens.

SPARTAN FL Flood Upgrades

LED upgrades to the SPARTAN FL range, including the FL24 and FL48 Flood, have allowed us to increase the lumen output by an impressive 70%. Let’s compare the existing FL24 and FL48 products with the new updated versions, using the Zone 1 variants as an example;

Old New
FL24 5,000lm / 68W 8,450lm / 68W
FL48 10,000lm / 136W 16,900lm / 136W
Efficacy 74lm/W 125lm/W
70% improvement in lumen output and efficacy



With these upgrades, the FL24 and FL48 Flood products will remain an important part of the SPARTAN portfolio; leading the floodlight range for emergency performance, as well as providing low voltage, extra low voltage, and DC solutions.

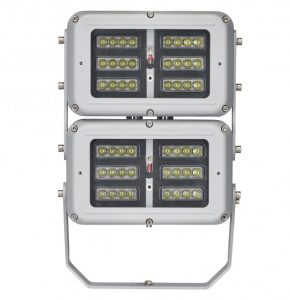

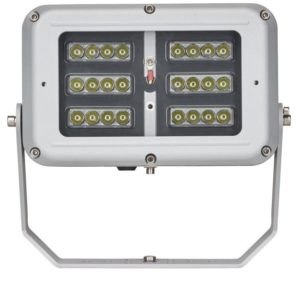

Raytec Spartan SPX-FL24 ATEX Floodlight Raytec Spartan SPX-FL48 ATEX Floodlight
Raytec Spartan SPX-FL24 ATEX Floodlight Raytec Spartan SPX-FL48 ATEX Floodlight

SPARTAN Bulkhead & BL24 Flood

Raytec have also made some improvements to the SPARTAN Bulkhead range with an LED upgrade which improves performance and efficiency. The upgraded LEDs have helped to reduce power consumption by 40% while maintaining the same light output.

Old BL24 New BL24
Standard Variant 2,500lm (34W) 2,500lm (20W)
Efficacy 74lm/W 125lm/W
70% improvement in lumen output and efficacy



They’ve also introduced an innovative new bracketry solution to the existing Bulkhead platform. The new bracket allows full rotation of the luminaire and delivers a cost-effective floodlight – the SPARTAN BL24 Flood.

The BL24 Flood replaces the existing SPARTAN FL12, which has now been made obsolete. In addition, a high-output version of the BL24 Flood, delivering 4,250lm, is also now available.

Old BL24 New BL24 New BL24-HO Flood
Standard Variant 2,500lm (34W) 2,500lm (20W) 4,250lm (34W)
Efficacy 74lm/W 125lm/W 125lm/W
73% improvement in efficacy

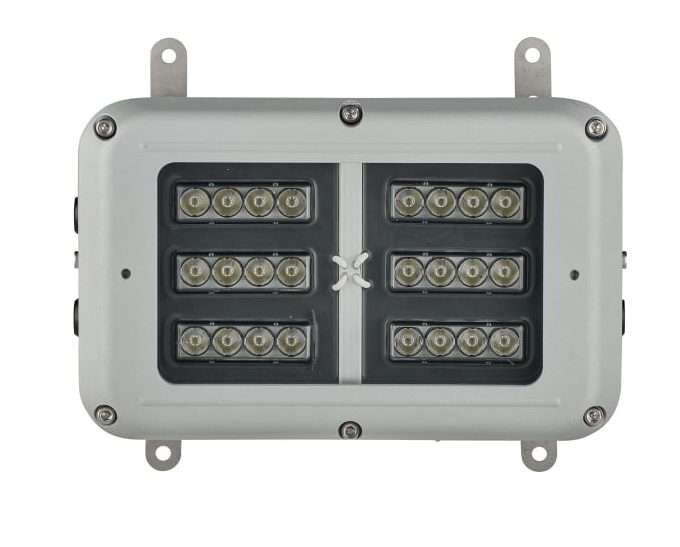

Raytec Spartan BL24 Zone 1 Emergency Bulkhead Light Hazardous Area 2,500 Lumens

Raytec Spartan BL24 | Zone 1 Bulkhead Light Hazardous Area 2,500 Lumens

SPARTAN HIGH POWER AND FLOOD BAY

The 10,000 and 15,000lm variants of the High Power Flood and Bay luminaires have now been discontinued due to the release of the new Mid Power Flood and Bay variants, which offer the same output but as a more cost-effective and installation-friendly solution.

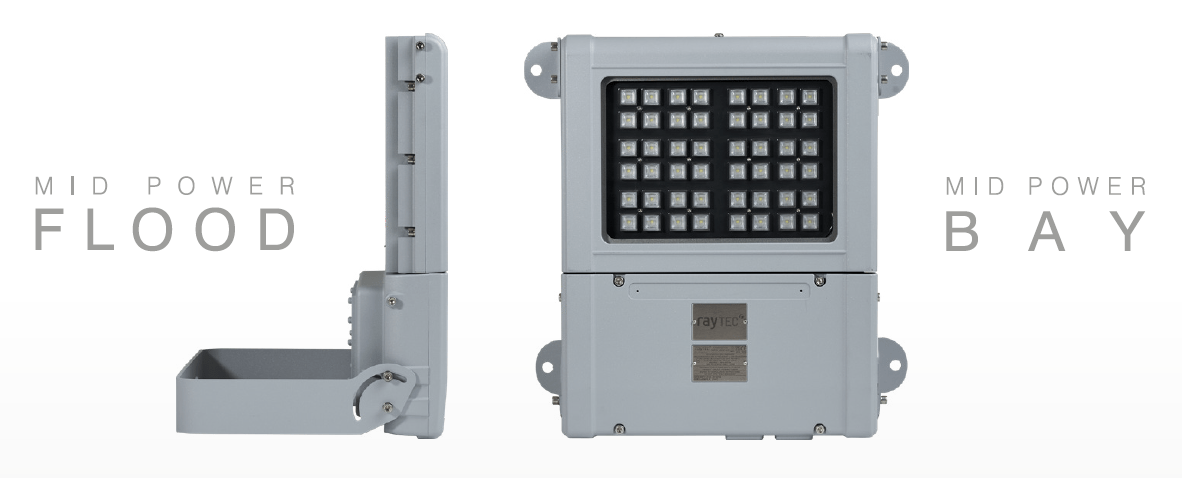

Mid Power Flood And Bay

Available with dedicated Flood and Bay bracketry, the new Mid-Power luminaires provide users with great flexibility and are ideal for a wide range of applications. The SPARTAN Mid Power Flood and SPARTAN Mid Power Bay luminaires are fully certified for Zone 1/21 and Zone 2/22 hazardous areas, including ATEX, IECEx and UKCA.
