ATEX IBC Heater | WEXHCIBC
WEXHCIBC | ATEX IBC Heater | Zone 1 & Zone 2
Product Code: WEXHCIBC

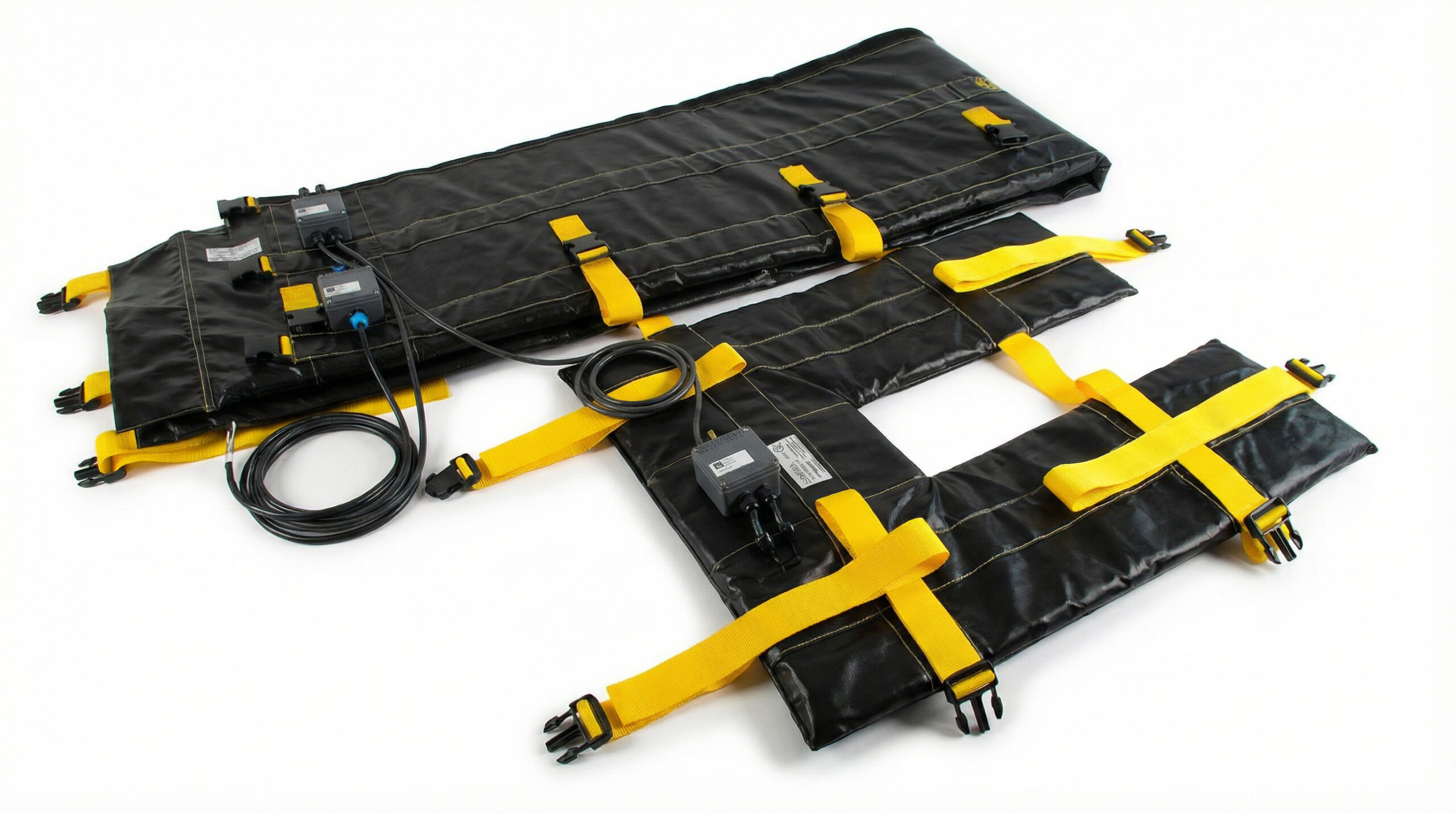

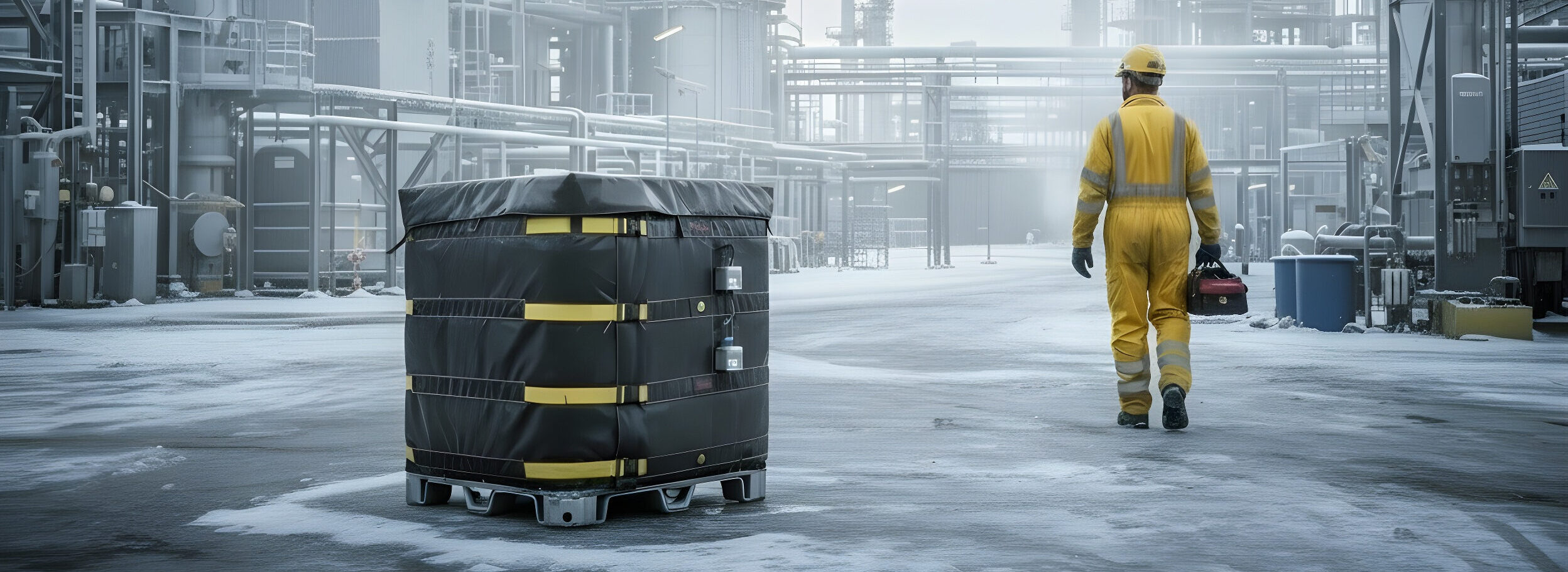

The WEXHCIBC ATEX IBC Heater Jacket provides safe and reliable heating for 1,000-litre IBC containers in hazardous area environments (Zones 1 & 2 gas, Zones 21 & 22 dust). Engineered with system-approved certification to ATEX standards, these heating jackets are ideal for frost protection, temperature maintenance and controlled process heating.
Product Overview
The WEXHCIBC series of hazardous area IBC heating jackets are engineered in collaboration with Winkler to deliver consistent, safe heating for 1,000-litre IBC containers across a wide temperature range from −40 °C to +200 °C. They are system-approved under ATEX (Directive 2014/34/EU), making them suitable for demanding industrial applications where explosive atmospheres may be present.
These IBC heating jackets incorporate high-quality components, robust and electrostatically dissipative materials for indoor or outdoor use, and are supplied fully configured and ready to install without further acceptance procedures. Optional insulating lids and additional accessories support improved thermal efficiency and simplified installation.
| WEXHCIBC | Specification |
| Nominal Voltage | 230 VAC* (other voltages on request) |
| Nominal Power | 2400 W |
| Operating Temperature | +180 °C / +200 °C (steel IBC), +80 °C (plastic IBC) |
| Temperature Class | T6, T5, T4, T3 (dependent on limiter setting) |
| Protection Degree | IP65 / I |
| Hazardous Area Zones | 1/2 (gas); 21/22 (dust) |
| Pt100 Sensors | 2 standard; optional 3, 4 or 5 sensors |
| Dimensions (1000L IBC) | Total Length 4400 mm; Heated Length 3900 mm; Height 1000 mm |
| Weight | 30 kg (heater); 5 kg (insulation lid) |
Key Benefits
✔ System-approved ATEX hazardous area IBC heater design for safety and compliance
✔ Robust, electrostatically dissipative construction for indoor/outdoor environments
✔ Operating range −40 °C to +200 °C
✔ Standard and bespoke solutions available – the heating jacket is customised according to the required dimensions
✔ Ready-to-use jacket configured to order with extensive documentation

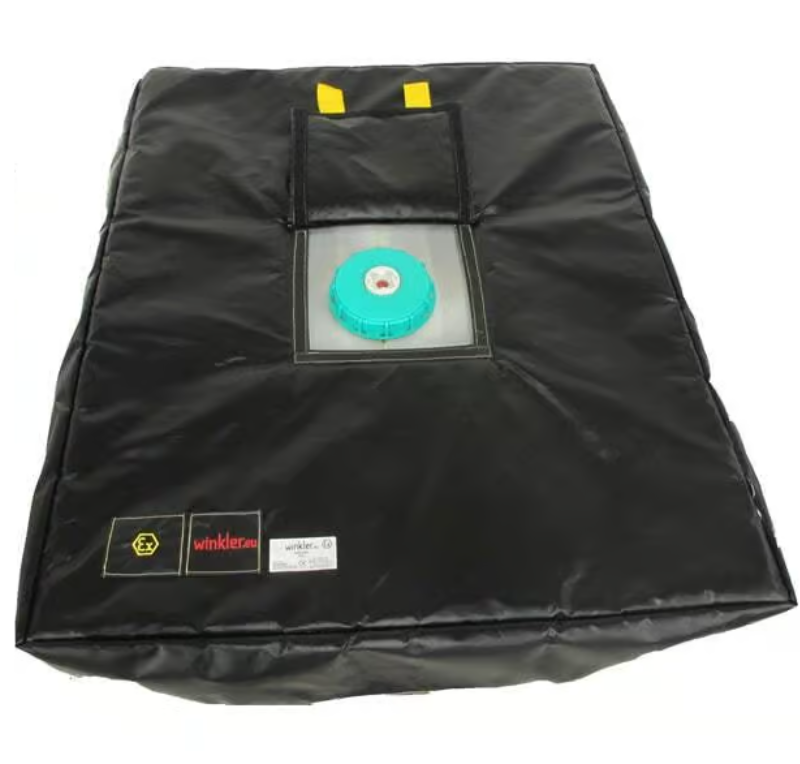

✔ The WEXHIIBC insulating lid may be used additionally
✔ Optional insulating lids improve efficiency and reduce heat loss
✔ Dual Pt100 sensors for process and safety control
✔ Customisable designs available for non-standard IBC sizes
Dimensions – 1000 Litre IBC Container *
| Container Heater | Insulation Lid | |
| Total Length | 4400 | – |
| C (Heated Length) | 3900 | – |
| A (Height) | 1000 | – |
| D (Height) | – | 150 |
 |
||
All dimensions in mm
* Other capacities and sizes available on request
Applications
✔ Chemical processing and hazardous liquid storage

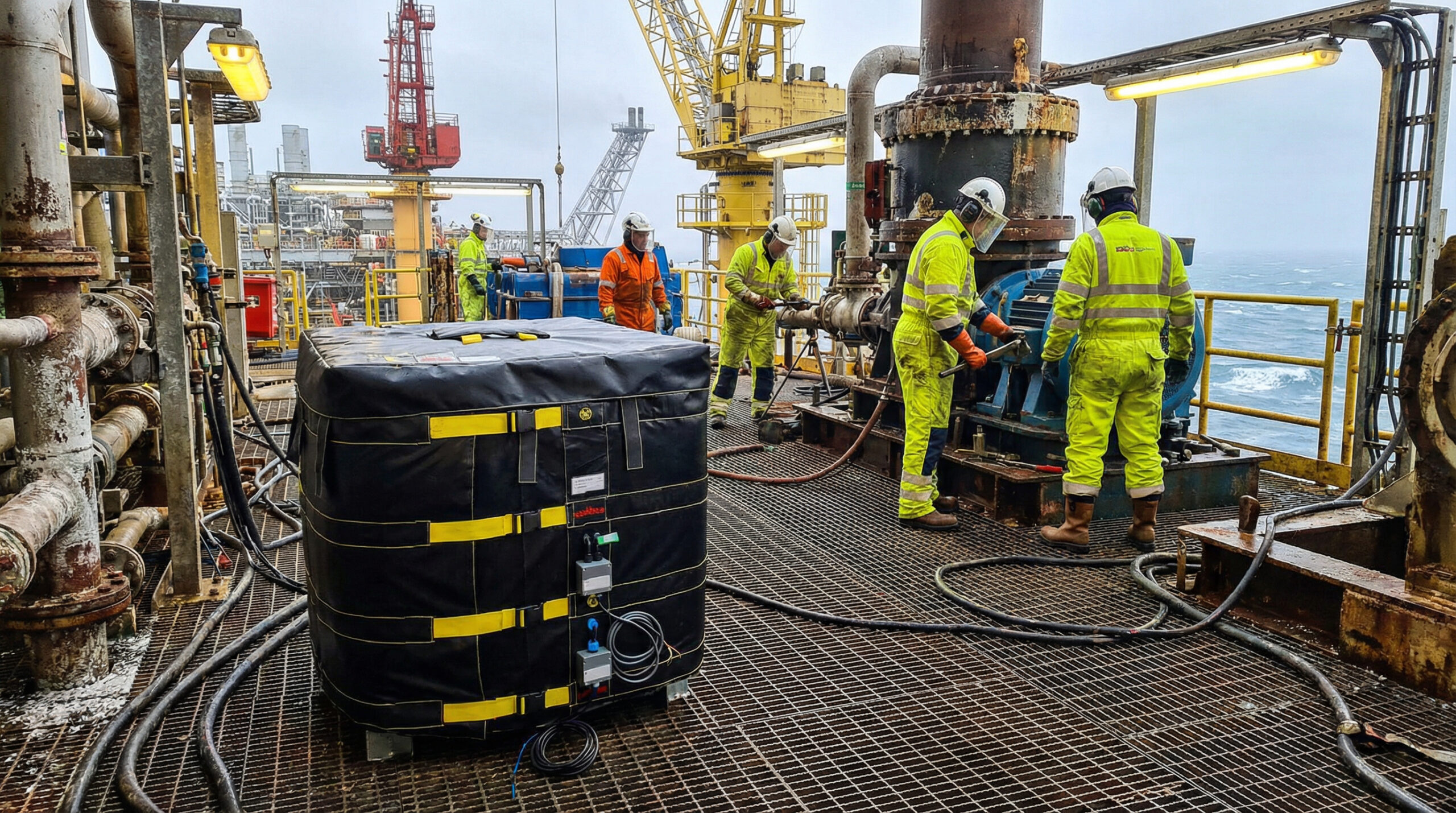

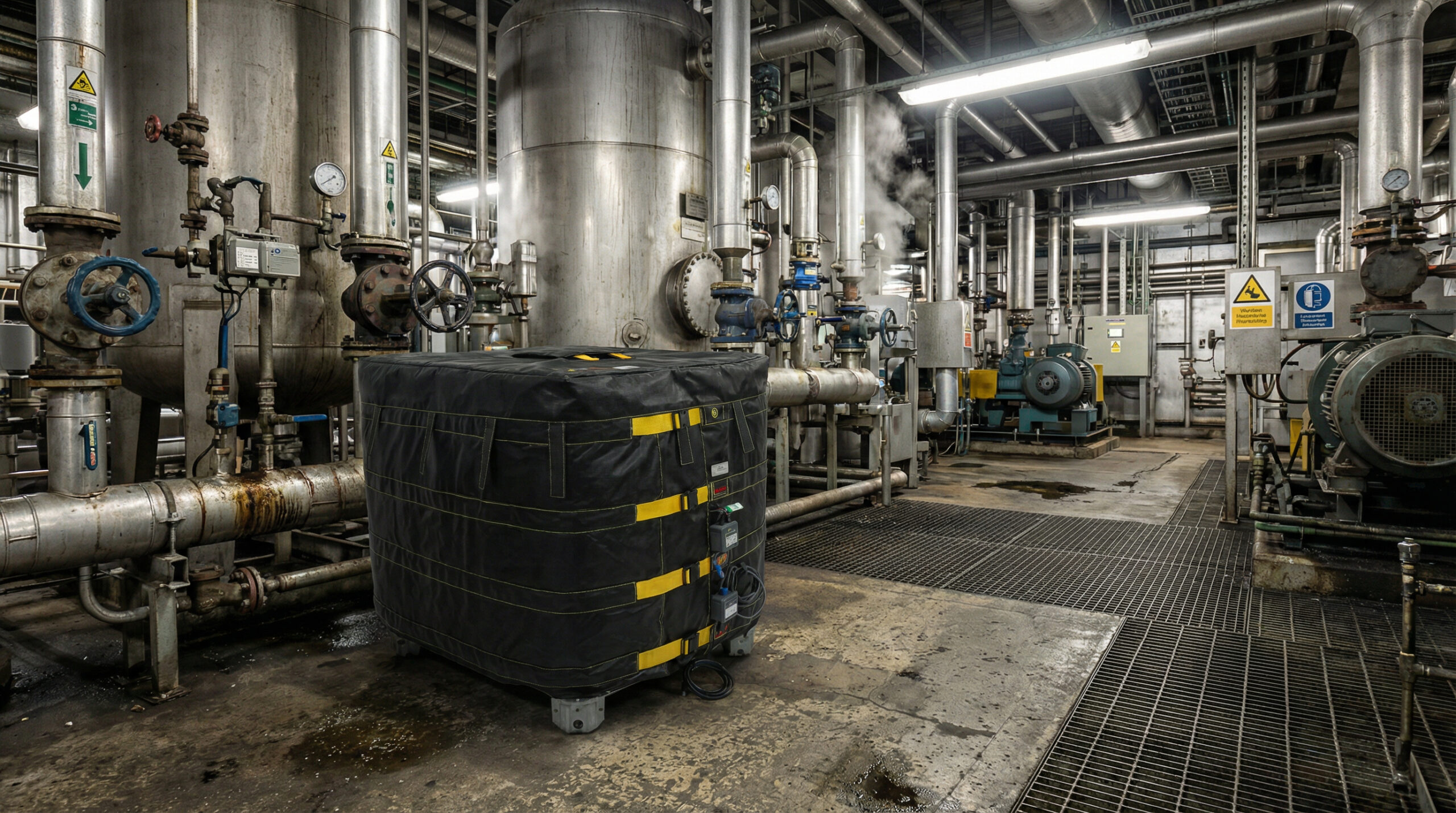

✔ Petrochemical, oil & gas facilities
✔ Pharmaceuticals and specialty chemicals
✔ Frost protection and winterisation
✔ Process temperature maintenance of industrial liquids
Certifications
The WEXHCIBC ATEX IBC Heater Jacket is certified for use in potentially explosive atmospheres with full ATEX and IECEx system approvals.
ATEX Certified
II 2G Ex e mb IIC T3 Gb / II 2D Ex e mb IIIC T120°C Db
IECEx Certified
Ex e mb IIC T3 Gb / Ex e mb IIIC T120°C Db
Winkler GmbH is a globally recognised manufacturer of industrial heating solutions with decades of expertise in hazardous area applications. Their innovative designs and high-quality manufacturing ensure reliable, efficient, and safe heating for liquids in ATEX and IECEx certified environments. Winkler’s IBC heating jackets are engineered for long-term industrial performance, precise temperature control, and compliance with the strictest international safety standards.
ATEX IBC Heater WEXHCIBC Series – Data Sheet
Download
