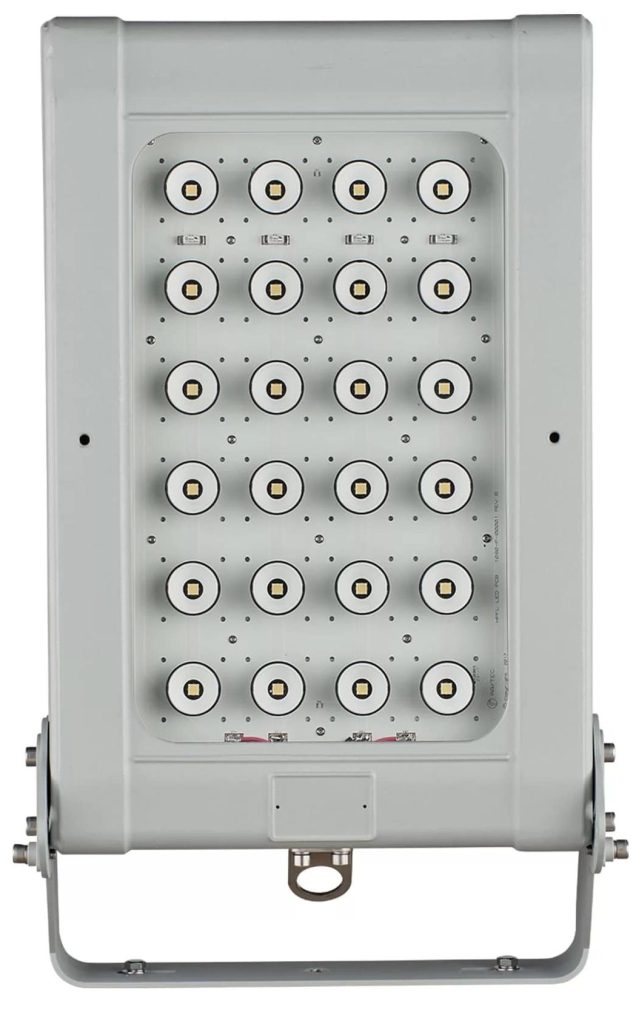

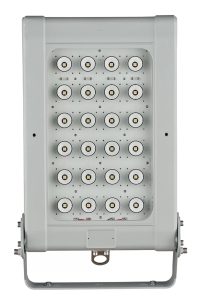

LED Industrial High Power Floodlight

WARRIOR Floodlight

LED Industrial High Power Floodlight

High Power Flood | Raytec HPFL

The WARRIOR High Power Flood range is designed to illuminate large, open spaces within industrial environments and forms part of Raytec’s LED heavy industrial lighting. Available with a range of different outputs from 20,000 to 34,000 lumens, the High Power Flood uses Raytec’s field-proven, long-life LED technology to ensure a lifetime of 10 years+. All WARRIOR luminaires come with an industry-leading 5-year warranty.

High lumen output up to 34,000 lumens and a range of beam patterns to effectively light up large open areas such as service yards.

➡ The Crane LED lighting is also available for hazardous areas for Zone 1 High Power Floodlight & Zone 2 High Power Floodlight

➡ View our complete range of Zone 1 ATEX, IECEx & UKEX Light Fittings manufactured by Raytec and certified according to the ATEX Directive to provide safe and reliable hazardous area lighting in potentially explosive atmospheres in both onshore and offshore locations Zone 1 & 2 Flammable Gas and Zone 21 & 22 (Combustible Dust).

LED Industrial High Power Floodlight

High lumen output up to 34,000 lumens and a range of beam patterns to effectively light up large open areas such as service yards. Designed to directly replace traditional
discharge light sources up to 400W SON. The modular design allows easy access to key components and the ability to mount the PSU remotely.

Robust and durable construction from marine grade aluminium and with a wide operating temperature for even the most challenging conditions. DALI 2.0 Dimmable as standard for
precise and flexible control of lighting assets.

	HPFL 20K	HPFL 25K	HPFL 30K
Input	150-264V 50/60Hz AC/DC (110V variant available – please contact T&D)
Power	200W	250W	300W
Termination	Incoming terminal block suitable for looping 4 core 4mm² cable (6mm² available)
Power Factor	>0.95
Cable Entries	2xM20 as standard (other entries available upon request), dispatched complete with one approved blanking plug

SPI-HPFL Variants

WARRIOR Heavy Industrial LED High Power Flood Luminaires 20,000-30,000 lumens
SPI-HPFL30K-W-3030	WARRIOR High Power Flood, Heavy Industrial , White-Light, 30,000 lumens 30°x30° beam
SPI-HPFL30K-W-6060	WARRIOR High Power Flood, Heavy Industrial , White-Light, 30,000 lumens 60°x60° beam
SPI-HPFL30K-W-9090	WARRIOR High Power Flood, Heavy Industrial , White-Light, 30,000 lumens 90°x90° beam
SPI-HPFL25K-W-3030	WARRIOR High Power Flood, Heavy Industrial , White-Light, 25,000 lumens 30°x30° beam
SPI-HPFL25K-W-6060	WARRIOR High Power Flood, Heavy Industrial , White-Light, 25,000 lumens 60°x60° beam
SPI-HPFL25K-W-9090	WARRIOR High Power Flood, Heavy Industrial , White-Light, 25,000 lumens 90°x90° beam
SPI-HPFL20K-W-3030	WARRIOR High Power Flood, Heavy Industrial , White-Light, 20,000 lumens 30°x30° beam
SPI-HPFL20K-W-6060	WARRIOR High Power Flood, Heavy Industrial , White-Light, 20,000 lumens 60°x60° beam
SPI-HPFL20K-W-9090	WARRIOR High Power Flood, Heavy Industrial , White-Light, 20,000 lumens 90°x90° beam

Lighting Designs For Hazardous Areas & Non Hazardous Areas

Upgrading Plant Legacy Lighting to LED

Thorne & Derrick International, based in the UK, are leading Stockists & Distributors of hazardous area lighting & heavy industrial lighting utilising conventional light fittings and more powerful modern technology White-Light illumination using LED technology – from stock we provide competitive prices and technical support to enable the specification of explosive atmosphere lighting schemes compliant and certified to international standards including ATEX and IECEx.

Using latest software our FREE Lighting Design Service supports the upgrade from fluorescent to LED lighting focussed on maximised light output, optimised energy consumption with reliable and safe certification for explosion protection concepts in Zone 1 and Zone 2 hazardous area zones and workplaces.
