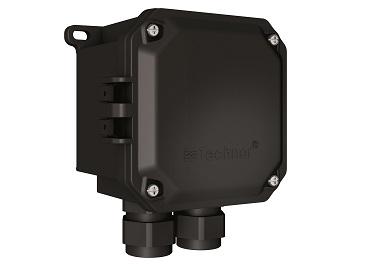

Marechal B2X Hazardous Area ATEX Junction Box

Marechal B2X junction boxes are designed to provide electrical connections in Zone 1 & 2 (gas) and Zone 21 & 22 (dust) hazardous areas.

The B2X junction boxes provide increased safety and intrinsic safety and are ideal for harsh environments subject to corrosion and pollution.

The B2X junction boxes are equipped with EX e certified terminal blocks for connection of flexible or stranded conductors with 0.22mm² up to 16mm² sections.

Marechal B2X Hazardous Area ATEX Junction Box – Technical Features

Ex II 2 G D Ex e ia ou ib IIC, Ex tb IIIC
Intrinsic safety capability
IP66/IP67 water and dust-tight
GRP casing
With Ex e certified Terminal
Dimension 120 x 120 x 90mm or 160 x 160 x 90mm

Marechal B2X Hazardous Area ATEX Junction Box – Electrical Features

Maximum Voltage*	750V DC/AC
Maximum Nominal Current*	63A
Flexible & Stranded Wiring (Mini-Maxi)*	0.22-35mm²
Cable Entries	M12 to M40
Standards Compliance	IEC/EN 60079-0, 60079-7, 60079-11 and 60079-31
Certificates	IECEx Nº IECEx LCI 16.0042X and ATEX Nº LCIE 16 ATEX 3054X
Accessories On Request	Earth stud, earth bar, junction bar, draining and breathing device, earth continuity plate, metal cable gland with or without earth continuity
