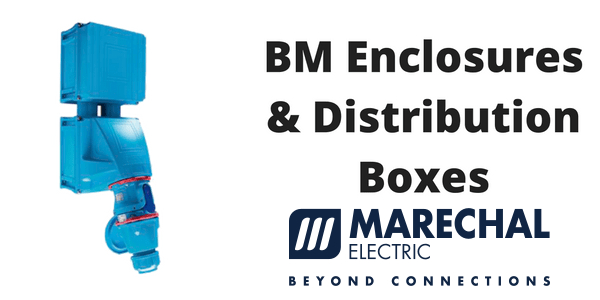

Marechal BM enclosures & distribution boxes are suitable for use with PN plugs and sockets, DS and DSN decontactors. BM enclosures & distribution boxes offer assembly from 1 to 8 modules, 1 or 2 cable glands per side and a range of protection levels.

Marechal BM offers differently sized boxes which can all be fitted with terminal blocks, domestic socket-outlets, inspection windows (for easy access to fuses and circuit breakers) etc. A coupling kit can join 2 boxes with each other.

Marechal BM Enclosures & Distribution Boxes

Technical Features

MaterialImpact-resistant thermoplastic (IK08)
Fastenings Captive stainless steel screws
Protection modeIP66/IP67
Rated current From 16 to 63 A
Wiring 2 x 1,5 mm² to 5 x 35 mm²
Wall box dimensions  (HxWxD) in mm170 x 170 x 118 (80 without lid)
 Assembly 1 ou 2 cable gland per side
Marechal BM Enclosures & Distribution Boxes

BM Enclosures & Distribution Boxes are part of the Marechal Power Distribution Box range

Wall Box Elements

Wall boxes can be used alone mounting accessories to PN, DS or DSN socket-outlets and inlets to form a wall mounting socket or a wall mounting appliance inlet.

Marechal Part NumbersEntriesDimensions*Earth terminal
PN or DSN1for 2 from M16 to M32 per side127 x 127 x 172With
DS1 or DSN3for 2 from M16 to M32 per side127 x 127 x 172With
DS3 or DSN6for 2 from M16 to M40 per side170 x 170 x 201With
DS6for 2 from M16 to M40 per side170 x 170 x 201With

*Boxes are not drilled (drilled at extra cost).* H  x W x D
