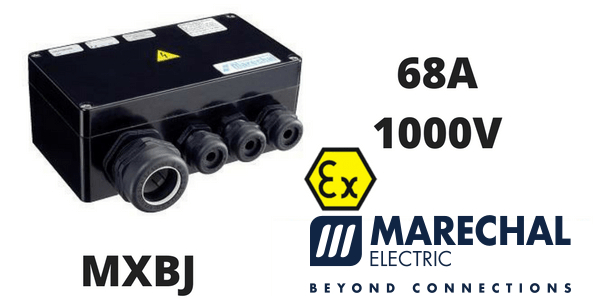

Marechal MXBJ Hazardous Area ATEX Junction Box
MXBJ Hazardous Area ATEX Junction Box
Marechal MXBJ junction boxes are designed to provide easier electrical connections in Zone 1 & 2 (gas) and Zone 21 & 22 (dust) hazardous areas.
The MXBJ junction boxes provide increased safety and intrinsic safety and are ideal for wet or corrosive environments such as those found within the food & beverage or chemical industries.
The terminals Exe from 1.5mm² up to 240mm² can be mounted on the MXBJ junction boxes, up to 402 terminals.
Marechal MXBJ Hazardous Area ATEX Junction Box – Technical Features
- Ex II2 G D Ex e ia ou ib IIC Ex tD A21
- Intrinsic safety capability
- IP66 water and dust-tight
- GRP casing, aluminium, stainless steel AISI 316L
- From -55ºC to +60ºC
- IK09 according to IEC and EN 62 262.
Marechal MXBJ Hazardous Area ATEX Junction Box – Electrical Features
| Maximum Voltage* | 750V |
| Maximum Nominal Current* | 400A |
| Flexible & Stranded Wiring (Mini-Maxi)* | 0.2-300mm² |
| Cable Entries | M12 to M80 |
| Standards Compliance | IEC/EN 60079-0, 60079-7, 60079-11 and 60079-31 |
| Certificates | IECEx Nº IECEx LCI 11.0026X and ATEX Nº LCIE 11 ATEX 3028X |
| Accessories On Request | Earth stud, earth bar, shield bar, junction bar, hinges, mounting, purge or breather, earthing plate, metal gland with or without earth ring |
*Depending on the type of terminal connection
Visit Hazardous Area Plugs for Zone 1 & Zone 2 ATEX certified plugs and sockets for potentially explosive atmospheres.

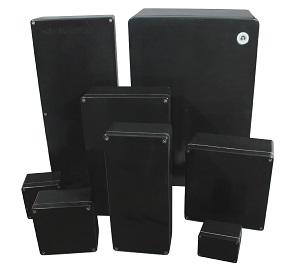

Marechal MXBJ Hazardous Area ATEX Junction Box
