LED Escape Lighting for Hazardous Areas

ZoneS 1 & 2 – Zones 21 & 22

FDBAES Series of Flameproof LED Escape Lights, manufactured by Appleton ATX, provide emergency lighting in hazardous areas designated as Zone 1, Zone 2 , Zone 21 and Zone 22. The LED units are entirely self-contained within a flameproof enclosure, and feature a built-in, automatic self-test system.

These escape lights are available in switched, unswitched, addressable switched and addressable unswitched hazardous area lighting versions. Flameproof LED escape lights are ideal for  use in or around pulp and paper mills, oil refineries and petrochemical plants.

flameproof led escape lights

Features

• Operates in any position
• 1 hour duration in emergency mode
• Charge indicator by 1 green LED (life time over 10 years)
• Automatic built-in self-test system (SATI) with memorization of tests indicated by LEDs
• Can be remotely controlled and checked without switching the mains off with remote control unit (not supplied).
• The remote control unit is installed in a safe area or within a flameproof box, which allows manual switching of up to 300 units for visual inspection
• Escape route lighting is 55 lumens consuming 0.50 watts of power. Space lighting is 540 lumens consuming 0.95 watts of power
• Addressable version operates without additional control lines. Communication between units and the control system is realized via mains borne signals that utilize the existing electrical wiring
• Can be maintained in hazardous areas as an internal switch cuts off battery supply automatically once the cover is unscrewed and opened.
• Padlockable switch is available on switched models which individually cuts off power supply and remote control
• Standard control system capacity of addressable version is one control system for up to 200 emergency lighting units
• Optional increased control system capacity for addressable version is available.
• The booster (repeater unit) is used to increase the length of the network allowing up to 1000 emergency lighting units to be on one control system. This allows for the use of a single computer to centralize the management of the facilities emergency lighting system.
• Connection to the plug-in terminal block via 2 x 5 x 2.5 mm² (0.003 x 0.008 x 0.004 in²) terminals. Supplied with two fixing brackets (zinc plated steel)



flameproof led specifications

• ATEX/IECEx Certifications and Compliances: Zone 1 and 2 – 21 and 22; Ex II 2 GD
• Ingress & Impact Protection Ratings: IP66/68 – IK08
• Ambient Temperature: -40 °C to +55 °C (-40 °F to +131 °F)
• Electrical: Power supply 230 Vac, 50 Hz
• Battery Pack: Escape route lighting: 2.4 V – 1.5 Ah (2 cells – Nicd). Space lighting: 7.2 V – 2.2 Ah (6 cells – NiMh) – Flameproof
• Standard Materials and Finishes: Body is a combination of tempered borosilicate glass tube and aluminum end caps and cover. White powder coated galvanized steel internal reflector with Nitrile O-ring gasket. Mounting accessories can be zinc plated steel or 316 stainless steel. The guard is zinc plated steel
• Flameproof LED Escape Light Testing: Weekly: Lamp check duration 6 seconds. Quarterl: Emergency operation and lamp check for 1 hour



ATX FDBAES SELECTION TABLE

Flameproof LED Escape Lights – Ex d IIC	Appleton ATX Order Code
55lm – 230V – 50/60Hz – M20 – Escape Route Lighting	FDBAESLEDEM
540lm – 230V – 50/60Hz – M20 – Space Lighting	FDBAESLEDSLM

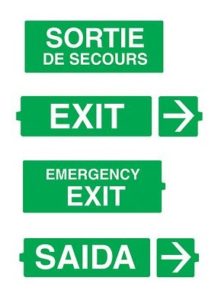

Label – EMERGENCY EXIT	094916

➡ View our complete range of ATEX Lighting products for Zone 1 & Zone 2 (Zone 21 & 22) hazardous area lighting applications.

ATEX/IECEx Certifications and Compliances

• Certification Type: Appleton ATX FLd
— Gas: Zone 1 – 2 Hazardous Areas
– Conforming to ATEX 94/9/CE: II 2 G
– Type of Explosion Protection: Ex d IIC
– Temperature class: T6
— Dust: Zone 21 – 22 Hazardous Areas
– Conforming to ATEX 94/9/CE: II 2 D
– Type of Explosion Protection: Ex tD A21
– Surface Temperature: T80 °C (T176 °F)
• Ambient Temperature: -40 °C to +55 °C (-40 °F to +131 °F) 
• CE Declaration of Conformity: 50203
• ATEX Certificate: LCIE 97/ ATEX 6012
• IECEx Certificate: IECEx LCI 04.0018
• Index of Protection according EN/IEC 60529: IP66/68
• Impact Resistance (shock): IK08
• Internal Volume: > 2 dm3 (122 in³) – 2 liters
• Conforming to NF AEAS

other Certification

• EURASEC N° TC RU C-FR.ГБ05.B.00912
• INMETRO Certificate: BVC 11.0492

Data Sheets

• Appleton ATX FDBAES LED Series Self-Contained Emergency Lighting Units
