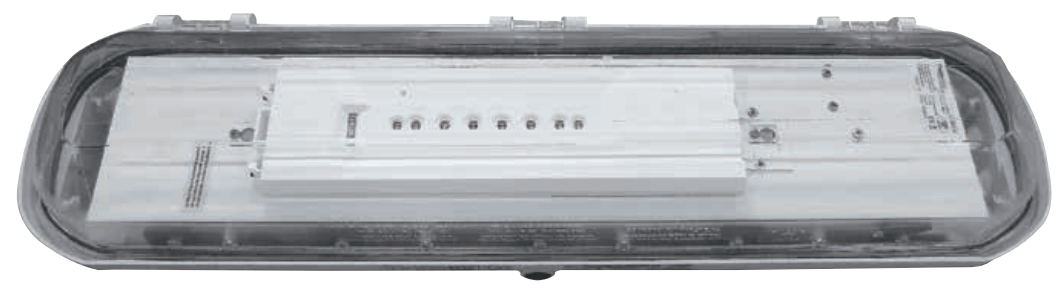

ATX FNES Series LED Bulkhead Lights manufactured by Appleton ATX provide hazardous area lighting and emergency access and exit routes during an evacuation. They are suitable for use in hazardous areas designated as Zone 2 – 21 and 22. Ideal for paper and pulp mills, oil refineries, silos or petrochemical plants.

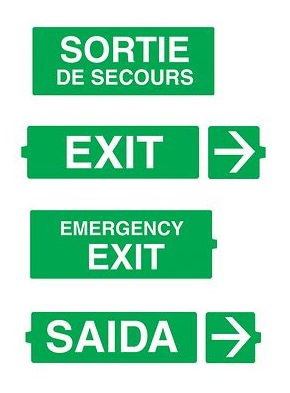

The FNES Series can be equipped with a variety of labels to indicate exit routes. These LED bulkhead lighting units are entirely self-contained, and include a built in automatic self-test system.

Features

• These LED Emergency Bulkhead Lights Operates in any position
• 1 hour duration in emergency mode
• Used as Escape Route Lighting has a lumen output of 55 lumens consuming 0.50 watts of power
• Used as Space Lighting has a lumen output of 540 lumens consuming 0.95 watts of power
• The addressable version operates without additional control lines. Communication between units and the control system is via mains borne signals that use existing electrical wiring
• The standard control system capacity of the addressable version of LED Emergency Bulkhead Lights is one control system for up to 200 emergency lighting units
• Open and close using an Allen key (size 10) or a 6 mm flat screwdriver
• Connection to the plug-in terminal block via 2 x 5 x 2.5 mm² (0.003 x 0.008 x 0.004 in²) terminals
• Two M20 clearance holes supplied with one cable gland —diameter 6.5 mm to 14.5 mm (0.26 to 0.57 in), one blanking plug and two locknuts
• Automatic built-in self-test system (SATI) with memorization of tests indicated by LEDs
• Using a microprocessor and an internal clock, the unit will carry out automatic tests
• Can be remotely controlled and checked without switching the mains off with a Legrand remote control unit
• Charge is indicated by a green LED (life time of over 10 years)
• Non-maintained

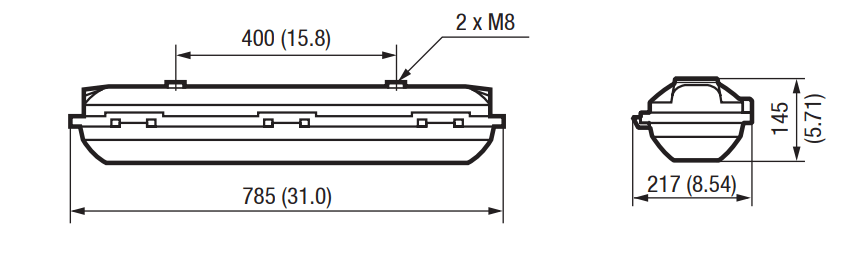

LED Emergency Bulkhead Lights specifications

• ATEX/IECEx Certifications and Compliances: Zone 2 – 21 and 22; II 2 D and II 3 GD;
• Ingress Protection & Impact Resistance Ratings: IP66/67 – IK10
• Ambient Temperature: -20 °C to +55 °C (-4°F to +131 °F)
• Electrical: Power supply 230 Vac, 50 Hz
• Flameproof Battery Pack: Escape route lighting: 2.4 V – 1.5 Ah (2 cells – Nicd). Space lighting: 7.2 V – 2.2 Ah (6 cells – NiMh)
• Standard Materials and Finishes: The body is made of fibre glass reinforced polyester with an elastomer gasket and a polycarbonate diffused lens. There are polyamide cable glands and blanking plugs and a nickel-plated brass locknut.  The Fixing brackets are manufactured from zinc plated steel, grey painted aluminum or 316 grade stainless steel
• Testing: Weekly test: Lamp check duration 6 seconds. Quarterly test: Emergency operation and lamp check for 1 hour
• Optimum operating temperature for battery is -5 °C to +30 °C (+23 °F to +86 °F)

ATX FnES LED Emergency Bulkhead Lights SELECTION TABLE

LED Emergency Lighting System Ex nA nR Unswitched Version – 1 hour duration – Non-Maintained	Appleton ATX Order Code
55lm – 230V – 50/60Hz – M20 – Escape Route Lighting	FNESLEDEU
540lm – 230V – 50/60Hz – M20 – Space Lighting	FNESLEDSLU
Label – EMERGENCY EXIT	094916

➡ View our complete range of ATEX Lighting products for Zone 1 & Zone 2 (Zone 21 & 22) hazardous area lighting applications.

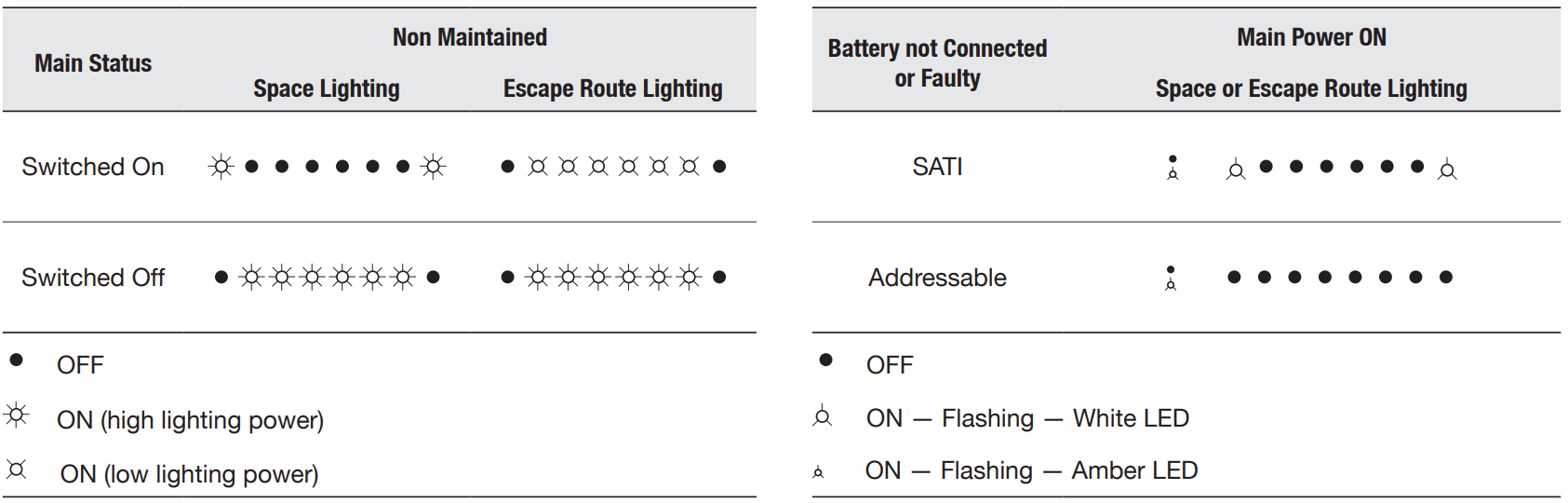

LED Emergency Bulkhead Lights – LED Indicator display

ATEX/IECEx Certifications and Compliances

• Certification Type: FLd
— Gas: Zone 1 – 2
– Conforming to ATEX 94/9/CE: II 2 G
– Type of Explosion Protection: Ex d IIC
– Temperature class: T6
— Dust: Zone 21 – 22
– Conforming to ATEX 94/9/CE: II 2 D
– Type of Explosion Protection: Ex tD A21
– Surface Temperature: T80 °C (T176 °F)
• Ambient Temperature: -40 °C to +55 °C (-40 °F to +131 °F) 
• CE Declaration of Conformity: 50203
• ATEX Certificate: LCIE 97/ ATEX 6012
• IECEx Certificate: IECEx LCI 04.0018
• Index of Protection according EN/IEC 60529: IP66/68
• Impact Resistance (shock): IK08
• Internal Volume: > 2 dm³ (122 in³) – 2 litres
• Conforming to NF AEAS
EURASEC Certification
• EURASEC N° TC RU C-FR.ГБ05.B.00912
Other Certification
• INMETRO Certificate: BVC 11.0492

Data Sheets

• Appleton ATX FNES LED Series Self-Contained Emergency Lighting System
  Download
