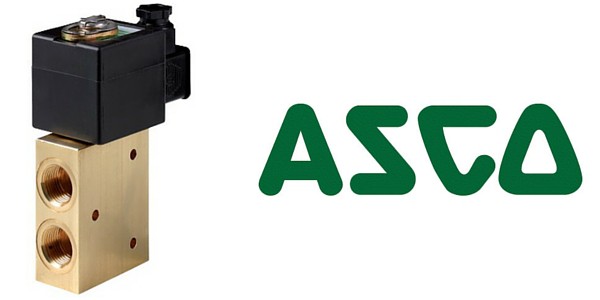

ASCO 327 Pilot Valves – Solenoid Direct Operated 3/2 Way Valve Exida Approved High Flow

ASCO 327 Pilot Valves – Direct Acting/Operating Solenoid Valves For Hazardous Areas & Potentially Explosive Atmospheres

ASCO 327 Pilot Valves – Direct Acting/Operating Solenoid Valves For Hazardous Areas & Potentially Explosive Atmospheres

ASCO 327 hazardous area solenoid valves are direct acting/operating type pilot valves suitable for hazardous areas installation with international classifications including ATEX, UL, CSA and other local approvals on request.

ASCO 327 pilot valves are available in brass or stainless steel.

3/2 ” Way Solenoid Valve

U – Universal

NC – Normally Closed Valve

NO – Normally Open Valve

Via ASCO Numatics FASTSHIP and SAMEDAY Express Delivery Service we are able to deliver 2,000+ ASCO valves from stock direct to you, this includes ASCO 327 pilot valves.

T&D are an Authorised UK Distributor for ASCO Numatics, part of Emerson Industrial Automation.

ASCO 327 Pilot Valves

  • Three way solenoid valves with orifice and pipe connections in valve body
  • Pilot valves are designed to handle relatively high pressure 3-way applications
  • ASCO 327 solenoid valves do not require a minimum operating pressure
  • ASCO 327 valve conforms to all relevant EC directives

Differential Pressure : 0 – 10 bar [1 bar = 100kPa]

Response Time : < 100 ms

Fluids Temperature Range (TS) Valve Seal Materials
Air, Inert Gas, Water, Oil – 25 to + 60°C NBR (nitrile)
– 10 to + 90°C FPM (fluoroelastomer)
– 50 to + 60°C (F)VMQ ((fluoro)sillicone)

ASCO 327 – valve FLUID CONTACT COMPATIBILITY

ASCO 327 Solenoid Valve Brass Valve Body  Stainless Steel Valve Body
Body and seat Brass AISI 316L SS
Stem Stainless Steel Stainless Steel
Core tube Stainless Steel Stainless Steel
Core and plugnut Stainless steel Stainless Steel
Springs Stainless steel Stainless Steel
Sealings & poppets NBR, FPM or (F)VMQ NBR, FPM or (F)VMQ
Rider ring PTFE PTFE

ASCO 327 – valve ELECTRICAL CHARACTERISTICS

Valve Coil Insulation Class : F

Electrical Safety : IEC 335

Standard Valve Voltages : DC (=) : 24V – 48V

AC (~) 24V – 48V – 115V – 230V/50Hz; other voltages and 60Hz are available on request

ASCO 327 –  SOLENOID VALVE SPECIFICATIONS

Pipe size Orifice size Flow coefficient Kv Operating pressure differential (bar) Power level Prefix optional solenoids ASCO Solenoid Valve Catalogue Number
Min. Max. (PS) NEMA 7&9 ATEX/IECEx IP65
air/water/(*) Ex d Ex e mb Ex mb
* (mm) (m3 /h) (l/mi ~/= ~/= EF NF WSCR EM WSCREM PV SC Brass Stainless Steel
U – Universal, NBR sealings and poppets
1/4 12 1.5 25.0 0 10 BP 327A647 327A648
1/2 12 1.5 25.0 0 10 BP 327A607 327A608
U – Universal, FPM sealings and poppets
1/4 12 1.5 25.0 0 10 BP 327A649 327A650
1/2 12 1.5 25.0 0 10 BP 327A609 327A610
U – Universal, (F)VMQ sealings and poppets
1/4 12 1.5 25.0 0 10 BP 327A645 327A646
1/2 12 1.5 25.0 0 10 BP 327A605 327A606

ASCO 327 – SOLENOID VALVE OPTIONS

Ex mb (prefix “PV”) execution can be supplied in various cable lengths.

Solenoid valves compliant with “UL”, “CSA” and other local approvals available on request.

1/2″ NPT (prefix “T”) and M20 x 1,5 (prefix “ET”) conduits (aluminium or 316 SS) available for steel solenoid housing.

Special moulded-in solid state components for peak voltage suppression and/or rectification (four diode bridge).

ASCO 327 pilot valves mounting brackets for brass body valves, suffix MB.
