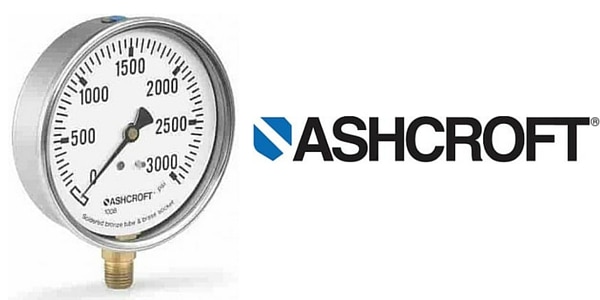

Ashcroft 1008A/AL 63/100mm Pressure Gauge

Commercial Pressure Gauges – Ashcroft are the leading pressure and temperature instrumentation manufacturer of pressure gauges, test gauges and temperature gauges.

Ashcroft 1008A/AL 63/100mm pressure gauge is used throughout process and industrial markets globally and is known for it’s reliability quality, durable, performance and safety.

The Ashcroft 1008A/AL has a sealed case that protects from ambient conditions and the pressure gauge can be used in applications that have pulsation, pressure spikes and high levels of vibration.

Ashcroft 1008A/AL 63/100mm Pressure Gauge – Applications

Pumps and Compressors
Hydraulics and Pneumatics
OEM Equipment

The Ashcroft 1008A/AL 63/100mm pressure gauge range should ideally be used in temperatures ranging from –30 to +65°C and at very low temperatures standard pressure gauges may display slow pointer response times.

Ashcroft 1008A/AL 63/100mm Pressure Gauge – Features

PowerFlex^™ movement provides superior resistance to shock, vibration and pulsation; extends product life and reduces maintenance costs
FlutterGuard^™ (option on dry gauges) reduces movement wear and eliminates pointer flutter; extends product life and allows easy gauge readability
True Zero^™ reduces reading errors by using a “zero zone” instead of conventional dial pins (posts); this ensures product safety, integrity and system control
Available dry, liquid-fill or field-fillable versions

Ashcroft 1008A/AL 63/100mm Pressure Gauge – Product Specifications

Ashcroft Model Number	Ashcroft 1008A/AL
Accuracy	ASME B40.100, Grade B, ±3-2-3%
Ranges	Vac. thru 15,000 psi and compound. Equivalent metric ranges available
Ring	304 stainless steel, crimped
Size	63mm (21⁄2˝), 100mm (4˝)
Case	304 stainless steel, dry (1008A) or liquid filled (1008AL)
Window	Polycarbonate
Pointer	Black, aluminum
Movement	Patented PowerFlex TM movement
Bourbon Tube & Socket	C-shaped Bronze (vac.-600 psi and compound) – Helical Bronze (1000 psi-6000 psi) – Helical stainless steel (10,000 psi- 15,000 psi) Socket Brass, with O-ring case seal

ASHCROFT 1008A/AL – How To Order

Here is a typical ordering example for an Ashcroft 1008A/AL pressure gauge – for technical support, specification and sales contact T&D.

Ashcroft Gauge 63-1008A-L-02L-1000#

Gauge Dial Size : 63mm (63)
Case Type Number : 1008A (1008A) _{(SS case / bronze tube / brass socket / PowerFlex movement)}
Liquid Filled Case : (L)
Connection Size/Location : 1/4″ NPT Lower (02L)
Gauge Range : 1000 psi (1000#)

Pressure Gauges – Ashcroft commercial gauges can be used to measure pressure on fire protection sprinkler pipework systems.
