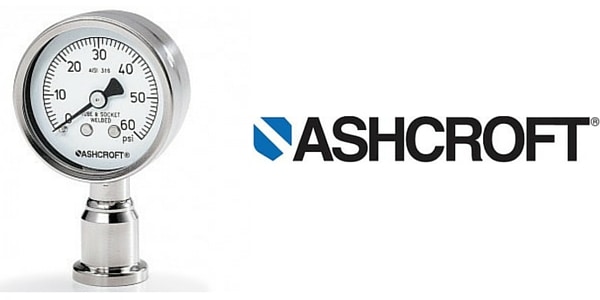

Ashcroft 1032 Fractional Sanitary Pressure Gauge

Ashcroft 1032 Fractional Sanitary Pressure Gauge

Sanitary Pressure Gauge – Ashcroft are the leading pressure and temperature instrumentation manufacturer of pressure gauges, test gauges and temperature gauges.

Ashcroft 1032 fractional sanitary pressure gauge is used throughout process and industrial markets globally and is known for it’s reliability, performance and safety.

The Ashcroft 1032 pressure gauge has been designed to withstand harsh working conditions and measure a wide range of pressure ratings.

Ashcroft 1032 Fractional Sanitary Pressure Gauge T&D provide UK and International delivery at competitive prices for the complete range of Ashcroft Pressure Gauges

Ashcroft 1032 Fractional Sanitary Pressure Gauge – Applications

  • Specialised OEM Equipment
  • Food & Dairy
  • Pharmaceutical
  • Biotech
  • Medical Equipment
  • Filtration

The Ashcroft 1032 fractional pressure gauge should ideally be used in temperatures ranging from –30 to +65°C and at very low temperatures standard pressure gauges may display slow pointer response times.

Ashcroft 1032 Fractional Sanitary Pressure Gauge – Features

  • Compact design
  • Clean or steam in place (CIP/SIP)
  • FlutterGuard™(option) reduces movement wear and eliminates pointer flutter;extends product life and allows easy gauge readability
  • Accuracy: ±3% full scale (upscale) / ±5% full scale (downscale)
  • Pressure Ranges: 30 psi thru 600 psi and compound
  • Dial size: 2″; stainless steel case
  • Tri-Clamp® fitting: 3/4″
  • Wetted material: electropolished diaphragm (12 to 20RA surface finish)
  • All-welded 316L stainless steel construction
  • Dry, liquid-filled or hermetically sealed versions

Ashcroft 1032 Pressure Gauge – Product Specifications

Ashcroft Model Number Ashcroft 1032
Accuracy 3% upscale, up to 5% downscale
Ranges 30# through 600# including vacuum/30 psi lowest.
Diaphragm Material & Surface Finish 316L SS, 12 to 20 RA electropolished
Bourdon Tube & Socket Material 316L SS
Process Connection ¾” Tri-Clamp only
Connection Location Lower only
Dial White with black markings
Dial Size 2″ diameter
Case & Ring Material 304 SS electropolished
Window Glass (acrylic and safety glass options available)
Pointer Black-painted aluminium, non-adjustable
Ring Type Stainless steel, friction fit
Movement 300 SS
System Fill USP food grade glycerin standard. Other materials available.

ASHCROFT 1032 – HOW TO ORDER

Here is a typical ordering example for an Ashcroft 1032 pressure gauge  – for technical support, specification and sales contact T&D.

Ashcroft Gauge 20-1032-S-15L-XSG-100#

  • Gauge Dial Size : 2″ (20)
  • Case Type Number : 1032 (1032)
  • Bourdon tube and socket : 316 SS (S)
  • Connection Size  : 3/4 NPT male Lower (L) (15L)
  • Option :  (XSG)
  • Gauge Range : 100 psi (100#)
