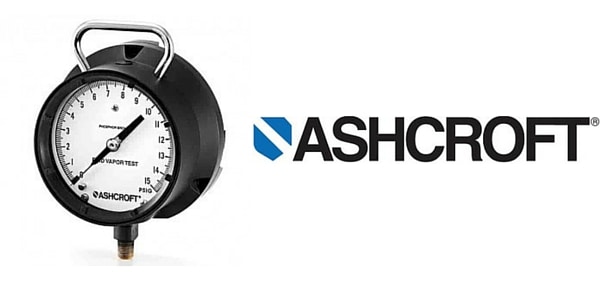

Ashcroft 1150H Reid Vapor Test Gauge
Industrial Pressure Gauges – Ashcroft are the leading pressure and temperature instrumentation manufacturer of pressure gauges, test gauges and temperature gauges.
Ashcroft 1150H Reid Vapor Test gauge is used throughout process and industrial markets globally and is known for it’s reliability, performance and safety.
The Ashcroft 1150H pressure gauge has been designed to withstand harsh working conditions and measure a wide range of pressure ratings.
Ashcroft 1150H Reid Vapor Test Gauge – Applications
- Oil & Gas
- Petroleum Vapor Pressure Measurement
The Ashcroft 1150H pressure gauge should ideally be used in temperatures ranging from –30 to +65°C and at very low temperatures standard pressure gauges may display slow pointer response times.
Ashcroft 1150H Reid Vapor Test Gauge – Features
- Integral handle allows easy station-to-station transport
- Accuracy: ±0.5% full scale (ASME B40.100 Grade 2A)
- Pressure Ranges: 15 to 1,000 psi
- Dial size: 41/2″
- Case: aluminum; solid front
- Bourdon tube / socket: phosphor bronze
Ashcroft 1150H Pressure Gauge – Product Specifications
| Ashcroft Model Number | Ashcroft 1150H |
| Accuracy | .5% ASME Grade 2A |
| Ranges | 15 – 1,000 psi |
| Connections | ¼” NPT lower |
| Ring | Aluminium, threaded |
| Dial | Black aluminium with white markings |
| Dial Size | 4½” diameter |
| Case | Cast aluminium |
| Case Style | Solid Front |
| Window | Glass |
| Pointer | Micrometer Adjustable |
| Movement | 400 SS |
| Bourbon Tube | Grade A Phosphor Bronze |
| Socket | Brass |
| Mounting | Stem |
ASHCROFT 1150H – HOW TO ORDER
Here is a typical ordering example for an Ashcroft 1150H pressure gauge – for technical support, specification and sales contact T&D.
Ashcroft Gauge : 45-1150H-02L-XXX-600#
- Gauge Dial Size : 4 1 ⁄2˝(45)
- Case Type Number : 1150H (1150H)
- Connection Size/Location : –1 ⁄4 (02) Lower (L)) (02L)
- Option : (XXX)
- Gauge Range : 600 psi (600#)
