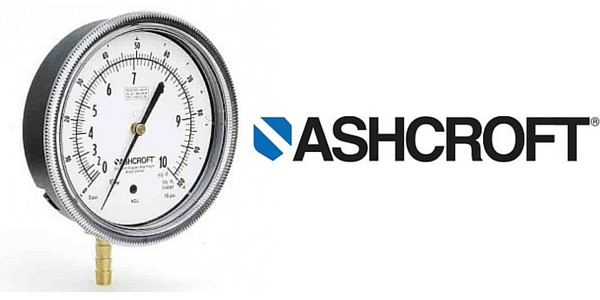

Ashcroft 1495 Low Pressure Diaphragm Receiver Gauge

Industrial Pressure Gauges – Ashcroft are the leading pressure and temperature instrumentation manufacturer of pressure gauges, test gauges and temperature gauges.

Ashcroft 1495 low pressure diaphragm receiver gauge is used throughout process and industrial markets globally and is known for it’s reliability, performance and safety.

The Ashcroft 1495 pressure gauge has been designed to withstand harsh working conditions and measure a wide range of pressure ratings.

Ashcroft 1495 Low Pressure Diaphragm Receiver Gauge – Applications

Vacuum Pumps & Ovens
Air Compressors Filters
Gas Measurement, Burners & Leak Detectors
Specialised OEM Equipment

The Ashcroft 1495 pressure gauge should ideally be used in temperatures ranging from –30 to +65°C and at very low temperatures standard pressure gauges may display slow pointer response times.

Ashcroft 1495 Low Pressure Diaphragm Receiver Gauge – Features

Re-zero screw allows quick, easy pointer adjustment
Slotted u-clamp simplifies panel mounting
Accuracy (optional): 1.00% full scale
Accuracy: ±2-1-2% full scale (ASME B40.100 Grade A)
Pressure Ranges: 3- 15 psi
Dial size: 2-1/2″ and 3-1/2″
Case: glass-filled polysulfone; open front
Diaphragm system / socket: phosphor bronze

Ashcroft 1495 Pressure Gauge – Product Specifications

Ashcroft Model Number	Ashcroft 1495
Ranges	0-100% (10 figure intervals, 1 minor graduations), 0-10 sq rt (1 figure intervals, 0.1 minor graduations), 0-10 sq rt/0-100 Linear
Connection Size	1/8″ NPT (01), ¼” NPT (02), 1/8″ inner diameter tubing hose barb (HD), 3/16″ inner diameter tubing hose barb (HE), ¼” inner diameter tubing hose barb (HF), ¼” outer diameter polytube hose barb (HG), 10-32 2B female thread (HH)
Connection Location	Lower (L), Center Back (B), Top (T), 3 o’clock (D), 9 o’clock (E)
Dial Size	2½” and 3½” diameter
Case	Glass filled polysulfone
Sensing Element	Beryllium copper diaphragm
Wetted Material	Beryllium copper, brass, polysulfone and RTV silicone

ASHCROFT 1495 – How To Order

Here is a typical ordering example for an Ashcroft 1495 pressure gauge – for technical support, specification and sales contact T&D.

Ashcroft Gauge 35-1495A-02-B-XUC-3-15 psi-Range

Gauge Dial Size : 3 1/2″ (35)
Case Type Number : 1495 and wetted material (1495A)
Connection Size : 1/4″ (02)
Connection Location : Back (B)
Variation for U-Clamp: (XUC)
Basic Model Code for 3-15# Signal: (3-15 psi)
Gauge Range : i.e 0-100%, 0-10 sq rt etc (Range)
