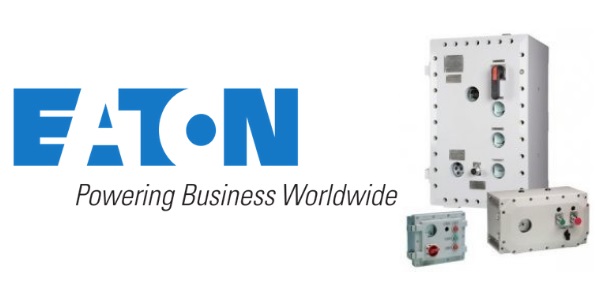

Eaton MEDC GP & JL are ATEX control & distribution junction boxes which are custom built control units that can be used individually or combined to provide hazardous area systems for indoor or outdoor use.

The hazardous area control units can be fitted with a comprehensive range of components

Eaton MEDC GP & JL

Eaton MEDC GP & JL

ATEX Detectors, Control & Distribution Units

Zone 1 & Zone 2

ATEX Detectors, Control & Distribution Units

ATEX

Features

  • Zone 1 & Zone 2 use.
  • Isolators.
  • Relays.
  • Contactors.
  • Transformers.
  • MCBs.
  • Fuses.
  • Rotary Switches.
  • Printed Circuit Boards.
  • Invertors (fan cooled).
  • PLCs.
  • Meters.
  • Indicators.
  • Pushbuttons.
  • Potentiometers.
  • RCDs (ELCBs).
  • Timers.
  • IS Components.
  • Clients’ Products.
  • 19″ Racks.
  • Fire & Gas Panels.
  • Exd.
  • ATEX approved Ex II 2G.
  • BASEEFA Certified.
  • IP65 & 66*.
  • Variety of Enclosures.
  • Variety of Covers.
  • Cast Iron, Stainless Steel & Marine Grade Alloy.
  • Component Certified.
  • Full cover width viewing window now available.

*Model dependent

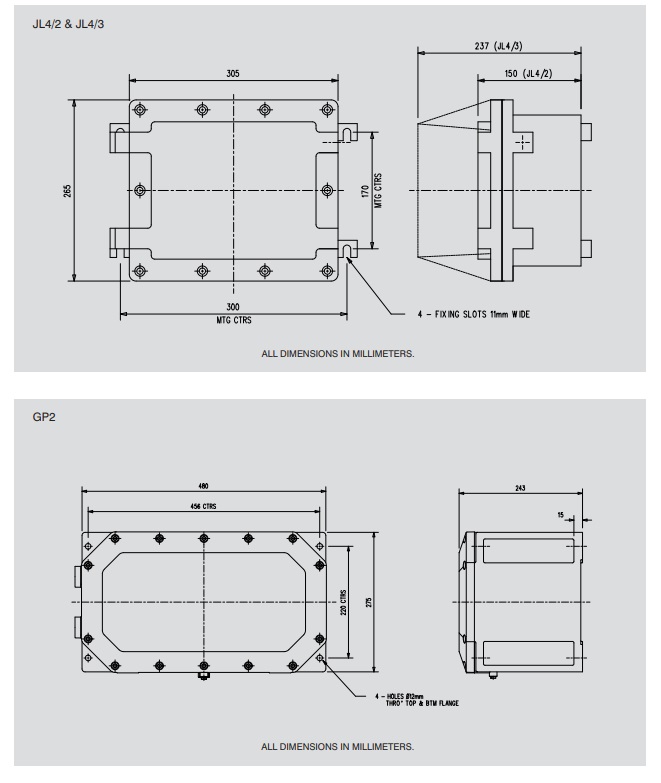

Eaton MEDC GP & JL - Dimensions

Eaton MEDC GP & JL – Dimensions

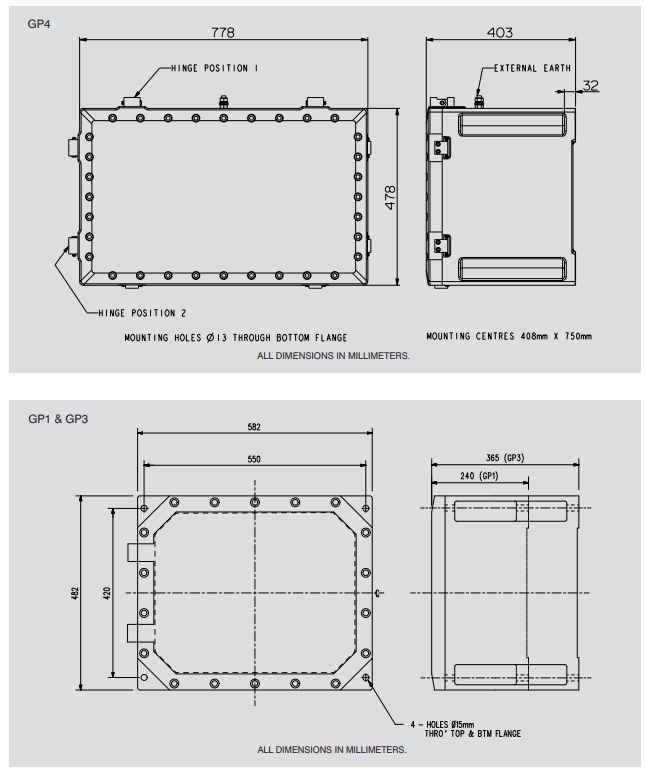

Eaton MEDC GP & JL - Dimensions

Eaton MEDC GP & JL – Dimensions

MEDC GP & JL Hazardous Area Control & Distribution Units

Technical Specification

Certification JL, GP1& GP3: Exd IIB T4/T6.
GP2 & GP4: Exd IIB Gb, Ex tb IIIC Db, IP6X.
ATEX approved.
Certified to EN50014, EN50018/EN60079-0, EN60079-1, EN60079-31.
Component approved enclosures simplify certification where clients
wish to fit their own components into the enclosures.
Material Cast iron (GP1, 2 & 3, & JL).
S/S 316 (JL4/2, JL4/3 & GP2).
Marine grade alloy LM25TE (GP2 & GP4).
Finish Corrosion resistant epoxy paint
Certified Temp GP1 & 3 = –40ºC to +40ºC/55ºC.
GP4 = –55ºC to +60ºC.
GP2 = –40ºC to +40ºC/55ºC.
JL4 = –55ºC to +40ºC/55ºC
Weight GP1 149Kg, GP3 182Kg, GP4 146Kg, GP2 70Kg, JL 40Kg.
Weight is for unpopulated enclosure and is material dependent.
Ingress Protection IP65 (note GP2, GP3 & GP4 IP66)
Entries 16, 20, 25, 32, 40, 50, 63 or M75
Isolators Up to 800 amp (AC1)
Rotary Switches Up to 24. Model dependent
Pushbutton Up to 36. Model dependent
Circuit Breakers MCB up to 63A. MCCB up to 800A. Base plated and door mounted options
Meters Mounted behind 70 or 100mm diameter windows or 80mm square
windows.
Ammeters up to 60A direct connected or via CT.
Voltmeters up to 660V.
Hours run and counters
Indicators Mounted behind Ø25mm windows.
Multiple mounted behind Ø70mm, Ø100mm windows & 80sqmm windows
Fuses Up to 660V, 200A
Contactors Up to 200kw (AC 3)
Earth Leakage Up to 200A
Transformers Up to 5KVA
Relays Up to 600V
Timers Electrical, mechanical or electro-mechanical
Support Frames Units can be supplied on free standing frames if required
Printed circuit boards 19″ rack equipment – Mounted behind 300mm x 50mm window
Additional Options PLC’s motor soft starts, contactors, invertors (VSD) up to 37KW
