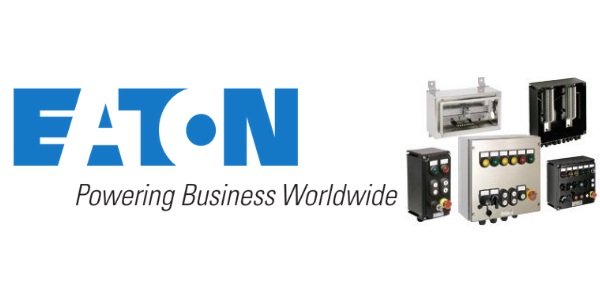

Eaton MEDC GHG 44 are ex ed ATEX control & distribution junction boxes that are available in a range of enclosure sizes, ex de components and cable entries.

Available in 316 sheet stainless steel and in GRP, these hazardous area control & distribution units offer a variety of sizes which will suit most applications.

Pushbuttons, control switches, indicating lamps, meters, potentiometers and terminals can be fitted into the enclosures. Enclosures may be coupled together to form large control panels. The enclosures are suitable for use onshore or offshore where lightweight combined with a high level of corrosion resistance is required.

Eaton MEDC GHG 44

Eaton MEDC GHG 44

ATEX Detectors, Control & Distribution Units

Zone 1 & Zone 2

ATEX Detectors, Control & Distribution Units

ATEX

Features

  • Zones 1,2 and safe area.
  • Exe IIC T6.
  • ATEX approved Ex II 2GD.
  • CSA Listed for USA & Canada.
    • Class I, Div 2, Groups A, B, C,D.
    • Class I, Zone 1, Groups A, B, C, D.
    • Class II, Div 1, Groups E, F, G.
    • AExde IIC T4, T6.
  • PTB Certified.
  • IP66.
  • Certified Temperature: –55°C to +50°C.
  • Impact resistant GRP or 316 stainless steel.
  • Retained stainless steel cover screws.
  • Variety of terminals.
  • Variety of enclosures.

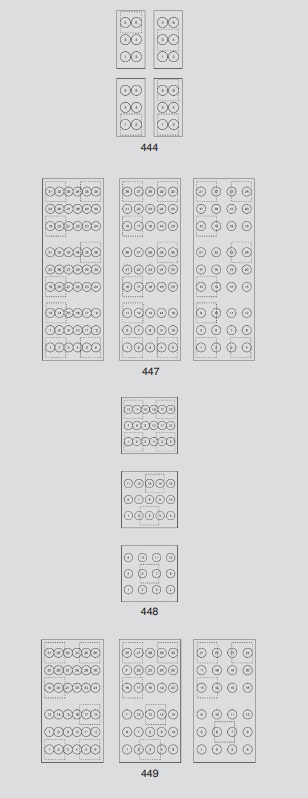

Eaton MEDC GHG 44 - Dimensions

Eaton MEDC GHG 44 – Dimensions

Eaton MEDC GHG 44

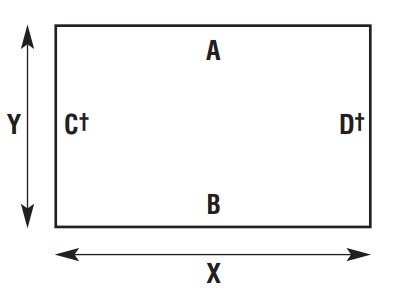

Enclosure Sizes (mm) & Weights (kg)

Eaton MEDC GHG 44

Eaton MEDC GHG 44



Box Type Dimensions (mm) Weight (kg) empty Fixing Cent X Fixing Cent Y
X Y Depth*
444 23 271 134 136 1.5 110 247
448 23 271 271 136 2.5 247 247
449 23 544 271 136 4.5 247 520
447 23 817 271 136 6.5 247 793
444 33 312.5 175 151 1.5 225 247
448 33 312.5 312.5 151 2.5 362.5 247
449 33 627 312.5 151 4.5 362.5 561.5
447 33 941.5 312.5 151 6.5 362.5 876

Note: *Depth of box only. Excludes depth of actuators or other fittings.
Fixing screw dim. Ø 7 x 11mm.

MEDC GHG 44 Hazardous Area Control & Distribution Units

Technical Specification

Hazardous Area Certification CSA Listed.†
Class I, Div 2, groups A, B, C, D
Material GRP (44…23 Range) or Stainless Steel (44…33 Range)
Finish Natural finish
Potentiometer 100Ω -10kΩ, 1 watt, max. voltage 250V
Meters 72 x 72 voltmeter or ammeter direct connected up to 30A or 1A CT
operated.
Certified Temp -4ºF to +104ºF (UL Version).
See separate European data sheet for ATEX operating temperatures
Ingress Protection IP66 (IP65 for double push button and measuring instrument).
Entries To customer specification or manufacturers standard – contact sales
office for details.
Entries are provided as clearance hole suitable for standard certified
glands unless glands are requested by customer.
†Top or bottom entries as standard – for other entries contact MEDC for
further information.
Terminals Refer to GHG 74 Range Terminal Boxes data sheet for more information
Earth Continuity Earth continuity via earth terminal. Gland continuity via brass plate (for
plastic enclosures).
Pushbuttons Standard pushbutton, double pushbutton, mushroom head latching and
momentary. Key operated actuators also available. Two sets of terminals
per contact block. 2NO, 2NC or 1NO+1NC per actuator.
Switches Two or three position, 2 pole or 4 pole.
Indicators White, yellow, red, blue and green, 20-250V AC/DC or 12-30V AC/DC.
Note clear led with coloured lens
Connection Direct to components or via terminal block if requested
