Appleton ATX JBEP171709AE10

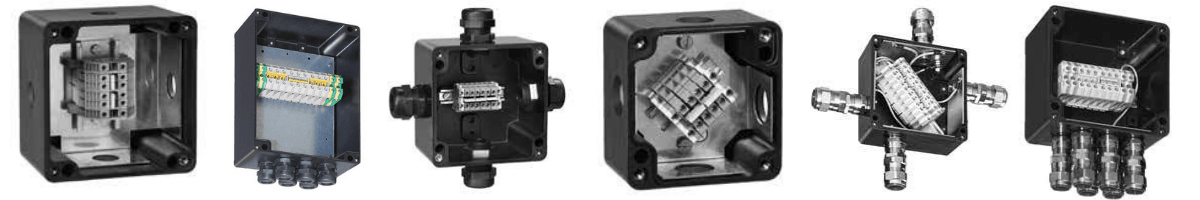

Appleton ATX JBEP Series are fibreglass reinforced polyester terminal Increased Safety junction boxes for electrical and power applications, manufactured by Appleton ATX, are factory drilled and equipped. They are ideal for lighting and distribution applications in Zone 1 and 2, 21 and 22 hazardous areas.

The enclosures feature pillar (live mantle clamping), miniature or screw terminals for use with both armored and unarmored cable. Cable glands are supplied as standard with unarmoured cable versions, and are available as an option with armoured cable versions.

The JBEP Series of Increased Safety junction boxes are designed for motor and power distribution applications in Zone 1 and 2 (Gas) and Zone 21 and 22 (Dust). These enclosures can be supplied with 16 mm² to 240 mm² terminals in multiple configurations, ideal for use in onshore and offshore wet or corrosive atmospheres such as petroleum refineries, chemical refineries and other industrial process facilities with hazardous area locations according to ATEX or IECEx.

The JBEP Series by Appleton ATX is also suitable for use in hazardous area Zone 21 or 22 areas, where flammable dusts are present either continuously or intermittently such as food processing, dairy, brewing and silos.

Appleton ATX FRP Terminal Increased Safety Junction Boxes for Electrical and Power Applications

Thorne & Derrick UK & Exports | Hazardous Area Specialists | 0191 410 4292 | +44 (0) 117 935 9421

INCREASED SAFETY JUNCTION BOXES

specifications

Product: Increased Safety Junction Box
Increased Safety Junction Box Type: Ex eb IIC Factory Drilled JBEP Polyester Junction Boxes Equipped with Screw Terminals and Earth Terminals
Manufacturer: Appleton ATX
Range: JBEP
Enclosure Type: JBEP1717090
Increased Safety Junction Box Weight: 1.54 kg | 2.63 lbs
Increased Safety Junction Box Volume: 2.63 dm³ | 160.49 in³
Increased Safety Junction Box Dimensions mm (inches):170 x 170 x 91 (6.69 x 6.69 x 3.58)
Configuration: TP + N (2PE + 2L1 + 2L2 + 2L3 + 2N + 1PE)
Equipment: 4 x M20 with earth continuity device
Terminals: 6 mm² terminals (WDU6) and earth terminals (WPE6), Rating 32 Amps, 550 Volts
Ambient Temperature: : -55 °C ≤ Ta ≤ +60 °C ( -67 °F ≤ Ta ≤ +140 °F)
ATX JBEP171709AE10 is ideal for use in Zone 1 and Zone 21 as well as Zone 2 and Zone 22 hazardous area locations
Hazardous Area Certified: ATEX & IECEx
Hazardous Area Control Stations | Hazardous Area Lighting

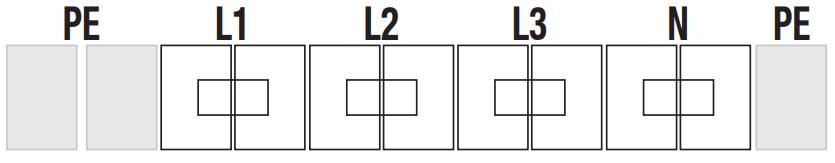

Appleton ATX JBEP171709AE10 Configuration

INCREASED SAFETY JUNCTION BOXES

APPLETON ATX ORDER CODE GUIDE

Appleton ATX JBEP171709AE10

JBE	P	08	08	06	A	E	01	T
\| Series: JBE – NEC/ CEC and ATEX/IECEx Certified Junction Box	\| Material: P – Polyester	\| Dimensions Height mm (in): 08 – 85 (3.35) 12 – 120 (4.72) 17 – 170 (6.69) 20 – 200 (7.87) 25 – 250 (9.84) 32 – 320 (12.60) 50 – 500 (19.69) 75 – 750 (29.53)	\| Dimensions Width mm (in): 08 – 85 (3.35) 12 – 120 (4.72) 17 – 170 (6.69) 21 – 215 (8.47) 25 – 250 (9.84) 32 – 320 (12.60) 50 – 500 (19.69) 75 – 750 (29.53)	\| Dimensions Depth mm (in): 06 – 60 (2.36) 09 – 91 (3.58) 09S – 91 (3.58) 10 – 95 (3.74) 15 – 150 (5.91) 23 – 230 (9.06)	\| Cable Type: A – Armored N – Non-Armored	\| Options: (Options must be listed alphabetically) E – Electrical: 2.5 mm2 (14AWG) x 10 mm2 (6AWG) P – Power: 16 mm2 (6AWG) to 240 mm2 (474MCM)	\| Suffix: 01 to 99 Assigned at Factory	\| Other Suffix: T – Mantle Clamping (Pillar Terminals)
