LED Light Fittings | Hazardous Area Lighting Zone 2 22 | ATX MLEDNA25P5BU

Appleton MLEDNA Mercmaster for use in hazardous locations defined by ATEX/IECEx

hazardous area LED LIGHT FITTINGS

mercmaster

Appleton ATX MLEDNA25P5BU

Product Category: Hazardous Area Lighting

Zone 2 (Gas) | Zone 22 (Dust) Hazardous Areas

Mercmaster LED light fittings, manufactured by Appleton ATX, deliver exceptional performance, efficiency and advanced engineering in hazardous area lighting. Designed to light hazardous areas such as parking garages, storage areas, oil refineries, chemical plants, water and sewage treatment and paper mills, using as little as 32 Watts of power.

The ATX Mercmaster LED light fitting can lower energy consumption while providing 60,000+ hours of running lamp life. The MLEDNA Mercmaster light fitting is suitable for use in wet and marine locations, making it an ideal choice for coastal locations.

In areas requiring better visibility and instant-on illumination, the range of Mercmaster LED light fittings provide a low maintenance, energy efficient solution.

Mercmaster is certified as NEC/CEC Class I, Division 2 and ATEX/IECEx Zone 2 and Zone 22 locations to provide safe and reliable lighting for hazardous area zones and explosive atmospheres.

Category: Hazardous Area Lighting
Product: LED Light Fitting
Light Fitting Type: LED
Manufacturer: Appleton ATX
Range: Mercmaster – MLEDNA
Technology: LED Lighting
Lumen Output: 9455 lumens
Voltage Range: 120-277Vac, 50/60Hz
Input Power: 95.5/92 Watts
Ambient Temperature: -40°C up to +50°C (-40°F up to +122°F)
LED Light Fitting Weight: 8.8 kg (19.4 lbs)
Colour Temperature CCT: 5650
Colour Rendering Index CRI: 70
LED Light Fitting Lamp Life: 60,000+ Hours
NEMA Type: V
Cable Entry: M20
ATX MLEDNA25P5BU is ideal for use in Zone 2 and Zone 21 and Zone 22 hazardous area locations
Hazardous Area Certified: ATEX & IECEx
Floodlights ATEX Zone 1 | Floodlights ATEX Zone 2
Light Fittings ATEX Zone 1 | Light Fittings ATEX Zone 2

Photometric Data

LED Light Fittings: Lamps: ATX Mercmaster LED, Class I, Division 2, Polycarbonate Optic

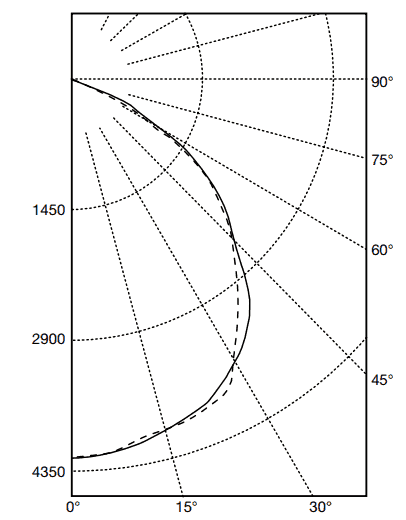

Candela Distribution

	0.0	22.5	45.0	67.5	90.0	Flux
0	4206	4206	4206	4206	4206	–
5	4170	4182	4177	4182	4170	397
15	4035	4046	4038	4046	4035	1145
25	3913	3888	3829	3888	3913	1784
35	3211	3233	3380	3233	3211	2046
45	2484	2524	2532	2524	2484	1942
55	1710	1763	1708	1763	1710	1530
65	682	564	606	564	682	568
75	20	18	17	18	20	31
85	2	1	1	1	2	2
90	1	1	0	1	1	0

Zonal Lumen Summary

Zone	Lumens	% Fixture
0-30	3326	35.2
0-40	5372	56.8
0-60	8844	93.5
0-90	9445	99.9

CIE Type – Direct

Plane	Spacing Criteria
0-Deg	90-Deg
1.2	1.2

Flameproof & Explosion Proof – What Is the Difference?

The terms flameproof and explosion proof have the terminological meaning in that the electrical equipment intended for installation into a hazardous area zone is constructed using a such a design that an internal ignition (sparking) of a flammable atmosphere (gas, vapour or dust) will not be transmitted outside of the equipment and thereby preventing the ignition of surrounding flammables in potentially explosive atmospheres.
