Chromalox SRF 5-1RG 12W/FT 120V Trace Heating Cables

Trace Heating Cables

• Manufacturer: Chromalox
• Heating Cable Range: SRF-RG
• Heating Cable Type: Self-Regulating Roof & Gutter
• Heating Cable Code: SRF 5-1RG
• Heating Cable Service Voltage: 120 Vac
• Output Wattage: 12 W/Ft.
• Buss Wire: 16 AWG, Nickel-Coated Copper
• Ground Braid: Tinned Copper Braid Under Jacket
• Approximate Heating Cable Size: 3/8″W x 1/8″H
• Minimum Bend Radius: 1-1/8″
• See Also: Trace Heating

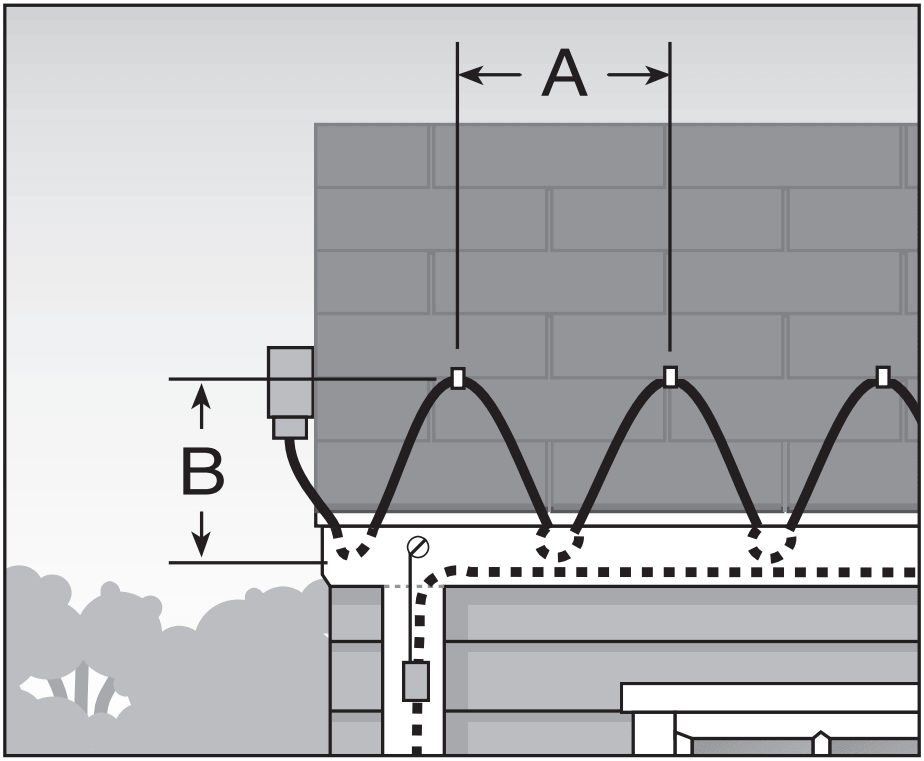

Chromalox SRF 5-1RG roof & gutter trace heating cables are self regulating and provide reliable frost protection of roofs and gutters. This range of heat trace cables are UL Listed and CSA certified.

As Chromalox SRF-RG roof & gutter trace heating cable is self-regulating, it automatically adjusts to the appropriate heat output as ambient conditions change making the cable energy efficient and cost effective.

The SRF-RG range has a protective waterproof outer jacket that is suitable for applications that are wet including downspouts and roof drains. Chromalox SRF-RG roof & gutter trace heating cable will rapidly increase its output when it comes into contact with ice or snow to provide melting power.

➡ See also : Electrical Heating for Hazardous Areas

Heat Trace Cable Ordering Information

Heat Trace Product	Use	Model	Weight/1000′ (Lbs.)	Chromalox Order Code
120V	Cable with braid & UV stabilised polyolefin jacket	SRF 5-1RG	64	386329
	Cable with braid and Teflon stabilized polyolefin jacket	SRF 5-1RGT	66	392331



Maximum circuit length (Ft.)

Start Up	120 Vac
	15A	20A	30A
40°F	185	230	270
0°F	135	180	270





Data Sheets

• Chromalox SRF-RF Roof & Gutter Trace Heating Cable | Data Sheet
  Download
