Eltherm ELW-HS Heater Cables – Trace Heating
Eltherm ELW-HS Valve & Pipe Heating Cables provide process temperature maintenance and frost protection to vessels, pipes, valves and small components up to 450° Celsius.
Please Note: This product has been discontinued. Please Contact Thorne & Derrick for an alternative!

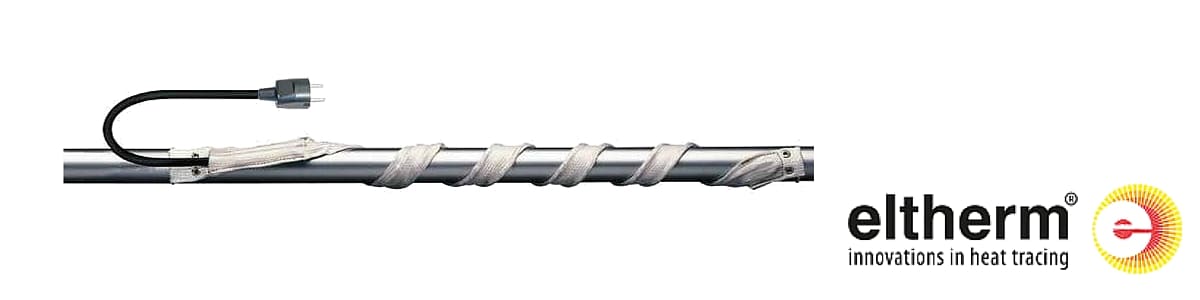

Valve & Pipe Heating Cables – eltherm ELW-HS
SPECIFICATION
- Nominal Supply Voltage : 230V
- Maximum Output : 250 w/m
- Maximum Operating Temperature : 450ºC
- Minimum Installation Temperature : Not restricted
- Dimensions: 30 x 5mm
- Minimum Heater Cable Bend Radius (Flat): 10mm
- Insulation : E-Glass Textile
- Protective Braid: 1.4301 / SS 304
- Cold Lead Length (Both Ends) : 1.2m without plug
- Moisture Proof : No
- Protection Class: I
- Manufactured According To : DIN VDE 0721 T2
- Final Inspection According To: DIN VDE 0721 T411, 1.5kV AC – 1 min
- Heating Cable Type : Resistance Valve & Pipe Heating Cables
Eltherm ELW-HS | Valve & Pipe Heating Cables – Resistance Heating Process Temperature Maintenance
Trace Heating Cable Selection Table – Eltherm ELW-HS
Contact T&D for technical guidance, heat loss calculations for pipework systems and optimum specification of the correct trace heater cable for your application.
Resistance heating cable application : frost protection and process heating.
| Eltherm ELW-HS Valve & Pipe Heating Cables Designation | Heated Length (m) | Nominal Output (W) |
| ELW-HS-0.5 | 0.50 | 126 |
| ELW-HS-0.7 | 0.70 | 180 |
| ELW-HS-1.0 | 1.00 | 250 |
| ELW-HS-1.5 | 1.50 | 375 |
| ELW-HS 2.0 | 2.00 | 490 |
| ELW-HS-2.5 | 2.50 | 622 |
| ELW-HS-3.25 | 3.25 | 768 |
| ELW-HS-4.0 | 4.00 | 987 |
| ELW-HS-5.0 | 5.00 | 1260 |
| ELW-HS-6.3 | 6.30 | 1555 |
| ELW-HS-8.0 | 8.00 | 1945 |
Other lengths of ELW-HS Valve & Pipe Heating Cables are available upon request.
Resistance Tolerance: +/- 5%
Lengths tolerance ± 2%, max ± 0.25m
Eltherm ELW-HS
Valve & Pipe Heating Cable Applications
- Heat tracing on apparatus, piping, valves and systems
- Devices and systems with high output needs
- Laboratory & research applications
Eltherm ELW-HS heating cables provide temperature maintenance and frost protection to pipework and mechanical services in all industries – typical applications include industrial and hazardous area heating of process pipework, instrument lines and storage tanks to maintain viscosity or prevent frost damage as an integral work-task of plant Winterisation.
T&D provide value-added design services for process heating using trace heating cables and systems. Heating cables using constant wattage, self-regulating, mineral insulated and resistance heating technology provide frost protection and temperature maintenance to pipework, drums, tanks, IBC’s and valves.
RESISTANCE HEATING CABLES
Eltherm resistance heating cables are manufactured from a high-resistance heating conductor, PTFE insulated with protective braid and fluoropolymer outer jacket. Powered at specific voltage the resistance heat generated by the conductors provides electrical trace heating to pipes and vessels. Resistance heating cables will “burn-out” if overlapped unlike self-regulating trace heating cables.
High temperature resistance heating cables insulated with glass fibre provide electrical heating up to 800° Celsius.
