Hazardous Area Emergency Stop Control Station Ex ATEX – EMSH/T/MG/COZ

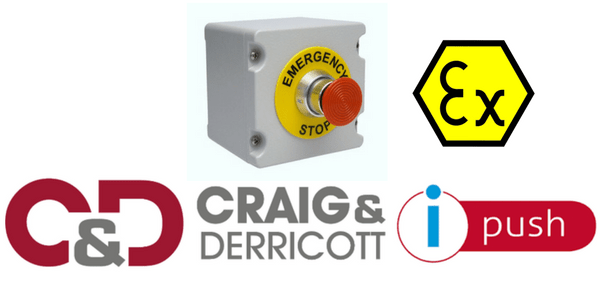

HAZARDOUS AREA Emergency STOP CONTROL STATION – ATEX CERTIFIED

CRAIG & DERRICOTT EMSH/T/MG/COZ

ATEX

ATEX Zone 22 Control Stations

  • ATEX Zone 22 Emergency Stop control station, twist-to-reset.
  • Circular yellow ‘Emergency Stop’ legend.
  • Die-cast aluminium enclosure with 2 x M20 entries & external earth.
  • Sealing to IP65
  • 1 C/O contact block
  • Electrical ratings:-
    Control Station Utilisation Category – AC15
    Rated insulation voltage (Ui) – 660V
    Rated operational voltage (Ue) – 250V/660V
    Rated operational current (Ie) – 4A/2A
    Continuous thermal current (Ith) – 10A

ATEX CERTIFICATION CODE

  • ATEX Ex II 3D
  • ATEX EX tD A22 IP65 T85oC

Hazardous area emergency stop control station complies in part or full with:  BS EN 50014, BS EN 50281-1-1, BS EN 60529, BS EN 60947-3, BS EN 60204-1

Craig & Derricott EMSH/T/MG/COZ – Dimensions

Craig & Derricott EMSH/T/MG/COZ – Dimensions

STOP / START CONTROL STATIONS

Hazardous area local control stations and push buttons including emergency stop, start and stop/start configurations are ATEX approved for Zone 1, Zone 2 and Zone 22 – specified to provide machinery control where explosion proof control stations are required for hazardous area industries including oil, gas, petrochem, food and offshore.
