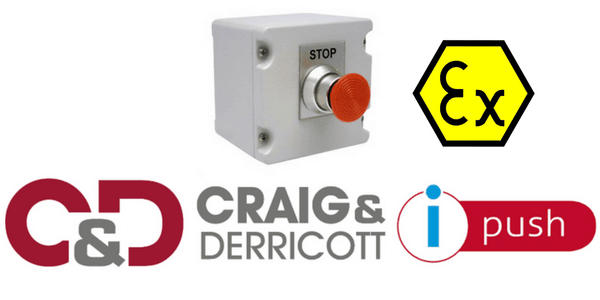

Hazardous Area Stop Control Station – ATEX Certified

Craig & Derricott STOH/M/MG/COZ

ATEX Zone 22 Control Stations

ATEX Zone 22 ‘Stop’ control station, mushroom actuator, momentary action.
‘Stop’ legend.
Die-cast aluminium enclosure with 2 x M20 entries.
External earth
4 off Ø5.5 fixings.
Sealing to IP65
1 C/O contact block
Electrical ratings:-
Control Station Utilisation Category – AC15
Rated insulation voltage(U_i) – 660V
Rated operational voltage(U_e) – 250V/660V
Rated operational current(I_e) – 4A/2A
Continuous thermal current(I_th) – 10A
IEC/EN 60947-5-1

ATEX Certification Code

ATEX Ex II 3D
ATEX EX tD A22 IP65 T85^oC

Hazardous area “stop” type control station complies in part or full with: BS EN 50014, BS EN 50281-1-1, BS EN 60529, BS EN 60947-3, BS EN 60204-1

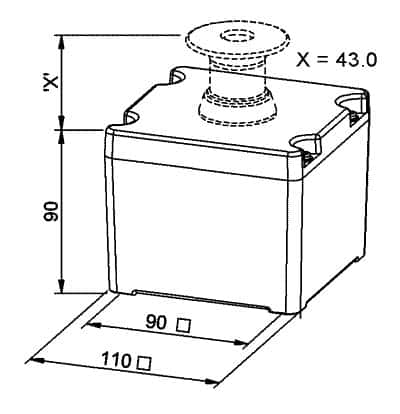

Craig & Derricott STOH/M/MG/COZ – Dimensions
