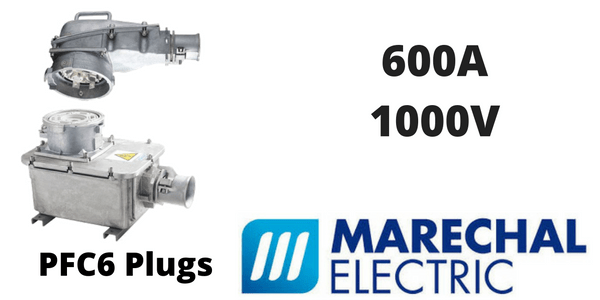

Marechal PFC6 high current plugs and socket outlets are heavy duty with current ratings of 600A. PFC6 plug and socket outlets are automatically IP66/IP67 when connected and are suitable for use in quarries, tunnel boring machines, port cranes and mining equipment.

Marechal PFC6 plugs have mechanical features such as pilot contacts designed to connect after and disconnect before the phase contacts, IK10 metal casing that is highly resistant to shock, electromagnetic interlocking mechanism, highly conductive silver butt-contacts and a safety shutter (IP4X/IPXXD socket outlet).

Marechal PFC6 Plug & Socket Outlet – Technical Specification

Rated Current (with wiring according to standard)	600A
Maximum Voltage	1000V
IP Protection Lid Closed	IP66/IP67
IP Protection Connected Plug	IP66/IP67
Shock Resistance	IK10
Ambient Temperature	-40ºC to +60ºC
Flexible Wiring (Min-Max)	95mm² – 240mm²
Stranded Wiring (Min-Max)	95mm² – 240mm²
Keying Positions	7
Auxiliary contacts (10A / 400 V)	2
Pilot contacts (10 A / 400 V)	2

Marechal Plug & Socket Outlet – Marechal PFQ3 315A 690V

The PFC6 is available in a wide range of voltages and polarity options for both female socket outlets and male inlet plugs:

380-440 V 3P+E
380-440 V 3P+N+E
660-690 V 3P+E
660-690 V 3P+N+E
1000 V 3P+E

A full range of boxes, sleeves, handles, adaptors and accessories can also be supplied. Marechal’s PF range of plugs and sockets are suitable for rated currents from 315A up to 600A and maximum voltages from 690V up to 1000V.

Marechal PF 600Amps socket outlets – Technical Features

Specification	Marechal PFQ3	Marechal PFQ4	Marechal PFC4	Marechal PFC5	Marechal PFC6
Rated Current (ln)	315 A	400 A	400 A	500 A	600 A
Umax	690 V	690 V	1000 V	1000 V	1000 V
Auxiliary Contacts available	6	6	2	2	2
Pilots contacts	2	2	2	2	2
Keying Positions (To distinguish between different power supplies & applications)	10	10	7	7	7
Ambient Temperature	-40 °C to +60 °C for all PF

Marechal PF High Current Connectors – Socket Outlet & Inlets

Voltage 50Hz	Connector Polarity	Marechal Socket Outlet (Female) PFQ6 600A Current	Marechal Inlet (Male) PFQ6 600A Current
380-440V	3P+E	4964013	4968013
380-440V	3P+N+E	4964017	4968017
660-690V	3P+E	4964193	4968193
660-690V	3P+N+E	4964197	4968197
1000V	3P+E	4964223	4968223
