Raytec SPARTAN Flood ATEX & IECEX LED Lighting
SPARTAN Flood by Raytec certified for all Zone 1, Zone 2 and Industrial lighting applications
Hazardous Area Lighting
Spartan Flood
➡ View our complete range of Zone 1 & Zone 2 ATEX & IECEx Light Fittings manufactured by Raytec and certified according to the ATEX Directive to provide safe and reliable hazardous area lighting in potentially explosive atmospheres in both onshore and offshore locations Zone 1 & 2 Flammable Gas and Zone 21 & 22 (Combustible Dust).
➡ Visit ATEX Lighting to view the complete range of hazardous area lighting.
| Raytec SPARTAN Flood Part Reference |
Raytec SPARTAN Flood Product Description |
| Zone 1/21 ATEX and IEC Ex LED Bulkhead Flood luminaires 2500 lumens | |
| Circular Beam Pattern | |
| SPX-BL24-W-1010-SB | SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 10°x10° beam Stirrup Bracket Mount |
| SPX-BL24-W-1010-EMX25 -SB | SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 10°x10° beam – Intelligent Emergency Variant (25% Output) Stirrup Bracket Mount |
| SPX-BL24-W-3030-SB | SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 30°x30° beam Stirrup Bracket Mount |
| SPX-BL24-W-3030-EMX25-SB | SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 30°x30° beam – Intelligent Emergency Variant (25% Output) Stirrup Bracket Mount |
| SPX-BL24-W-5050-SB | SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 50°x50° beam Stirrup Bracket Mount |
| SPX-BL24-W-5050-EMX25-SB | SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 50°x50° beam – Intelligent Emergency Variant (25% Output) Stirrup Bracket Mount |
| SPX-BL24-W-120120-SB | SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 120°x120° beam Stirrup Bracket Mount |
| SPX-BL24-W-120120-EMX25-SB | SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 120°x120° beam – Intelligent Emergency Variant (25% Output) Stirrup Bracket Mount |
| Elliptical Beam Pattern | |
| SPX-BL24-W-3510-SB | SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 35°x10° beam Stirrup Bracket Mount |
| SPX-BL24-W-3510-EMX25-SB | SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 35°x10° beam – Intelligent Emergency Variant (25% Output) Stirrup Bracket Mount |
| SPX-BL24-W-6025-SB | SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 60°x25° beam Stirrup Bracket Mount |
| SPX-BL24-W-6025-EMX25-SB | SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 60°x25° beam – Intelligent Emergency Variant (25% Output) Stirrup Bracket Mount |
| SPX-BL24-W-8030-SB | SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 80°x30° beam Stirrup Bracket Mount |
| SPX-BL24-W-8030-EMX25-SB | SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 80°x30° beam – Intelligent Emergency Variant (25% Output) Stirrup Bracket Mount |
| SPX-BL24-W-12050-SB | SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 120°x50° beam Stirrup Bracket Mount |
| SPX-BL24-W-12050-EMX25-SB | SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 120°x50° beam – Intelligent Emergency Variant (25% Output) Stirrup Bracket Mount |
| Zone 1/21 ATEX and IEC Ex LED Flood luminaires 5000 lumens | |
| Circular Beam Pattern | |
| SPX-FL24-W-1010 | SPARTAN Flood 24 LED, Zone 1/21, White-Light 10°x10° beam |
| SPX-FL24-W-1010-EM50 | SPARTAN Flood 24 LED, Zone 1/21, White-Light 10°x10° beam – Emergency Variant (50% Output) |
| SPX-FL24-W-3030 | SPARTAN Flood 24 LED, Zone 1/21, White-Light 30°x30° beam |
| SPX-FL24-W-3030-EM50 | SPARTAN Flood 24 LED, Zone 1/21, White-Light 30°x30° beam – Emergency Variant (50% Output) |
| SPX-FL24-W-5050 | SPARTAN Flood 24 LED, Zone 1/21, White-Light 50°x50° beam |
| SPX-FL24-W-5050-EM50 | SPARTAN Flood 24 LED, Zone 1/21, White-Light 50°x50° beam – Emergency Variant (50% Output) |
| SPX-FL24-W-120120 | SPARTAN Flood 24 LED, Zone 1/21, White-Light 120°x120° beam |
| SPX-FL24-W-120120-EM50 | SPARTAN Flood 24 LED, Zone 1/21, White-Light 120°x120° beam – Emergency Variant (50% Output) |
| Elliptical Beam Pattern | |
| SPX-FL24-W-3510 | SPARTAN Flood 24 LED, Zone 1/21, White-Light 35°x10° beam |
| SPX-FL24-W-3510-EM50 | SPARTAN Flood 24 LED, Zone 1/21, White-Light 35°x10° beam – Emergency Variant (50% Output) |
| SPX-FL24-W-6025 | SPARTAN Flood 24 LED, Zone 1/21, White-Light 60°x25° beam |
| SPX-FL24-W-6025-EM50 | SPARTAN Flood 24 LED, Zone 1/21, White-Light 60°x25° beam – Emergency Variant (50% Output) |
| SPX-FL24-W-8030 | SPARTAN Flood 24 LED, Zone 1/21, White-Light 80°x30° beam |
| SPX-FL24-W-8030-EM50 | SPARTAN Flood 24 LED, Zone 1/21, White-Light 80°x30° beam – Emergency Variant (50% Output) |
| SPX-FL24-W-12050 | SPARTAN Flood 24 LED, Zone 1/21, White-Light 120°x50° beam |
| SPX-FL24-W-12050-EM50 | SPARTAN Flood 24 LED, Zone 1/21, White-Light 120°x50° beam – Emergency Variant (50% Output) |
| SPARTAN Zone 1/21 Flood FL48 (Large) 10,000 lumens | |
| Circular Beam Pattern | |
| SPX-FL48-W-1010 | SPARTAN Flood 48 LED, Zone 1/21, White-Light 10°x10° beam |
| SPX-FL48-W-1010-EM25 | SPARTAN Flood 48 LED, Zone 1/21, White-Light 10°x10° beam – Emergency Variant (25% Output) |
| SPX-FL48-W-3030 | SPARTAN Flood 48 LED, Zone 1/21, White-Light 30°x30° beam |
| SPX-FL48-W-3030-EM25 | SPARTAN Flood 48 LED, Zone 1/21, White-Light 30°x30° beam – Emergency Variant (25% Output) |
| SPX-FL48-W-5050 | SPARTAN Flood 48 LED, Zone 1/21, White-Light 50°x50° beam |
| SPX-FL48-W-5050-EM25 | SPARTAN Flood 48 LED, Zone 1/21, White-Light 50°x50° beam – Emergency Variant (25% Output) |
| SPX-FL48-W-120120 | SPARTAN Flood 48 LED, Zone 1/21, White-Light 120°x120° beam |
| SPX-FL48-W-120120-EM25 | SPARTAN Flood 48 LED, Zone 1/21, White-Light 120°x120° beam – Emergency Variant (25% Output) |
| Elliptical Beam Pattern | |
| SPX-FL48-W-3510 | SPARTAN Flood 48 LED, Zone 1/21, White-Light 35°x10° beam |
| SPX-FL48-W-3510-EM25 | SPARTAN Flood 48 LED, Zone 1/21, White-Light 35°x10° beam – Emergency Variant (25% Output) |
| SPX-FL48-W-6025 | SPARTAN Flood 48 LED, Zone 1/21, White-Light 60°x25° beam |
| SPX-FL48-W-6025-EM25 | SPARTAN Flood 48 LED, Zone 1/21, White-Light 60°x25° beam – Emergency Variant (25% Output) |
| SPX-FL48-W-8030 | SPARTAN Flood 48 LED, Zone 1/21, White-Light 80°x30° beam |
| SPX-FL48-W-8030-EM25 | SPARTAN Flood 48 LED, Zone 1/21, White-Light 80°x30° beam – Emergency Variant (25% Output) |
| SPX-FL48-W-12050 | SPARTAN Flood 48 LED, Zone 1/21, White-Light 120°x50° beam |
| SPX-FL48-W-12050-EM25 | SPARTAN Flood 48 LED, Zone 1/21, White-Light 120°x50° beam – Emergency Variant (25% Output) |

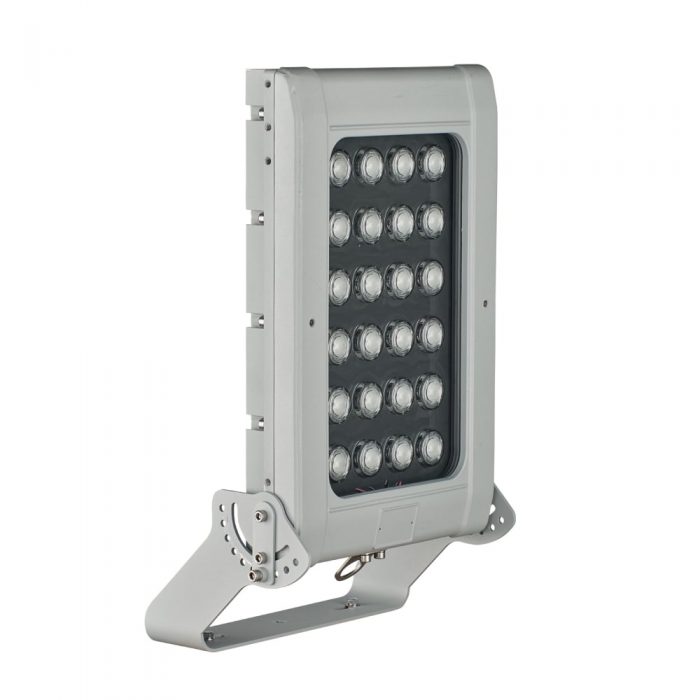

| SPARTAN High Power Flood 10,000 – 25,000 lumens | |
| Zone 1/21 ATEX and IEC Ex High Power LED Floodlight – IIB Variants | |
| SPARTAN Zone 1/21 IIB High Power Flood HPFL Circular Beam Pattern |
|
| SPX-HPFL25K-W-3030 | SPARTAN High Power Floodlight, Zone 1/21 (IIB), White-Light, 25,000 lumens 30°x30° beam |
| SPX-HPFL25K-W-6060 | SPARTAN High Power Floodlight, Zone 1/21 (IIB), White-Light, 25,000 lumens 60°x60° beam |
| SPX-HPFL25K-W-9090 | SPARTAN High Power Floodlight, Zone 1/21 (IIB), White-Light, 25,000 lumens 90°x90° beam |
| SPX-HPFL20K-W-3030 | SPARTAN High Power Floodlight, Zone 1/21 (IIB), White-Light, 20,000 lumens 30°x30° beam |
| SPX-HPFL20K-W-6060 | SPARTAN High Power Floodlight, Zone 1/21 (IIB), White-Light, 20,000 lumens 60°x60° beam |
| SPX-HPFL20K-W-9090 | SPARTAN High Power Floodlight, Zone 1/21 (IIB), White-Light, 20,000 lumens 90°x90° beam |
| SPX-HPFL15K-W-3030 | SPARTAN High Power Floodlight, Zone 1/21 (IIB), White-Light, 15,000 lumens 30°x30° beam |
| SPX-HPFL15K-W-6060 | SPARTAN High Power Floodlight, Zone 1/21 (IIB), White-Light, 15,000 lumens 60°x60° beam |
| SPX-HPFL15K-W-9090 | SPARTAN High Power Floodlight, Zone 1/21 (IIB), White-Light, 15,000 lumens 90°x90° beam |
| SPX-HPFL10K-W-3030 | SPARTAN High Power Floodlight, Zone 1/21 (IIB), White-Light, 10,000 lumens 30°x30° beam |
| SPX-HPFL10K-W-6060 | SPARTAN High Power Floodlight, Zone 1/21 (IIB), White-Light, 10,000 lumens 60°x60° beam |
| SPX-HPFL10K-W-9090 | SPARTAN High Power Floodlight, Zone 1/21 (IIB), White-Light, 10,000 lumens 90°x90° beam |
| Zone 1/21 ATEX and IEC Ex High Power LED Floodlight – IIB+H2 Variants | |
| SPARTAN Zone 1/21 IIB+H2 High Power Flood HPFL | |
| Circular Beam Pattern | |
| SPX-HPFL25K-W-3030-H2 | SPARTAN High Power Floodlight, Zone 1/21 (IIB+H2) , White-Light, 25,000 lumens 30°x30° beam |
| SPX-HPFL25K-W-6060-H2 | SPARTAN High Power Floodlight, Zone 1/21 (IIB+H2) , White-Light, 25,000 lumens 60°x60° beam |
| SPX-HPFL25K-W-9090-H2 | SPARTAN High Power Floodlight, Zone 1/21 (IIB+H2) , White-Light, 25,000 lumens 90°x90° beam |
| SPX-HPFL20K-W-3030-H2 | SPARTAN High Power Floodlight, Zone 1/21 (IIB+H2) , White-Light, 20,000 lumens 30°x30° beam |
| SPX-HPFL20K-W-6060-H2 | SPARTAN High Power Floodlight, Zone 1/21 (IIB+H2) , White-Light, 20,000 lumens 60°x60° beam |
| SPX-HPFL20K-W-9090-H2 | SPARTAN High Power Floodlight, Zone 1/21 (IIB+H2) , White-Light, 20,000 lumens 90°x90° beam |
| SPX-HPFL15K-W-3030-H2 | SPARTAN High Power Floodlight, Zone 1/21 (IIB+H2) , White-Light, 15,000 lumens 30°x30° beam |
| SPX-HPFL15K-W-6060-H2 | SPARTAN High Power Floodlight, Zone 1/21 (IIB+H2) , White-Light, 15,000 lumens 60°x60° beam |
| SPX-HPFL15K-W-9090-H2 | SPARTAN High Power Floodlight, Zone 1/21 (IIB+H2) , White-Light, 15,000 lumens 90°x90° beam |
| SPX-HPFL10K-W-3030-H2 | SPARTAN High Power Floodlight, Zone 1/21 (IIB+H2) , White-Light, 10,000 lumens 30°x30° beam |
| SPX-HPFL10K-W-6060-H2 | SPARTAN High Power Floodlight, Zone 1/21 (IIB+H2) , White-Light, 10,000 lumens 60°x60° beam |
| SPX-HPFL10K-W-9090-H2 | SPARTAN High Power Floodlight, Zone 1/21 (IIB+H2) , White-Light, 10,000 lumens 90°x90° beam |
| Zone 21 Only (Dust) ATEX and IEC Ex High Power LED Floodlight | |
| SPARTAN Zone 21 High Power Flood HPFL | |
| Circular Beam Pattern | |
| SPZ-HPFL25K-W-3030-Z21 | SPARTAN High Power Floodlight, Zone 21 Only, White-Light, 25,000 lumens 30°x30° beam |
| SPZ-HPFL25K-W-6060-Z21 | SPARTAN High Power Floodlight, Zone 21 Only, White-Light, 25,000 lumens 60°x60° beam |
| SPZ-HPFL25K-W-9090-Z21 | SPARTAN High Power Floodlight, Zone 21 Only, White-Light, 25,000 lumens 90°x90° beam |
| SPZ-HPFL20K-W-3030-Z21 | SPARTAN High Power Floodlight, Zone 21 Only, White-Light, 20,000 lumens 30°x30° beam |
| SPZ-HPFL20K-W-6060-Z21 | SPARTAN High Power Floodlight, Zone 21 Only, White-Light, 20,000 lumens 60°x60° beam |
| SPZ-HPFL20K-W-9090-Z21 | SPARTAN High Power Floodlight, Zone 21 Only, White-Light, 20,000 lumens 90°x90° beam |
| SPZ-HPFL15K-W-3030-Z21 | SPARTAN High Power Floodlight, Zone 21 Only, White-Light, 15,000 lumens 30°x30° beam |
| SPZ-HPFL15K-W-6060-Z21 | SPARTAN High Power Floodlight, Zone 21 Only, White-Light, 15,000 lumens 60°x60° beam |
| SPZ-HPFL15K-W-9090-Z21 | SPARTAN High Power Floodlight, Zone 21 Only, White-Light, 15,000 lumens 90°x90° beam |
| SPZ-HPFL10K-W-3030-Z21 | SPARTAN High Power Floodlight, Zone 21 Only, White-Light, 10,000 lumens 30°x30° beam |
| SPZ-HPFL10K-W-6060-Z21 | SPARTAN High Power Floodlight, Zone 21 Only, White-Light, 10,000 lumens 60°x60° beam |
| SPZ-HPFL10K-W-9090-Z21 | SPARTAN High Power Floodlight, Zone 21 Only, White-Light, 10,000 lumens 90°x90° beam |
| Zone 2/22 ATEX and IEC Ex LED Bulkhead Flood luminaires 2500 lumens | |
| Circular Beam Pattern | |
| SPZ-BL24-W-1010-SB | SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 10°x10° beam Stirrup Bracket Mount |
| SPZ-BL24-W-1010-EMX25 -SB | SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 10°x10° beam – Intelligent Emergency Variant (25% Output) Stirrup Bracket Mount |
| SPZ-BL24-W-3030-SB | SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 30°x30° beam Stirrup Bracket Mount |
| SPZ-BL24-W-3030-EMX25-SB | SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 30°x30° beam – Intelligent Emergency Variant (25% Output) Stirrup Bracket Mount |
| SPZ-BL24-W-5050-SB | SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 50°x50° beam Stirrup Bracket Mount |
| SPZ-BL24-W-5050-EMX25-SB | SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 50°x50° beam – Intelligent Emergency Variant (25% Output) Stirrup Bracket Mount |
| SPZ-BL24-W-120120-SB | SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 120°x120° beam Stirrup Bracket Mount |
| SPZ-BL24-W-120120-EMX25-SB | SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 120°x120° beam – Intelligent Emergency Variant (25% Output) Stirrup Bracket Mount |
| Elliptical Beam Pattern | |
| SPZ-BL24-W-3510-SB | SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 35°x10° beam Stirrup Bracket Mount |
| SPZ-BL24-W-3510-EMX25-SB | SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 35°x10° beam – Intelligent Emergency Variant (25% Output) Stirrup Bracket Mount |
| SPZ-BL24-W-6025-SB | SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 60°x25° beam Stirrup Bracket Mount |
| SPZ-BL24-W-6025-EMX25-SB | SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 60°x25° beam – Intelligent Emergency Variant (25% Output) Stirrup Bracket Mount |
| SPZ-BL24-W-8030-SB | SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 80°x30° beam Stirrup Bracket Mount |
| SPZ-BL24-W-8030-EMX25-SB | SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 80°x30° beam – Intelligent Emergency Variant (25% Output) Stirrup Bracket Mount |
| SPZ-BL24-W-12050-SB | SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 120°x50° beam Stirrup Bracket Mount |
| SPZ-BL24-W-12050-EMX25-SB | SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 120°x50° beam – Intelligent Emergency Variant (25% Output) Stirrup Bracket Mount |
| Zone 2/22 ATEX and IEC Ex LED Flood luminaires 5000 lumens | |
| Circular Beam Pattern | |
| SPZ-FL24-W-1010 | SPARTAN Flood 24 LED, Zone 2/22, White-Light 10°x10° beam |
| SPZ-FL24-W-1010-EM50 | SPARTAN Flood 24 LED, Zone 2/22, White-Light 10°x10° beam – Emergency Variant (50% Output) |
| SPZ-FL24-W-3030 | SPARTAN Flood 24 LED, Zone 2/22, White-Light 30°x30° beam |
| SPZ-FL24-W-3030-EM50 | SPARTAN Flood 24 LED, Zone 2/22, White-Light 30°x30° beam – Emergency Variant (50% Output) |
| SPZ-FL24-W-5050 | SPARTAN Flood 24 LED, Zone 2/22, White-Light 50°x50° beam |
| SPZ-FL24-W-5050-EM50 | SPARTAN Flood 24 LED, Zone 2/22, White-Light 50°x50° beam – Emergency Variant (50% Output) |
| SPZ-FL24-W-120120 | SPARTAN Flood 24 LED, Zone 2/22, White-Light 120°x120° beam |
| SPZ-FL24-W-120120-EM50 | SPARTAN Flood 24 LED, Zone 2/22, White-Light 120°x120° beam – Emergency Variant (50% Output) |
| Elliptical Beam Pattern | |
| SPZ-FL24-W-3510 | SPARTAN Flood 24 LED, Zone 2/22, White-Light 35°x10° beam |
| SPZ-FL24-W-3510-EM50 | SPARTAN Flood 24 LED, Zone 2/22, White-Light 35°x10° beam – Emergency Variant (50% Output) |
| SPZ-FL24-W-6025 | SPARTAN Flood 24 LED, Zone 2/22, White-Light 60°x25° beam |
| SPZ-FL24-W-6025-EM50 | SPARTAN Flood 24 LED, Zone 2/22, White-Light 60°x25° beam – Emergency Variant (50% Output) |
| SPZ-FL24-W-8030 | SPARTAN Flood 24 LED, Zone 2/22, White-Light 80°x30° beam |
| SPZ-FL24-W-8030-EM50 | SPARTAN Flood 24 LED, Zone 2/22, White-Light 80°x30° beam – Emergency Variant (50% Output) |
| SPZ-FL24-W-12050 | SPARTAN Flood 24 LED, Zone 2/22, White-Light 120°x50° beam |
| SPZ-FL24-W-12050-EM50 | SPARTAN Flood 24 LED, Zone 2/22, White-Light 120°x50° beam – Emergency Variant (50% Output) |
| SPARTAN Zone 2/22 Flood FL48 (Large) 10,000 lumens | |
| Circular Beam Pattern | |
| SPZ-FL48-W-1010 | SPARTAN Flood 48 LED, Zone 2/22, White-Light 10°x10° beam |
| SPZ-FL48-W-1010-EM25 | SPARTAN Flood 48 LED, Zone 2/22, White-Light 10°x10° beam – Emergency Variant (25% Output) |
| SPZ-FL48-W-3030 | SPARTAN Flood 48 LED, Zone 2/22, White-Light 30°x30° beam |
| SPZ-FL48-W-3030-EM25 | SPARTAN Flood 48 LED, Zone 2/22, White-Light 30°x30° beam – Emergency Variant (25% Output) |
| SPZ-FL48-W-5050 | SPARTAN Flood 48 LED, Zone 2/22, White-Light 50°x50° beam |
| SPZ-FL48-W-5050-EM25 | SPARTAN Flood 48 LED, Zone 2/22, White-Light 50°x50° beam – Emergency Variant (25% Output) |
| SPZ-FL48-W-120120 | SPARTAN Flood 48 LED, Zone 2/22, White-Light 120°x120° beam |
| SPZ-FL48-W-120120-EM25 | SPARTAN Flood 48 LED, Zone 2/22, White-Light 120°x120° beam – Emergency Variant (25% Output) |
| Elliptical Beam Pattern | |
| SPZ-FL48-W-3510 | SPARTAN Flood 48 LED, Zone 2/22, White-Light 35°x10° beam |
| SPZ-FL48-W-3510-EM25 | SPARTAN Flood 48 LED, Zone 2/22, White-Light 35°x10° beam – Emergency Variant (25% Output) |
| SPZ-FL48-W-6025 | SPARTAN Flood 48 LED, Zone 2/22, White-Light 60°x25° beam |
| SPZ-FL48-W-6025-EM25 | SPARTAN Flood 48 LED, Zone 2/22, White-Light 60°x25° beam – Emergency Variant (25% Output) |
| SPZ-FL48-W-8030 | SPARTAN Flood 48 LED, Zone 2/22, White-Light 80°x30° beam |
| SPZ-FL48-W-8030-EM25 | SPARTAN Flood 48 LED, Zone 2/22, White-Light 80°x30° beam – Emergency Variant (25% Output) |
| SPZ-FL48-W-12050 | SPARTAN Flood 48 LED, Zone 2/22, White-Light 120°x50° beam |
| SPZ-FL48-W-12050-EM25 | SPARTAN Flood 48 LED, Zone 2/22, White-Light 120°x50° beam – Emergency Variant (25% Output) |
