Resistance Heating Cable | Eltherm ELK-AG-L 12.0 | Factory Terminated Trace Heating Cable
Eltherm ELK-AG-L Heater Cable – Resistance Heating Process Temperature Maintenance
Eltherm ELK-AG-L resistance heating cables and tapes provide process temperature maintenance and frost protection to vessels, pipes, valves and small components up to 260° Celsius.
Please Note: This product has been discontinued. Please Contact Thorne & Derrick for an alternative!
RESISTANCE Heating Cable – ELTHERM ELK-AG-L
SPECIFICATION
- Nominal Supply Voltage : 230V
- Maximum Output : 25 w/m
- Maximum Operating Temperature : 260ºC
- Minimum Installation Temperature : -60° Celsius
- Heating Conductor Diameter: 4.1-4.8mm
- Minimum Heater Cable Bend Radius : 2.5mm x outer diameter
- Insulation : PTFE
- Protective Braid: Nickel-plated Copper
- Outer Jacket: PTFE
- Cold Lead Length (Both Ends) : 1.2m without plug
- Moisture Proof : Yes
- Protection Class: I
- Manufactured According To : DIN VDE 0253, EN 62395-1
- VDE Mark Approval: 40001594
- Heating Cable Type : Resistance Heating Cable
resistance Heating Cable – Eltherm ELK-Ag-l
Maximum heating circuit length
| Designation | Heated Length | Nominal Output (W) Temperature Max. 100°C | Eltherm Order Code | Nominal Output (W) Temperature Max. 150°C | Eltherm Order Code | Nominal Output (W) Temperature Max. 200°C | Eltherm Order Code |
| ELK-AG-L 12.0 | 12. m | 294 | 0135121 | 176 | 0135122 | 88 | 0135123 |
Other lengths of ELK-AG-L resistance heating cables are available upon request.
Resistance Tolerance: +/- 5%
All output figures are nominal values at +20ºC
Lengths tolerance ± 2%, max ± 0.25m
T&D Heat Tracing – Design And Supply Of Eltherm Heat Tracing Solutions | Contact Us on 0191 410 4292
Eltherm ELK-AG-L – Applications
- Heat tracing on tanks
- Heat tracing on vessels
- Heat tracing on filters
- Heat tracing on satellite dishes
- Heat tracing on hoppers
- Pipes, valves and pumps
- Automotive
- Tank containers
- IBC’s
- Heating hoods
Eltherm ELK-AG-L resistance heating cables provide temperature maintenance and frost protection to pipework and mechanical services in all industries – typical applications include industrial and hazardous area heating of process pipework, instrument lines and storage tanks to maintain viscosity or prevent frost damage as an integral work-task of plant Winterisation.
T&D provide value-added design services for process heating using trace heating cables and systems. Heating cables using constant wattage, self-regulating, mineral insulated and resistance heating technology provide frost protection and temperature maintenance to pipework, drums, tanks, IBC’s and valves.
RESISTANCE HEATING CABLES
Eltherm resistance heating cables are manufactured from a high-resistance heating conductor, PTFE insulated with protective braid and fluoropolymer outer jacket. Powered at specific voltage the resistance heat generated by the conductors provides electrical trace heating to pipes and vessels. Resistance heating cables will “burn-out” if overlapped unlike self-regulating trace heating cables.
High temperature resistance heating cables insulated with glass fibre provide electrical heating up to 800° Celsius.
Eltherm Heating Cables
Eltherm
Eltherm – Heating Cables, Heated Hoses, Surface Heating Mats & Drum Heaters
➡ Did you know? T&D Exports supports the global oil, gas and petrochem industries with an extensive range of Hazardous Area Electrical, Mechanical, Process & Instrumentation Equipment.
➡ Did you know? T&D also Distribute Eltherm Electrical Heated Hoses.

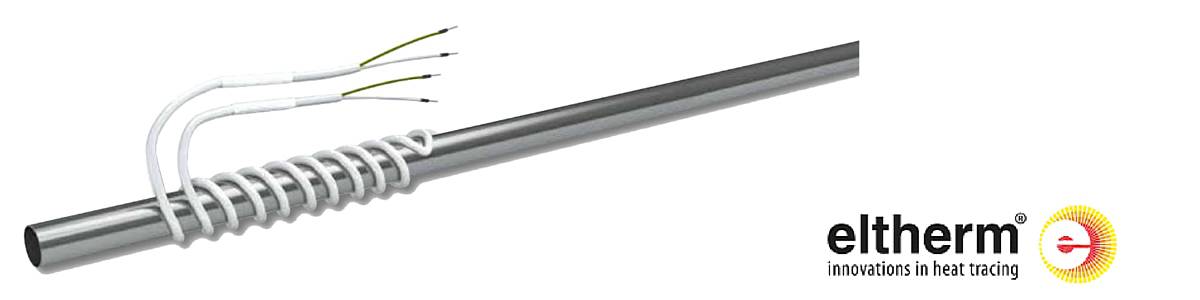

Resistance Heating Cable | Eltherm ELK-AG-L | PTFE Insulated Trace Heat Pipes, Tanks, Valves, Hoppers & IBC’s up to 260°C
