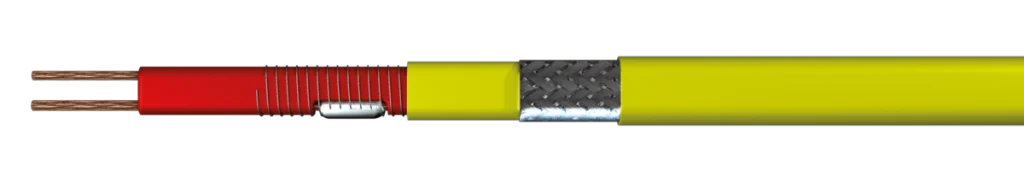

Eltherm ELP/SI Heater Cables – Trace Heating
Eltherm ELP/SI constant wattage trace heating cables and tapes provide process temperature maintenance and frost protection to pipework, instrument lines, tanks and drums up to 200° Celsius.
Frost Protection Cables
SPECIFICATION

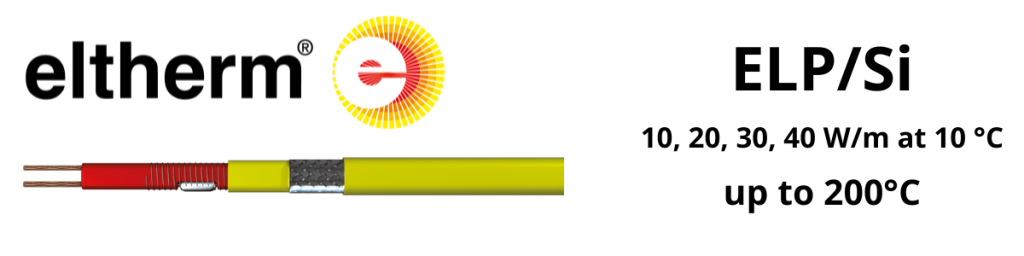

Eltherm ELP/SI Heater Cable wattages per metre – 10, 20, 30 and 40 watts.
- Nominal Supply Voltage : 230v AC/DC
- Nominal Temperature : 200ºC
- Minimum Installation Temperature : -60° Celsius
- Minimum Heater Cable Bend Radius : 30mm

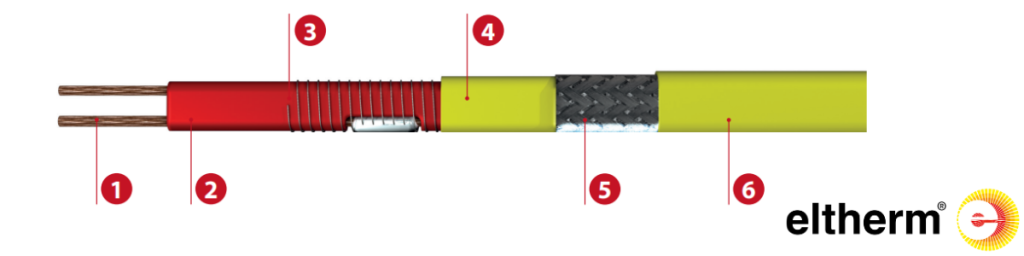

- Frost Protection Cable Insulation: Silicone
- Constant Wattage Heater Cable Outer Jacket: Silicone
- Frost Protection Cable Protective Braid: Copper
- Bus Wire Cross Section: 2 x 1.5mm²
- Is this Frost Protection Cable Moisture Proof?: Yes
Frost Protection Cables| Eltherm ELP/SI Heater Cable | Constant Wattage Process Temperature Maintenance
Frost Protection Cables Selection Table
Eltherm ELP/SI
Contact T&D for technical guidance, heat loss calculations for pipework systems and optimum specification of the correct trace heater cable for your application.
| Eltherm ELP/SI Heater Cable | Nominal Output | Cable Dimensions (mm) | Contact Spacing (m) | Cable Application |
| ELP/SI 10 BO 230 | 10 w/m | 5.25 x 9.75 | 1.0 | Frost Protection & Process Heating |
| ELP/SI 20 BO 230 | 20 w/m | 5.25 x 9.75 | 1.0 | Frost Protection & Process Heating |
| ELP/SI 30 BO 230 | 30 w/m | 5.25 x 9.75 | 1.0 | Frost Protection & Process Heating |
| ELP/SI 40 BO 230 | 40 w/m | 5.25 x 9.75 | 1.0 | Frost Protection & Process Heating |
Eltherm ELP/SI constant wattage heating cables for frost protection up to nominal voltages of 120V or 400V are available.
How Eltherm ELP/SI Heater Cables Function
Frost Protection Cables – Applications
- Vessels, piping, valves
- Food processing industry
- Frost protection and temperature maintenance on pumps, etc.
CONSTANT WATTAGE HEATING CABLES

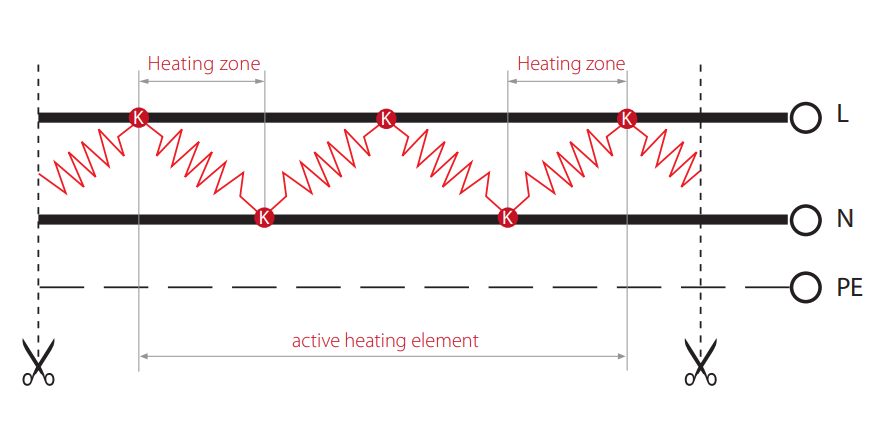

Constant wattage heating cables consist of a succession of heating zones (length = contact spacing) and can be cut to length in sections of the contact distance to the required length – when cutting heater cables into lengths, the heating circuit is interrupted up to the next contact point and this non-active part can be used as a cold lead.
Constant wattage heater cable when installed onto pipework for frost protection or process temperature maintenance must not intersect, contact or overlap to prevent overheating.
Self-regulating heating cables can be overlapped without risk of burn-out or overheating.
Eltherm ELP/PFA constant wattage heating cable is certified for use in Zone 1 & Zone 2 hazardous areas to provide process pipework heating up to 260°C.
Constant Wattage Heating Cables – Hazardous Area
Eltherm ELP/SI heating cables provide temperature maintenance and frost protection to pipework and mechanical services in all industries – typical applications include industrial and hazardous area heating of process pipework, instrument lines and storage tanks to maintain viscosity or prevent frost damage as an integral work-task of plant Winterisation.
T&D provide value-added design services for process heating using trace heating cables and systems. Constant wattage heating cables provide frost protection and temperature maintenance to pipework, drums, tanks, IBC’s and valves.
