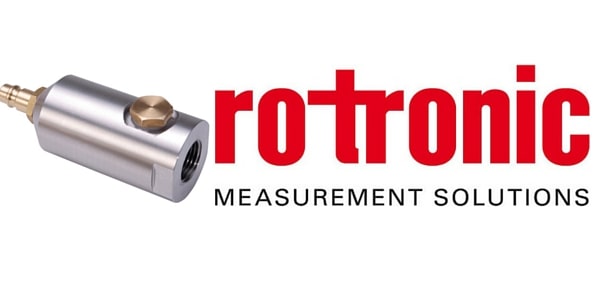

Rotronic LDP-FCSB1 Low Dew Point Measurement Chamber
Rotronic LDP-FCSB1 measurement chamber is designed for use with the HC2-LDP dew point measurement probe for reliable measurement of trace moisture.
The LDP-FCSB1 measurement chamber has a defined air flow rate and a quick connector for optimum dew point measurement in stainless steel and the base unit can be used for customisation.
Typical applications of the Rotronic HC2-LDP low dew point probe include being used in compressed air systems, refrigeration driers and adsorption driers.
Rotronic HC2-LDP Low Dew Point Probe – Key Features
- Highly accurate dew point and temperature measurement
- Withstands pressures up to 100 bar
- HYGROMER® LDP-1 sensor element
- Excellent repeatability
- Trace moisture monitoring at low limits
- With the latest AirChip4000 measurement technology
- Compatible with HF5 / HF8 / PF4 transmitters and HP22 / HP23 handhelds
Rotronic LDP-FCSB1 Technical Specifications
Dimensions | 40 x 106mm |
Weight | 610g / 570g |
Measuring Range | -50…100ºC |
Pressure Resistance | 35 bar / 100 bar (only LDP-MCS) |
Air Flow | 1 l/min at 8 bar (LDP-FCB1) |
Connection | G1/2“ thread Compressed air fitting DN 7.2 (only LDP-FC) 2 x G 1/4“ thread (only LDP-MC) |
Housing | Base Unit: Stainless steel 1.4301 Brass (fixed valve / quick connector) |
