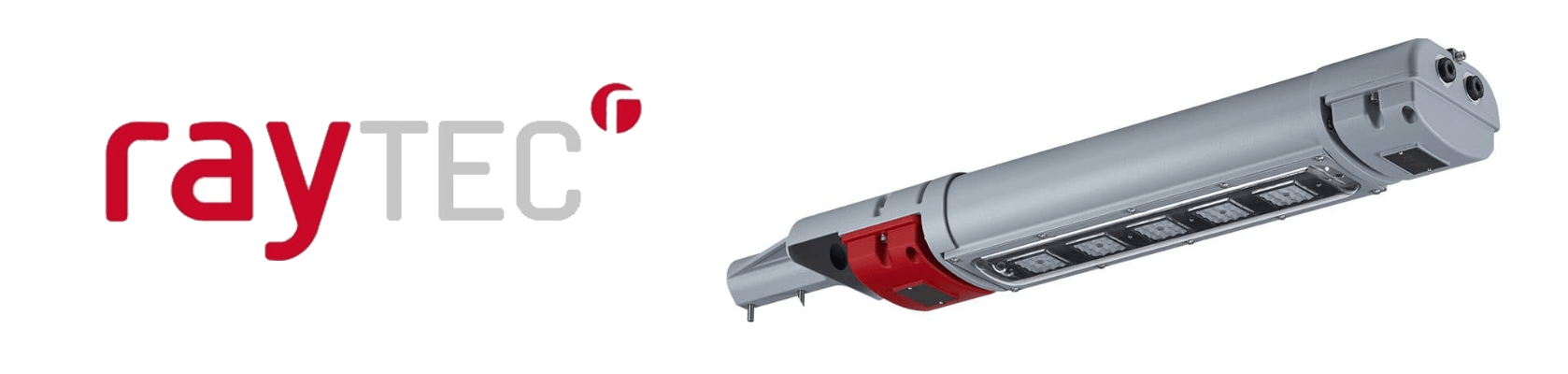

Raytec SPX-WL84-EMX25-SP | Linear Spigot Light Fitting Zone 1 & Zone 21 3,065 Lumens
Zone 1 Light Fittings ATEX, UKEX & IEC Ex Rated for Gas & Dust Explosive Atmospheres
SPARTAN Linear Emergency Spigot range of Zone 1 light fittings form part of the ATEX Lighting range manufactured by Raytec and are designed to retrofit existing fluorescent pole installations, or for new hazardous area pole mount applications. fittings or for use in new hazardous area installations.
The integrated spigot bracket is designed to fit poles up to 42mm in diameter and is fully shrouded for environmental protection. All SPARTAN luminaires are designed and manufactured in the UK and come with an industry-leading 5-year warranty.
The SPX-WL84-EMX25-SP light fittings are globally certified to Zone 1 offering long-life LED technology.
Hazardous Area Rating: Zone 1 – Gas & Dust
Zone 1 Gas
- II 2 G D
- Ex eb mb IIC T4 Gb
- Ta= -40°C to+60°C
- (-20°C to +50°C for emergency variants)
Hazardous Area T Rating – T4 (T6 available on request)
Zone 21 Dust
- Ex tb IIIC T80OC Db
- Ta= -40°C to+60°C
- (-20°C to +50°C for emergency variants)

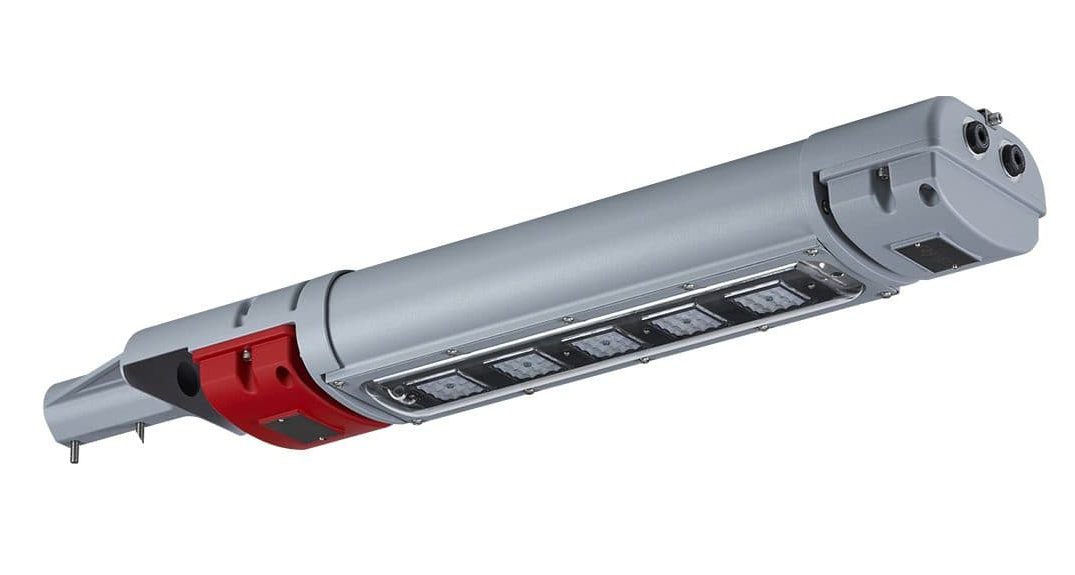

SPARTAN Linear Spigot WL84-EMX25-SP
ZONE 1 LIGHT FITTINGS
FEATURES & BENEFITS
ATEX Light Fittings
- Raytec Part Number – SPX-WL84-SP
- ATEX & IEC Ex approved – Zone 1 (Gas) & Zone 21 (Dust)
- UKCA approved
- Ultra Long Life LED
- High Lumen Output LED
- Fully Retrofittable
- Easy Installation and Maintenance
- Wide Operating Temp -20°C to +50°C
- Zone 2 Variants available
- 5 Year Warranty
- Integrated spigot bracket
- UK Designed and Manufactured
Raytec Spartan ATEX Light Fittings

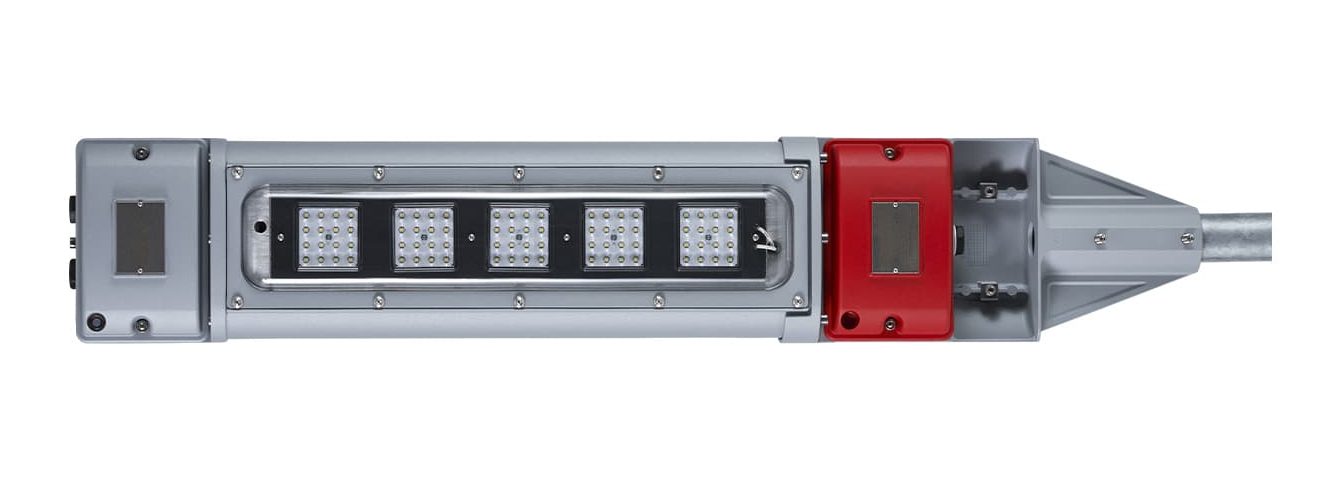

SPX-WL84-EMX25-SP
RAYTEC SPARTAN LIGHT FITTINGS
TECHNICAL SPECIFICATION
| Certification: | ATEX and IEC Ex rated for Zone 1 and 21 Gas and Dust. UKCA approved. |
| Beam Angles: | 120°C, Equivalent to 2 x 18W T8 Fluorescent Symmetrical and Asymmetrical Optics |
| Input: | 110-254V AC, 18-48V AC and 18-69V DC, 12V AC/DC |
| Consumption: | 32W |
| LED Type: | Platinum SMT LEDs |
| Number of LEDs: | 80 |
| Power Output: | Up to 3,065lm |
| Wavelength: | White-Light (6,500K+) |
| IP Rating: | IP66 and IP67 |
| IK Rating: | IK10 |
| Temperature Range: | -20°C to +50°C |
| Weight: | 7kg (15.4lbs) |
| Unit Colour: |
Silver (RAL 9006), Red (RAL3024) – Emergency battery cover |
| Mounting: |
Via 34-42mm spigot entry. Grub screws provided as standard |

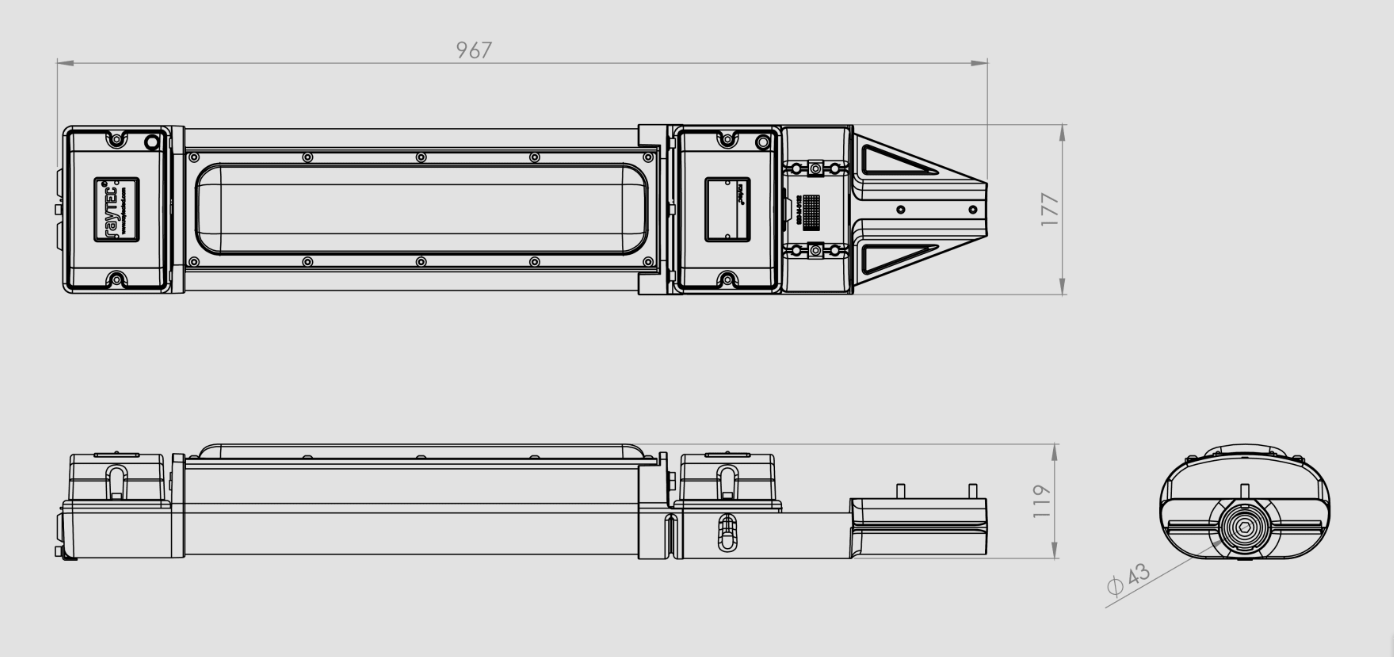

Zone 1 Emergency Light Fittings – Product Dimensions Spigot
ZONE 1 LIGHT FITTINGS PRODUCT CODES
| SPARTAN Zone 1/21 Linear SPIGOT MOUNT | |
| SPX-WL84-SP | SPARTAN Linear 80 LED, Zone 1/21, White-Light Spigot Mount |
| SPX-WL84-EMX25-SP | SPARTAN Linear 80 LED, Zone 1/21, White-Light – Intelligent Emergency variant (25% Output) Spigot Mount |
| SPX-WL84-HO-SP | SPARTAN High Output Linear 80 LED, Zone 1/21, White-Light Spigot Mount |
ATEX Lights manufactured by Raytec for use in Zone 1 and Zone 2 hazardous areas – this includes floodlights, linear light fittings, bulkheads and high bay lighting for explosion protection concepts including Ex d Flameproof and Ex e Explosion Proof applications.
SPARTAN SPX-WL84 Linear LED Zone1 21
