SPZ-WL84 | Raytec SPARTAN Linear ATEX Lighting for Zone 2 & Zone 22
The Raytec SPARTAN SPZ-WL84 Zone 2 series is engineered to deliver dependable, high-output LED lighting in hazardous areas where gas or dust may be present. Certified to ATEX, IECEx, and UKCA standards, the SPZ-WL84 is purpose-built for Zone 2 and Zone 22 environments, offering a safe and efficient solution for challenging sectors such as oil and gas, industrial, offshore, chemical, and refinery applications.
Read more…
Engineered as a direct replacement for traditional 2×18W fluorescent fittings, the SPARTAN SPZ-WL84 series offers lumen outputs up to 3,524lm, a lifetime of 10 years+, and an efficiency of up to 123 lm/W. Each fitting is built with marine-grade aluminium housing and a polycarbonate diffuser to withstand harsh and corrosive environments, while CoolXtrude™ thermal management technology ensures maximum LED performance and long service life even at high ambient temperatures (up to +55°C).
Available in three high-performance ATEX lighting variants – Standard, Emergency (SPZ-WL84-EMX25), and High Output (SPZ-WL84-HO) variants, the SPZ-WL84 range provides flexible solutions for both new installations and retrofit projects, ensuring safe, compliant, and energy-efficient hazardous area lighting with minimal maintenance requirements.
Need technical guidance or a quotation?
Talk to one of our experts today — we’ll help you get it right the first time.

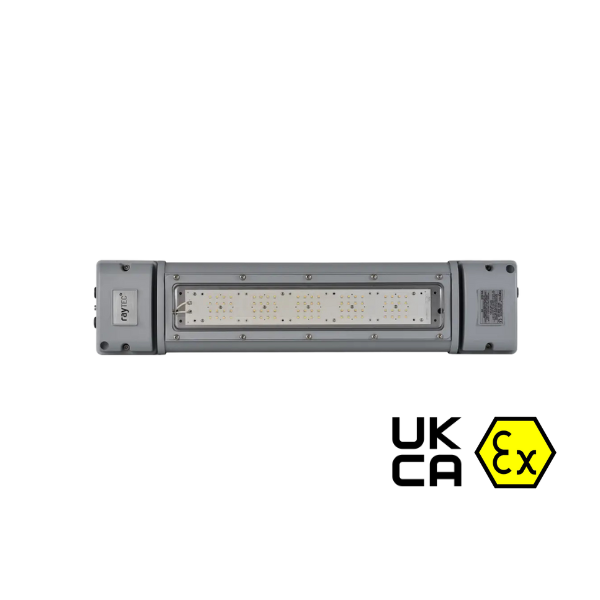

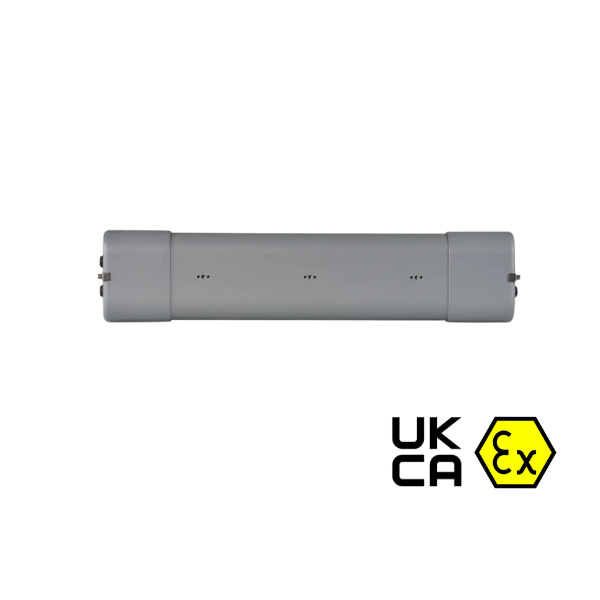

Raytec SPZ-WL84 | Linear Light Fitting Zone 2 & Zone 22
Features: ATEX, UKEX & IECEx certified, UL/CSA including C1D2, ultra long-life LED, retrofit-ready for 2×18W fluorescents, CoolXtrude™ thermal management, 5-year warranty
Standards: II 3 G D, Ex nA mc op is IIC T4 Gc, Ex tc op is IIIC T80°C Dc, UKCA Approved, Hazardous Area T Rating T4 (T6 on request)
Performance: Up to 3,524 delivered lumens, wide operating temperature -40°C to +60°C (-20°C to +50°C for emergency variants)
Applications: Zone 2 & Zone 22 hazardous area lighting, offshore platforms, refineries, chemical plants, retrofit or new installations
Installation: Same footprint, fixing centres & gland entries as common 2×18W fluorescents; easy to install & maintain
SPZ-WL84 Technical Specifications
| Certification |
ATEX & IECEx Zone 2/22 Gas and Dust, UL/CSA inc. C1D2, UKCA approved |
| Beam Angles |
120°, equivalent to 2×18W T8 fluorescent |
| Input |
Mains 110–254V AC 50/60Hz; LV option 18–48V AC / 18–69V DC; ELV option 12V AC/DC |
| Consumption |
24W |
| LED Type |
Platinum SMT LEDs (80 LEDs) |
| Power Output |
Up to 3,524 lm |
| Wavelength |
White-light (6,000K+) |
| IP Rating |
IP66 & IP67 |
| IK Rating |
IK10 |
| Temperature Range |
-40°C to +60°C |
| Weight |
6kg (13.2 lbs) |

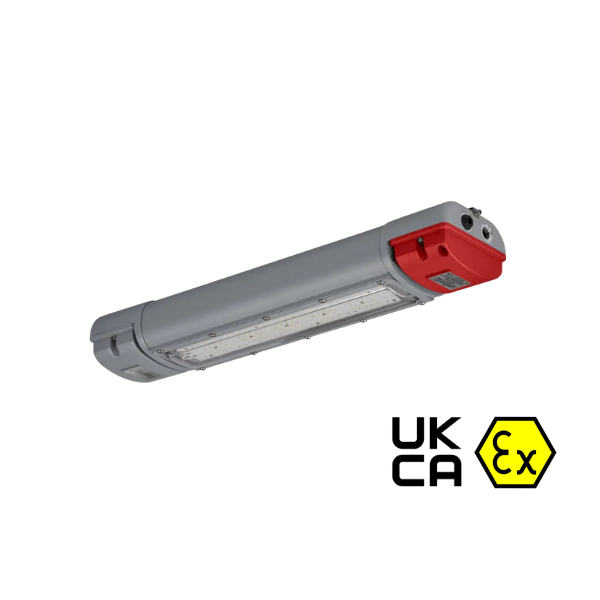

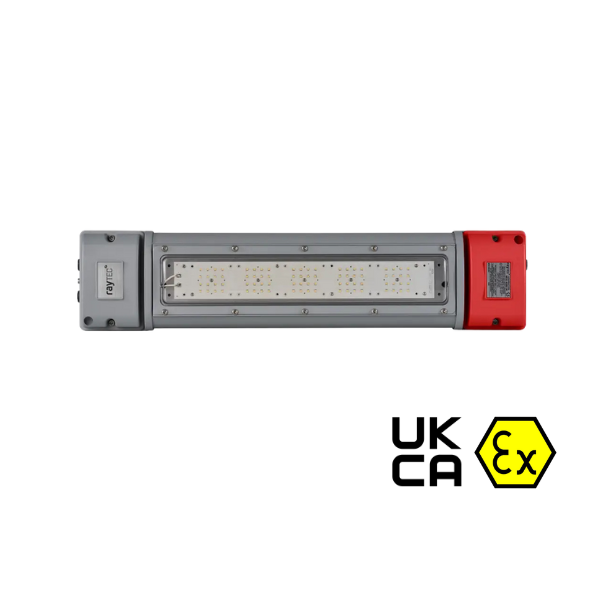

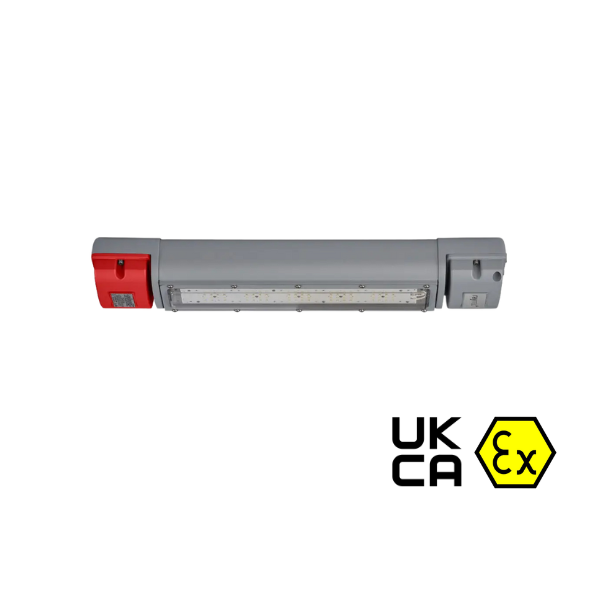

Raytec SPZ-WL84-EMX25 | Linear Emergency Light Fitting Zone 2 & Zone 22
Features: ATEX, UKEX & IECEx certified, intelligent emergency function, retrofit-ready for 2×18W fluorescents, CoolXtrude™ thermal management, 5-year warranty
Standards: II 3 G D, Ex nA mc op is IIC T4 Gc, Ex tc op is IIIC T80°C Dc, UKCA Approved, Hazardous Area T Rating T4 (T6 on request)
Performance: Up to 3,524 delivered lumens, wide operating temperature -40°C to +60°C (-20°C to +50°C for emergency variants)
Applications: Zone 2 & Zone 22 hazardous area lighting, offshore platforms, refineries, chemical plants, retrofit or new installations
Installation: Same footprint, fixing centres & gland entries as common 2×18W fluorescents; easy to install & maintain
SPZ-WL84-EMX25 Technical Specifications
| Certification |
ATEX & IEC Ex Zone 2/21/22 Gas and Dust, UL/CSA inc. C1D2, UKCA approved |
| Beam Angles |
120°, equivalent to 2×18W T8 fluorescent |
| Input |
Mains Voltage 110–254V AC 50/60Hz only |
| Consumption |
32W |
| LED Type |
Platinum SMT LEDs (80 LEDs) |
| Power Output |
Up to 3,524 lm |
| Wavelength |
White-light (6,000K+) |
| IP Rating |
IP66 & IP67 |
| IK Rating |
IK10 |
| Temperature Range |
-20°C to +50°C |
| Weight |
7kg (15.4 lbs) |
| Battery |
Ni/Cd 12V |
| Battery Duration |
Up to 3hrs @25% power (other options available) |
| Emergency Function |
Self-testing intelligent emergency |
| System Health Indicator |
Tri-colour LED indicator |
SPZ-WL84 Additional Information
SPZ-WL84 Dimensions
Technical dimension drawings for the Raytec SPARTAN SPZ-WL84 Zone 2/22 Linear LED Light Fittings. These diagrams show standard, emergency, and retrofit options.
- Body: 775 × 108 × 174 mm (30.5″ × 4.3″ × 6.9″)
- End: 174 × 188 mm (6.9″ × 4.6″)
- 1200/1295 Body (longer variant): 1295 × 108 × 174 mm (51″ × 4.3″ × 6.9″)
Raytec WL84 Zone 1 & Zone 21 Product Codes
| SPZ-WL84 |
SPARTAN Linear 80 LED, Zone 1/21, White-Light (2ft x 18W / 2ft retrofit) |
| SPZ-WL84-EMX25 |
SPARTAN Linear 80 LED, Zone 1/21, White-Light (2ft x 18W / 2ft retrofit) – Intelligent Emergency variant (25% Output) |
| SPZ-WL84-HO |
SPARTAN Linear 80 LED, Zone 1/21, White-Light (2ft x 18W / 2ft retrofit – Intelligent High Output variant |
| SPZ-WL84-HO-EMX25 |
SPARTAN Linear 80 LED, Zone 1/21, White-Light (2ft x 18W / 2ft retrofit – Intelligent High Output Emergency variant (25% Output) |
| SPZ-WL84-T6 |
SPARTAN Linear 2ft Light, T6, Zone 1/21, 2500lm (2x18W / 2ft retrofit) |
| SPZ-WL84-T6-EMX25 |
SPARTAN Linear 2ft Light, T6, Zone 1/21, 2500lm – Emergency (2x18W / 2ft retrofit) |
18–69V variants available – add -LV to the above codes
12V variants available – add -ELV to the above codes
Add -D to part code for diffused lens
Contact T&D for T5/T6 variants
Thorne & Derrick | ATEX Lighting Experts
Thorne & Derrick International are a trusted UK stockist, supplier and distributor of ATEX lighting products worldwide. Contact our experts for engineered solutions, technical advice, quotations, and fast delivery for both UK & export orders.
Our range of SPARTAN ATEX lighting, expertly engineered by Raytec for use in Zone 1 & Zone 2 hazardous areas, includes floodlights, linear light fittings, bulkheads, high bay light fittings and crane luminaires. The SPARTAN range also features variants suitable for Ex d Flameproof and Ex e Explosion Proof applications.
