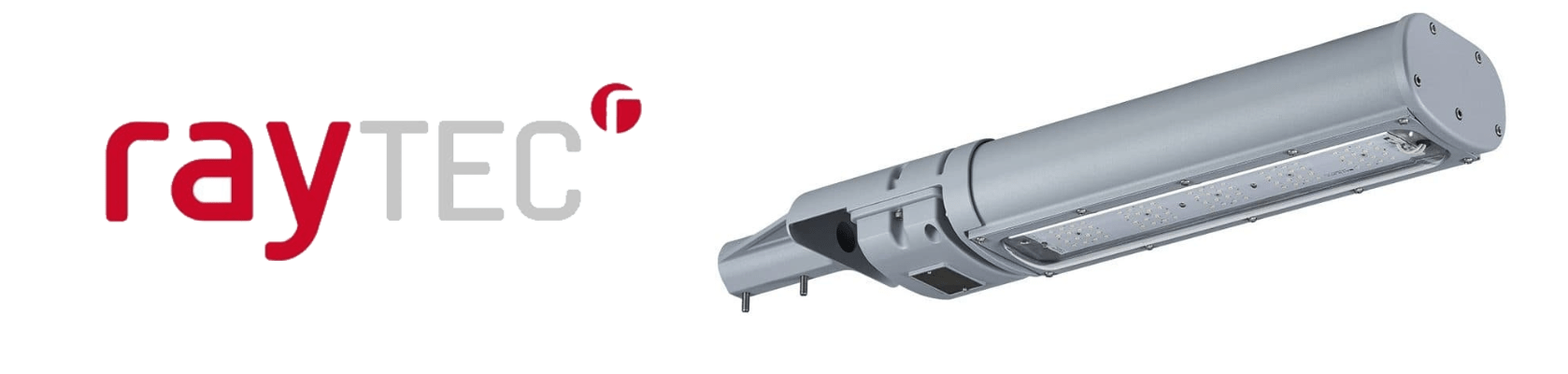

Raytec SPZ-WL84-SP | Linear Spigot Light Fitting Zone 2 & Zone 22 3,524 Lumens

Zone 2 Light Fittings ATEX, UKEX & IEC Ex Rated for Gas & Dust Explosive Atmospheres

SPARTAN Linear Spigot range of Zone 2 light fittings form part of the ATEX Lighting range manufactured by Raytec and are designed to retrofit existing fluorescent pole installations, or for new hazardous area pole mount applications. fittings or for use in new hazardous area installations.

The integrated spigot bracket is designed to fit poles up to 42mm in diameter and is fully shrouded for environmental protection. All SPARTAN luminaires are designed and manufactured in the UK and come with an industry-leading 5-year warranty.

The SPZ-WL84-SP light fittings are globally certified to Zone 2 offering long-life LED technology.

Hazardous Area Rating: Zone 2 – Gas & Dust

Zone 2 Gas

II 3 G D
Ex nA mc op is IIC T4 Gc
Ta= -40°C to +60°C (-20°C to +50 for emergency variants)

Hazardous Area T Rating – T4 (T6 available on request)

Zone 22 Dust

Ex tc op is IIIC T80°C Dc
Ta= -40°C to +60°C (-20°C to +50°C for emergency variants)

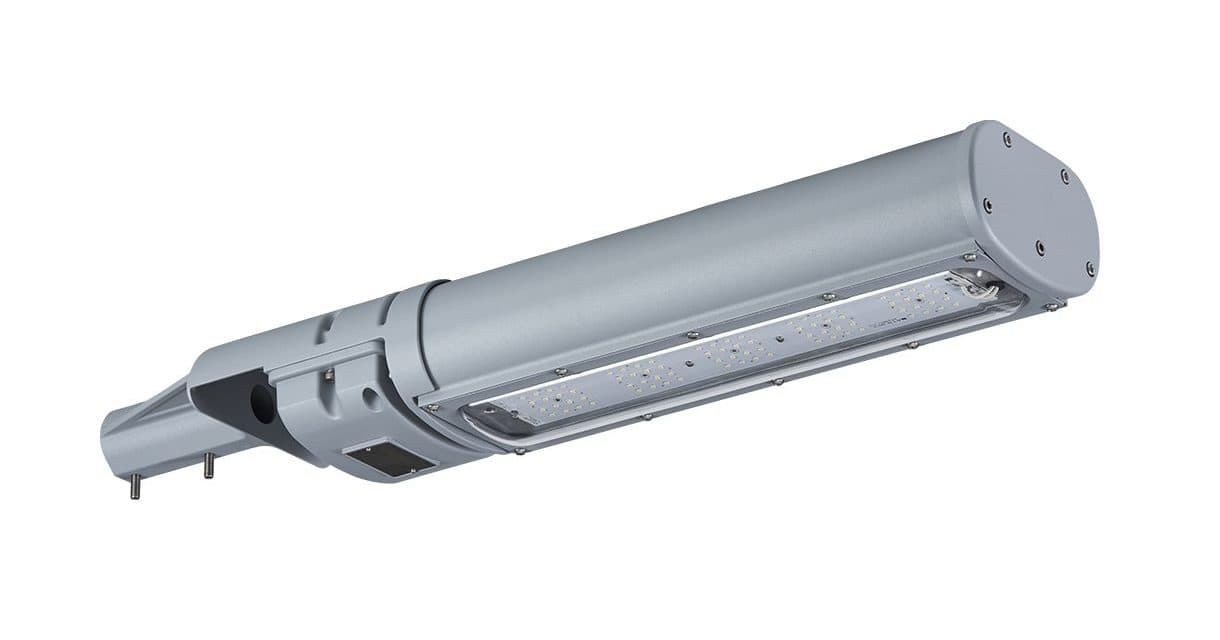

SPARTAN Linear Spigot WL84-SP

ZONE 2 LIGHT FITTINGS

FEATURES & BENEFITS

ATEX Light Fittings

Raytec Part Number – SPZ-WL84
ATEX & IEC Ex approved – Zone 2 (Gas) & Zone 21 (Dust)
UL/CSA approved including C1D2 and ABS
UKCA approved
Ultra Long Life LED
High Lumen Output LED
Fully Retrofittable
Easy Installation and Maintenance
Emergency Variants
Wide Operating Temp -40° to +60°
Zone 1 Variants available
5 Year Warranty
UK Designed and Manufactured

Raytec Spartan ATEX Light Fittings

Raytec SPARTAN Light Fittings

Technical Specification

Certification:	ATEX and IEC Ex rated for Zone 2/22 Gas and Dust, and UL/CSA inc. C1D2. UKCA approved.
Beam Angles:	120°, Equivalent to 2 x 18W T8 Fluorescent
Input:	Mains Voltage 110-254V 50/60 Hz AC only Low Voltage Option 18-48V AC/ 18-69V DC and Extra Low Voltage Option 12V AC/DC
Consumption:	29W
LED Type:	Platinum SMT LEDs
Number of LEDs:	80
Power Output:	Up to 3,524lm
Wavelength:	White-Light (6,500K+)
IP Rating:	IP66 and IP67
IK Rating:	IK10
Temperature Range:	-40°C to +55°C
Weight:	6kg (13.2lbs)

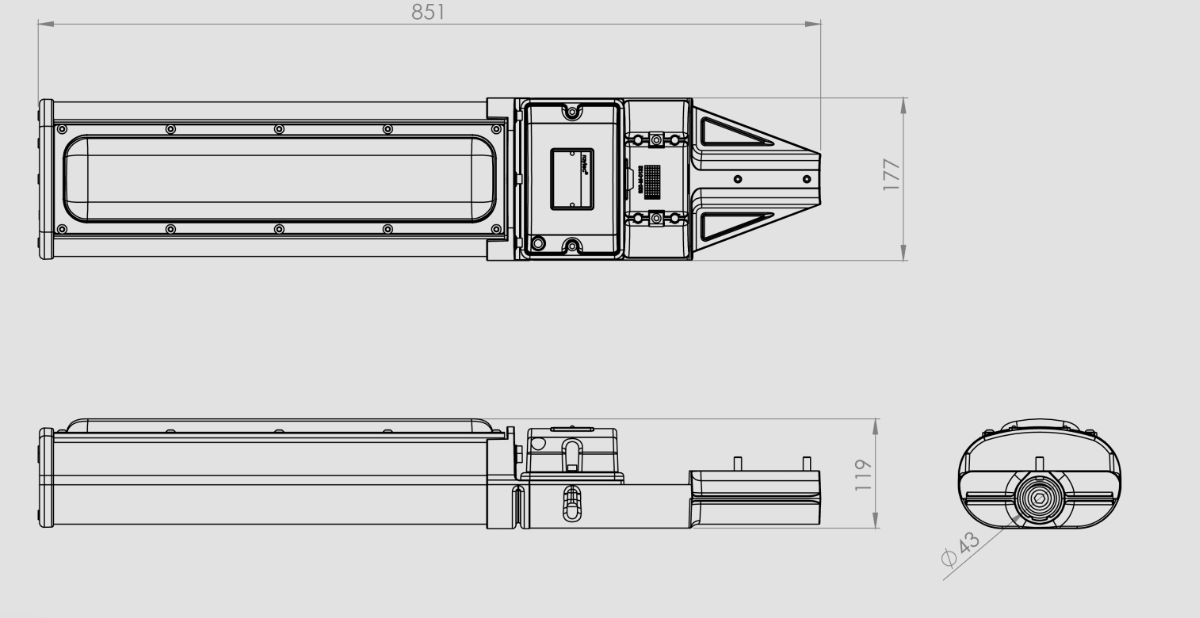

Zone 2 Light Fittings – Product Dimensions Spigot

ZONE 2 LIGHT FITTINGS PRODUCT CODES

SPARTAN Zone 2/22 Linear SPIGOT MOUNT
SPZ-WL84-SP	SPARTAN Linear 80 LED, Zone 2/22, White-Light Spigot Mount
SPZ-WL84-EMX25-SP	SPARTAN Linear 80 LED, Zone 2/22, White-Light – Intelligent Emergency variant (25% Output) Spigot Mount
SPZ-WL84-HO-SP	SPARTAN High Output Linear 80 LED, Zone 2/22, White-Light Spigot Mount

ATEX Lights manufactured by Raytec for use in Zone 1 and Zone 2 hazardous areas – this includes floodlights, linear light fittings, bulkheads and high bay lighting for explosion protection concepts including Ex d Flameproof and Ex e Explosion Proof applications.
