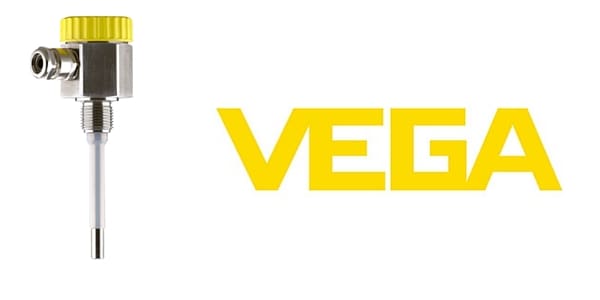

VEGA EL 1 Conductive Level Switch
VEGA Level Switch
Level Switch VEGA EL 1
VEGA EL 1 conductive level switch provides level measurement for conductive liquids.
EL 1 level switch is best suited for applications such as overfill and dry run protection in conjunction with VEGATOR 256C or VEGATOR 632 signal conditioning instruments.
The universal level switch offers high flexibility thanks to the shortenable probe, low maintenance costs through robust design and simple installation in narrow space applications through small sensor dimensions.
VEGA EL 1 Conductive Level Switch
Product Specifications
| Measuring Range – Distance | Process pressure | Process Temperature | Level Switch Protection Rating | Ambient Temperature | Hazardous Area ATEX |
| – | 1 – 63 bar | -50 – 130°C | IP66/IP67 | -40 to 80 °C |  Yes, VEGA EL 1 is suitable for hazardous areas
(see ATEX download). |
EL Level Switch hazardous area certifications
EL 1 conductive level switch is available with hazardous area certifications to meet ATEX directive for Zone 1 and Zone 2 installations.
ATEX APPROVALS
ATEX II 1G, 1/2G, 2G Ex ia IIC T6
ATEX II 1G, 1/2G, 2G Ex ia IIC T6 + WHG
VEGA LEVEL SWitch – EL 1 FEATURES
FunctioN
The instruments are used for level detection in conductive liquids. A VEGATOR 256 C or 632 is required for operation of the conductive probe. When the probe is immersed, a slight alternating current flows and is detected, evaluated and converted into a switching command by the signal conditioning instrument. The switching point is determined via the mounting position or the length of the respective probe.
Materials
The wetted parts of the instrument are made of stainless steel and the probe insulation is made of PTFE.
Housings
The level switch housing is made of plastic (IP66) or aluminum (IP66/IP67)
ELECTRONICS
The probe is operated with external processing. The connected signal conditioning instrument powers the probe and provides a switching signal.
VEGA LEVEL SWITCHES – EL
EL level switches provide level measurement for conductive liquids and are used in all many applications such as overflow protection, pump control or dry run protection. Â A small alternating current begins to flow when the electrodes of the conductive level switch come in to contact with a conductive fluid. The electronics then triggers a switching command. VEGA is a global manufacturer of process and hazardous area instrumentation.
Thorne & Derrick provide Process Measurement and Instrumentation systems for level measurement, flow measurement, temperature measurement and pressure measurement.
Thorne & Derrick can provide expert technical advice, specification guidance and competitive quotations for VEGA sensors from stock. Contact us for support on industrial and hazardous area flow measurement.
VEGA Level Switches : Measurement of level, point level, pressure, flow and density
Thorne & Derrick provide Process Measurement and Instrumentation systems for level measurement, flow measurement, temperature measurement and pressure measurement.
