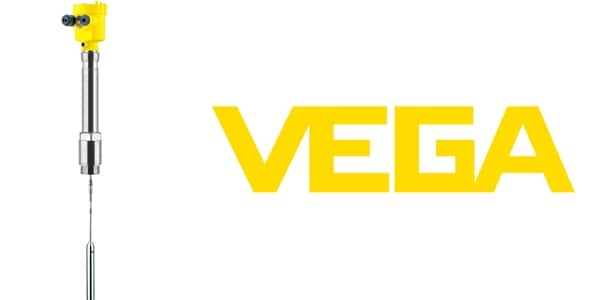

Level Sensor VEGA VEGAFLEX 66
VEGA VEGAFLEX 66 guided wave radar level sensor provides continuous level measurement for liquids and bulk solids at high pressures up to 400 bar and temperatures up to 400 °C.
VEGAFLEX 66Â level sensor provides accurate and dependable measurements that are unaffected by dust, steam, buildup and condensation.
The level sensor provides a high spec solution for advanced applications in industries such as the chemical, petrochemical and power generation
The set up is simple and the level sensor has low maintenance costs thanks to the proven mechanical construction.
VEGA VEGAFLEX 66 Guided Wave Radar Level Sensor
Product Specifications
| Measuring Range – Distance | Process Pressure | Process Temperature | Level Sensor Accuracy | Ambient Temperature | Hazardous Area ATEX
Level Sensor |
| 60 m | 1 – 400 bar | -196 – 400°C | ± 3 mm | -40 to 70 °C |  Yes, VEGA VEGAFLEX 66 is suitable for hazardous areas
(see ATEX download). |
VEGAFLEX 66 Level Sensor Hazardous area Certifications
VEGAFLEX 66 guided wave radar level sensor is available with hazardous area certifications to meet ATEX & IECEx directives for Zone 1 and Zone 2 installations.
ATEX Approvals
ATEX II 1G, 1/2G, 2G EEx ia IIC T6
ATEX II 1G, 1/2G, 2G EEx ia IIC T6 + WHG
ATEX II 1/2G, 2G EEx d ia IIC T6
ATEX II 1/2G, 2G EEx d ia IIC T6 + WHG
VEGA level sensors are suitable for use in hazardous areas and their instruments also have various ship approvals such as e.g. DNV, GL, LRS or ABS.
VEGA LEVEL SENSOR – VEGAFLEX 66 FEATURES
FunctioN
High frequency microwave pulses are coupled onto a cable or rod and guided along the probe. The pulse is reflected by the product surface. The time from emission to reception of the signals is proportional to the level in the vessel.
Materials
The wetted parts of the instrument are made of stainless steel and the instrument seal is made of one of the following FKM, FFKM or EPDM.
Housings
The level sensor housings are available as double chamber version in plastic, stainless steel or aluminium with protection ratings up to IP66/IP67.
ELECTRONICS
VEGA sensors are available in different electronics versions. Apart from the two-wire electronics with 4 … 20 mA/HART, there are two pure digital versions with Profibus PA and Foundation Fieldbus possible as well as one version for connection to a signal conditioning instrument.
 Signal Output
- 4 -20 mA/HART in two-wire
- 4 -20 mA/HART Â in four-wire
- Profibus PA
- Foundation Fieldbus technology
VEGA LEVEL SENSORS – veGAFLEX
VEGAFLEX level sensors provide level measurement for bulk solids, liquids and separation layers (interfaces). In guided wave radar level measurement, microwave pulses are conducted along a cable or rod probe and reflected by the product surface. The measuring probe of the TDR sensor ensures that the signal reaches the medium without disruption. VEGA is a global manufacturer of process and hazardous area instrumentation.
Thorne & Derrick provide Process Measurement and Instrumentation systems for level measurement, flow measurement, temperature measurement and pressure measurement.
Thorne & Derrick can provide expert technical advice, specification guidance and competitive quotations for VEGA sensors from stock. Contact us for support on industrial and hazardous area flow measurement.
