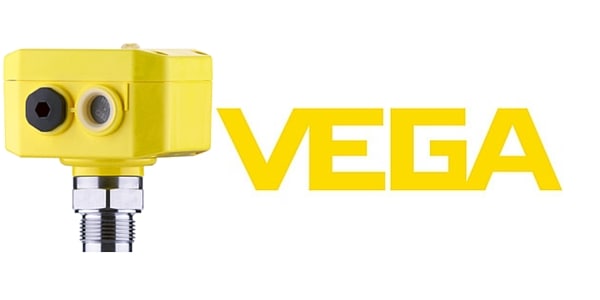

VEGA VEGAKON 61 Conductive Level Switch
VEGA Level Switch
Level Switch VEGA VEGAKON 61
VEGA VEGAKON 61 conductive level switch provides level measurement for conductive liquids.
VEGAKON 61Â level switch is best suited as full and empty detector in pipelines.
The mechanical construction of the probe ensures minimum maintenance requirements as it isn’t affected by build up and the front flush mounting allows optimum changeability.
The conductive limit switch is cost effective and time efficient as setup doesn’t require adjustment with medium.
VEGA VEGAkon 61 Conductive Level Switch
Product Specifications
| Measuring Range – Distance | Process pressure | Process Temperature | Level Switch Protection Rating | Ambient Temperature |
| – | 1 – 25 bar | -40 – 150°C | IP66 | -40 to 70 °C |
VEGA LEVEL SWitch – VEGAKON 61 FEATURES
FunctioN
The conductive measuring principle is used in the level measurement of conductive liquids. When immersed, the probe detects the product resistance. A low alternating current is detected by the integrated electronics and converted into an appropriate switching signal. The switching point is determined via the mounting position or the length of the respective probes.
Materials
The wetted parts of the instrument are made of stainless steel and the isolating ring of the probe is made of PTFE.
Housings
The level switch housing is made of plastic and has protection rating IP 66
ELECTRONICS
VEGA switches are available in different electronics versions. This level switch is available with a relay output (DPDT) and with transistor output (PNP).
 SIGNAL OUTPUT
- Relay (DPDT)
- Transistor
VEGA LEVEL SWITCHES – VEGAKON
VEGAKON level switches provide level measurement for conductive liquids and are used in all many applications such as overflow protection, pump control or dry run protection. Â A small alternating current begins to flow when the electrodes of the conductive level switch come in to contact with a conductive fluid. The electronics then triggers a switching command. VEGA is a global manufacturer of process and hazardous area instrumentation.
Thorne & Derrick provide Process Measurement and Instrumentation systems for level measurement, flow measurement, temperature measurement and pressure measurement.
Thorne & Derrick can provide expert technical advice, specification guidance and competitive quotations for VEGA sensors from stock. Contact us for support on industrial and hazardous area flow measurement.
VEGA Level Switches : Measurement of level, point level, pressure, flow and density
Thorne & Derrick provide Process Measurement and Instrumentation systems for level measurement, flow measurement, temperature measurement and pressure measurement.
VEGA Level Switch – VEGAKON 61 Conductive Level Switch – Brochure
Download
