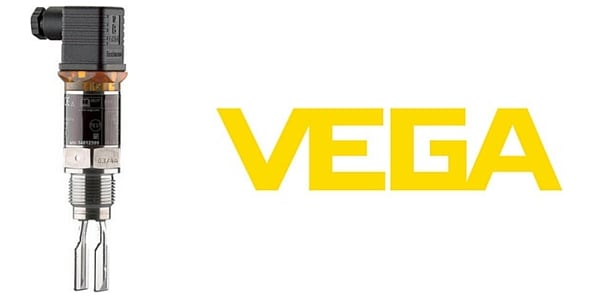

VEGA VEGASWING 51 Vibrating Level Switch
Level Switch VEGA VEGASWING 51
The VEGA VEGASWING 51 vibrating level switch is a universal level switch with small dimensions for liquid detection. The VEGASWING 51 is an economical solution with maximum reliability and safety, independent of the mounting position.
The VEGASWING 51 can be used as an empty or full detector and is approved for use as overfill protection, dry run protection and pump protection in vessels and pipelines.
VEGA VEGASWING 51Â Vibrating LEVELÂ Switch
PRODUCT SPECIFICATIONS
| Process Temperature (Standard) | Process Temperature (High Temperature Version) | Process Pressure | Level Sensor Protection Rating | Ambient Temperature |
| -40 … +100ºC | -40 … +150°C | -1 … +64 bar | IP67 IP66 IP 68 (0.2 bar) |
-40 to 70 °C |
VEGA LEVEL Switch – VEGASWING 51 FEATURES
FUNCTION
The heart of the sensor is the vibration drive by which the tuning fork is energized to vibrate at its resonance frequency. When covered with
medium, the frequency of the fork decreases.
This frequency change is processed by the integrated electronics and converted into a switching command.
With the tuning fork with only 38 mm length, the VEGASWING work reliably independent of the installation position in any liquid.
Pressure, temperature, foam, viscosity and the composition of the liquid do not influence the switching accuracy.
MATERIALS
Wetted Parts: Stainless steel 316L
Seal Material: Klingersil C-4400
HOUSING VERSIONS
316L and plastic PEI, IP67.
APPROVALS
- Ship
- Overfill protection
VEGA Level Measurement Instruments & Sensors include capacitive, hydrostatic, guided wave radar and ultrasonic sensors for the measurement of bulk liquids, solids and powders in safe, industrial and hazardous area industries.
Thorne & Derrick provide Process Measurement and Instrumentation systems for level measurement, flow measurement, temperature measurement and pressure measurement.
T&D provide expert technical advice, specification guidance and competitive quotations for VEGA sensors from stock. Contact us for support on industrial and hazardous area flow measurement.
âž¡ Did you know? T&D are Main Distributors for Micronics Flow Meters.
VEGA Level Switch VEGASWING 51 Vibrating Level Switch Specification
Download
