VEGA VEGASWING 66 Vibrating Level Switch
VEGA Level Switches
Level Switch VEGA VEGASWING 66
VEGA VEGASWING 66 vibrating level switch is a universal level switch for liquid detection within a wide range of applications. Available in a compact version or with a tube extension, the VEGASWING 66 detects reliably with millimetre accuracy to the level limit independent of the mounting position.
The VEGASWING 66 can be used within vessels, pipelines and steam generators as an empty or full detector.

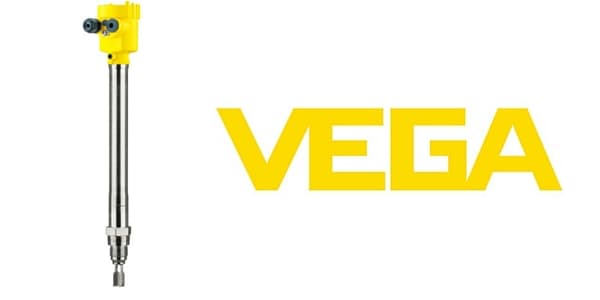

VEGA VEGASWING 66 Vibrating LEVELÂ Switch
PRODUCT SPECIFICATIONS
| Measuring Range – Distance | Process Temperature | Process Pressure | Level Sensor Protection Rating | Ambient Temperature | Hazardous Area ATEX
Level Switch |
| 3m | -196 – 450°C | -1 … 160 bar | IP66/IP68 (1 bar) IP66/IP67 IP65 |
-40 to 70 °C |  Yes, VEGA VEGASWING 66 is suitable for hazardous areas
(see ATEX download). |
VEGASWING 66 LEVEL SWITCH HAZARDOUS AREA CERTIFICATIONS
VEGASWING 66 vibrating level switch is available with hazardous area certifications to meet ATEX & IECEx directives for Zone 1 and Zone 2 installations.
ATEX & IECEX APPROVALS
ATEX II 1G, 1/2G, 2G Ex ia IIC T6
ATEX II 1/2G, 2G Ex d IIC T6
IEC Ex ia IIC T6
IEC Ex ia IIC T6 + Ship approval
IEC Ex d IIC T6
VEGA level switches are suitable for use in hazardous areas and their instruments also have various ship approvals such as e.g. DNV, GL, LRS or ABS.
VEGA LEVEL Switch – VEGASWING 66 FEATURES
Function
The heart of the sensor is the inductive drive by which the tuning fork is energized to vibrate at its resonance frequency. When covered with medium, the frequency of the fork decreases.
This frequency change is processed by the integrated electronics and converted into a switching command. With the tuning fork with only 40 mm length, the VEGASWING works reliably independent of the installation position in any liquid.
Pressure, temperature, foam, viscosity and the composition of the liquid do not influence the switching accuracy.
MATERIALs
Wetted Parts: Stainless steel 316L and Inconel 718
Housing Versions
Available in plastic, stainless steel or Aluminium IP67.
ELECTRONICS VERSIONS
- Relay (DPDT)
- Transistor (NPN/PNP)
- Two-wire
APPROVALS
- Ship
- Steam Boiler
- ATEX
- IEC
- CSA
- GOST
- SIL2
