VEGA VEGAWAVE 62 Vibrating Level Switch

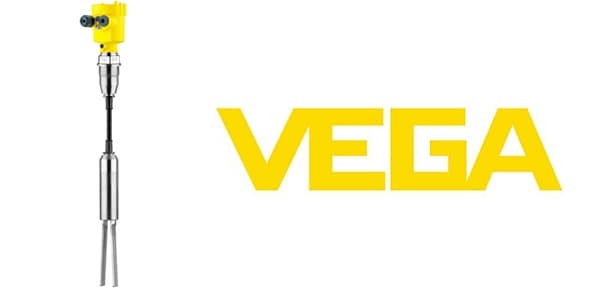

VEGA Level Switch - VEGAWAVE 62 Vibrating Level Switch

VEGA Level Switches

Level Switch VEGA VEGAWAVE 62

VEGA VEGAWAVE 62 is a vibrating level switch designed for universal use in powders and fine-grained bulk solids, reliably and accurately the minimum or maximum level.

The tuning fork of the VEGAWAVE 62 is ideal for use in either adhesive or abrasive products as well as bulk solids with very low density. The position of the switching point is determined through the length of the suspension cable.

VEGA VEGAWAVE 62 Vibrating LEVEL Switch

PRODUCT SPECIFICATIONS

Measuring Range – Distance

Process Temperature

Process Pressure

Level Sensor Protection Rating

Ambient Temperature

Hazardous Area ATEX

Level Switch

80m

-40 – 150°C

-1 … 6 bar

IP66/IP68 (0.2 bar)
IP66/IP67
IP66/IP68 (1 bar)

-40 to 80 °C

Yes, VEGA VEGAWAVE 62 is suitable for hazardous areas

ATEX Level Sensors

(see ATEX download).

VEGAWAVE 62 LEVEL SWITCH HAZARDOUS AREA CERTIFICATIONS

VEGAWAVE 62 vibrating level switch is available with hazardous area certifications to meet ATEX & IECEx directives for Zone 1 and Zone 2 installations.

ATEX & IECEX APPROVALS

ATEX II 1G, 1/2G, 2G Ex ia IIC T6

ATEX II 1G, 1/2G, 2G Ex ia IIC T6 + ATEX II 1/2D IP6X T* IEC Ex ia IIC T6

ATEX II 1D, 1/2D, 2D Ex tD IP66 T*

IEC Ex tD A20/21 IP66 T*, A21

VEGA level switches are suitable for use in hazardous areas and their instruments also have various ship approvals such as e.g. DNV, GL, LRS or ABS.

VEGA LEVEL Switch – VEGAWAVE 62 FEATURES

Function

With the VEGAWAVE 62 series, the tuning fork is used as sensor element. If the medium covers the tuning fork, the amplitude is damped. The electronics detects this damping and converts it into a switching command.

MATERIALs

Wetted Parts: Stainless steel 316L

Seal Material: Klingersil C-4400

Suspension Cable: PUR or FEP

Housing Versions

Available in plastic, stainless steel or Aluminium IP67.

ELECTRONICS VERSIONS

Relay (DPDT)
Contactless electronic switch
Transistor (NPN/PNP)
Two-wire
NAMUR

APPROVALS

ATEX
IEC
FM
CSA
GOST
SIL2

VEGA Level Measurement Instruments & Sensors include capacitive, hydrostatic, guided wave radar and ultrasonic sensors for the measurement of bulk liquids, solids and powders in safe, industrial and hazardous area industries.

Thorne & Derrick provide Process Measurement and Instrumentation systems for level measurement, flow measurement, temperature measurement and pressure measurement.

T&D provide expert technical advice, specification guidance and competitive quotations for VEGA sensors from stock. Contact us for support on industrial and hazardous area flow measurement.
